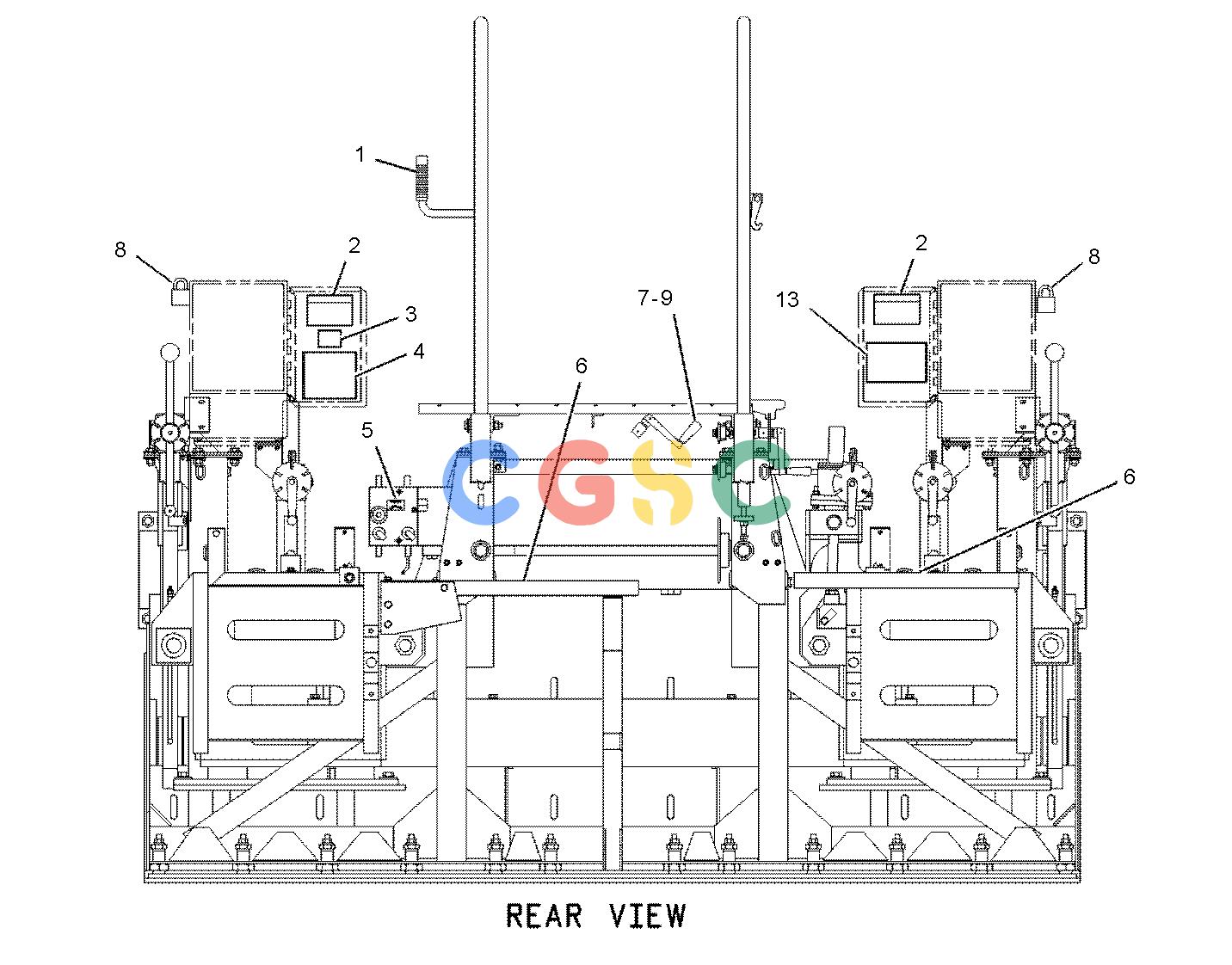

卡特零件查询（8） 8I-0469: FINISH GP
广数供应链运营团队, 17 02月, 2025，浏览：
552 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7X-9918 | [4] | GRIP-HANDLE | |
| 2. | 081-9651 | [2] | FILM-WARNING(LIGHTING SCREED BURNER) | |
| 3. | 8I-0728 | [1] | FILM-NOTICE(SCREED OVERHEAT)(NOTICE SCREED OVERHEAT) | |
| 4. | 102-2708 | [1] | FILM(SCREED ADJUSTMENT)(EXTENDER SCREED) | |
| 5. | 102-2727 | [1] | FILM-SCREED VALVE INCREASE | |
| 6. | 081-9654 | [2] | FILM-NOTICE(SCREED RETRACT) | |
| 7. | 5S-7349 | [1] | BOLT(1/4-20X0.5-IN) | |
| | 8T-7566 | [2] | PIN-SPRING | |
| | 102-2714 | [1] | HANDLE | |
| | 8I-0280 | [1] | KEEPER | |
| 8. | 5P-8502 | [2] | PADLOCK GP | |
| | | | (EACH INCLUDES) |
| | 5P-8500A | [1] | KEY | |
| 9. | 3S-2093 | [2] | STRAP-CABLE | |
| 10. | 104-1787 | [2] | FILM(EXTENDAMAT)(8-16B) | |
| 11. | 168-8389 | [4] | TACK(METAL)(NO.6) | |
| 12. | 187-8168 | [1] | PLATE-SERIAL NUMBER | |
| 13. | 228-7406 | [1] | FILM-INSTRUCTION(BURNER OPERATION)(BURNER OP) | |
| | A | | NOT PART OF THIS GROUP |
