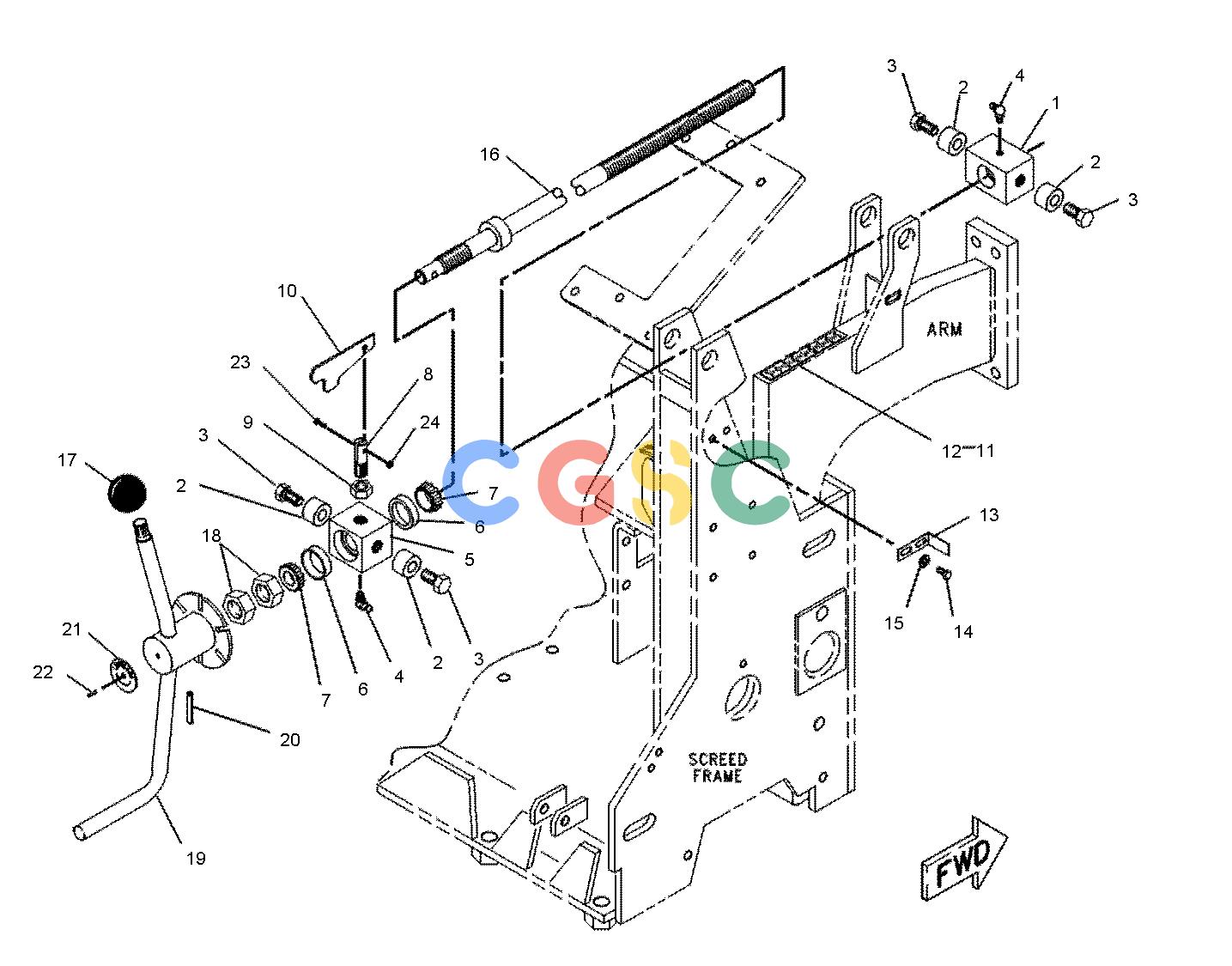

卡特零件查询（8） 119-1408: CONTROL GP-THICKNESS
广数供应链运营团队, 17 02月, 2025，浏览：
390 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0901 | [2] | TRUNNION | |
| 2. | 8I-0902 | [8] | SPACER (0.75X1.50X1-IN THK) | |
| 3. | 1A-0075 | [8] | BOLT (3/4-16X1.75-IN) | |
| 4. | 3B-8488 | [4] | FITTING-GREASE | |
| 5. | 8I-0903 | [2] | BLOCK-BEARING | |
| 6. | 3P-8680 | [4] | CUP-BEARING | |
| 7. | 3P-8681 | [4] | CONE-BEARING | |
| 8. | 8I-0364 | [2] | ROD | |
| 9. | 1D-5120 | [2] | NUT-JAM (3/4-16-THD) | |
| 10. | 8I-0271 | [2] | LOCKOUT | |
| 11. | 4B-4161 | [4] | SCREW-DRIVE (NO 6X3/8-IN) | |
| 12. | 8I-0904 | [2] | SCALE-THICKNESS | |
| 13. | 8I-0358 | [2] | POINTER | |
| 14. | 5M-3062 | [4] | BOLT (3/8-16X0.75-IN) | |
| 15. | 8T-4896 | [4] | WASHER-HARD (10.2X18.5X2.5-MM THK) | |
| 16. | 119-1409 | [2] | SHAFT AS | |
| 17. | 8I-0911 | [2] | KNOB | |
| 18. | 1D-6306 | [4] | NUT (1-8-THD) | |
| 19. | 8I-0352 | [2] | HANDLE AS | |
| 20. | 1J-8136 | [2] | PIN-SPRING | |
| 21. | 8I-0910 | [2] | FILM-INSTRUCTION (MAT THICKNESS, CCW TO INCREASE) | |
| 22. | 3F-5535 | [2] | SCREW-DRIVE (NO 10X0.375-IN) | |
| 23. | 8T-8908 | [2] | BOLT (1/4-20X1-IN) | |
| 24. | 2D-6235 | [2] | LOCKNUT (1/4-20-THD) | |
| | | | QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH AND RH SIDES |
| | | | |
