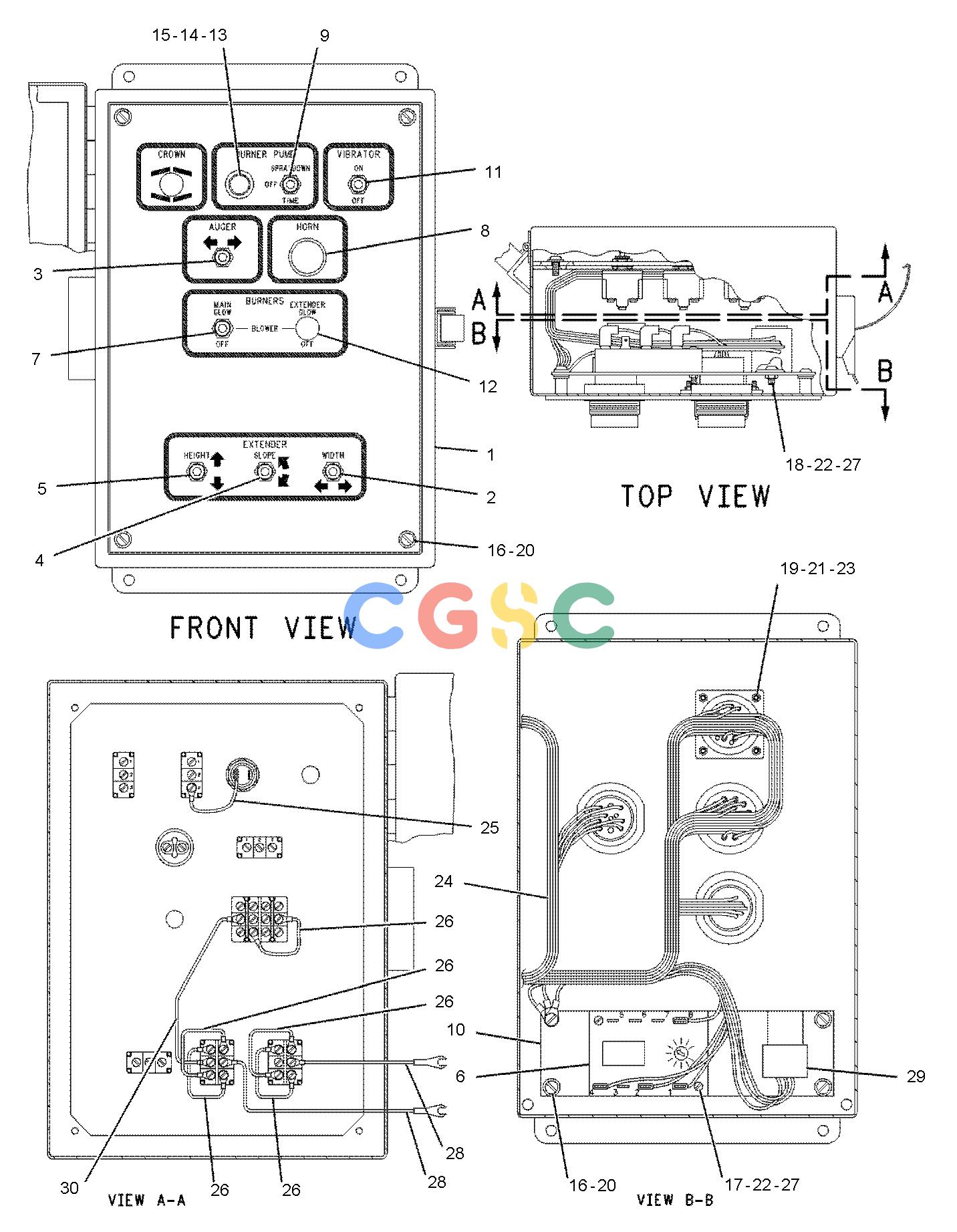

卡特零件查询（8） 129-2384: BOX GP-SCREED CONTROL
广数供应链运营团队, 17 02月, 2025，浏览：
738 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 106-3446 | [1] | BOX | |
| 2. | 9G-0011 | [1] | SWITCH AS-TOGGLE (EXTENDER WIDTH) | |
| 3. | 9G-0011 | [1] | SWITCH AS-TOGGLE (AUGER FWD/REV) | |
| | | | (EACH INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX (15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE (6-32X0.25-IN) | |
| 4. | 7N-8008 | [1] | SWITCH AS-TOGGLE (EXTENDER SLOPE) | |
| 5. | 7N-8008 | [1] | SWITCH AS-TOGGLE (EXTENDER HEIGHT) | |
| | | | (EACH INCLUDES) |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX (15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE (6-32X0.25-IN) | |
| 6. | 120-0549 | [1] | RELAY-TIME DELAY | |
| 7. | 8C-2034 | [1] | SWITCH (BURNER MAIN GLOW) | |
| 8. | 3D-9718 | [1] | SWITCH AS-PUSH BUTTON (HORN) | |
| | 6V-8376 | [2] | SCREW-MACHINE (8-32X0.25-IN) | |
| | 6V-8832 | [1] | NUT (5/8-32-THD) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 9. | 1V-6652 | [1] | SWITCH GP-TOGGLE (SPRAYDOWN PUMP ON/OFF) | |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX (15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE (6-32X0.25-IN) | |
| 10. | 104-4714 | [1] | PLATE | |
| 11. | 8D-2676 | [1] | SWITCH AS-TOGGLE (VIBRATOR ON/OFF) | |
| | 3L-8187 | [2] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX (15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [2] | SCREW-MACHINE (6-32X0.25-IN) | |
| 12. | 3V-4694 | [2] | PLUG-BUTTON | |
| 13. | 9D-3127 | [1] | BASE AS-INDICATOR LIGHT | |
| | 6V-8367 | [1] | LOCKWASHER | |
| | 6V-8382 | [1] | NUT-HEX (11/16-27-THD) | |
| 14. | 9D-2868 | [1] | LENS-RED | |
| 15. | 8L-9801 | [1] | LAMP (12-VOLT) | |
| 16. | 5P-7162 | [8] | SCREW-MACHINE (10-32X0.5-IN) | |
| 17. | 6V-7697 | [2] | SCREW-MACHINE (8-32X1.25-IN) | |
| 18. | 7S-1197 | [1] | SCREW-MACHINE (8-32X0.5-IN) | |
| 19. | 9X-6257 | [4] | SCREW-MACHINE (6-32X0.625-IN) | |
| 20. | 4B-4274 | [8] | WASHER (5.5X13X1.2-MM THK) | |
| 21. | 4B-5324 | [4] | WASHER (3.9X9.6X1.2-MM THK) | |
| 22. | 6D-5801 | [3] | LOCKNUT (8-32-THD) | |
| 23. | 7D-6922 | [4] | LOCKNUT (6-32-THD) | |
| 24. | 120-8473 | [1] | HARNESS AS | |
| | 3T-0204 | [1] | RECEPTACLE AS-CONNECTOR (20-PIN) | |
| | 7G-7917 | [8] | PLUG-SEAL | |
| | 7G-7918 | [1] | PLUG-SEAL | |
| | 7G-7920 | [1] | PLUG-SEAL | |
| | 7G-8237 | [1] | RECEPTACLE AS | |
| | 8N-1530 | [1] | RECEPTACLE AS (12-PIN) | |
| | 8N-1535 | [3] | BELL AS-END | |
| | 8N-1537 | [3] | LOCKWASHER | |
| | 111-6795 | [1] | HOUSING-RELAY | |
| | 111-6816 | [1] | LOCK | |
| 25. | 106-7134 | [1] | WIRE AS | |
| 26. | 105-6610 | [5] | WIRE AS | |
| 27. | 4B-4863 | [3] | WASHER (4.7X11X1.2-MM THK) | |
| 28. | 106-0526 | [2] | WIRE AS | |
| 29. | 3E-9362 | [1] | RELAY AS (12-VOLT) | |
| 30. | 106-0527 | [1] | WIRE AS | |
