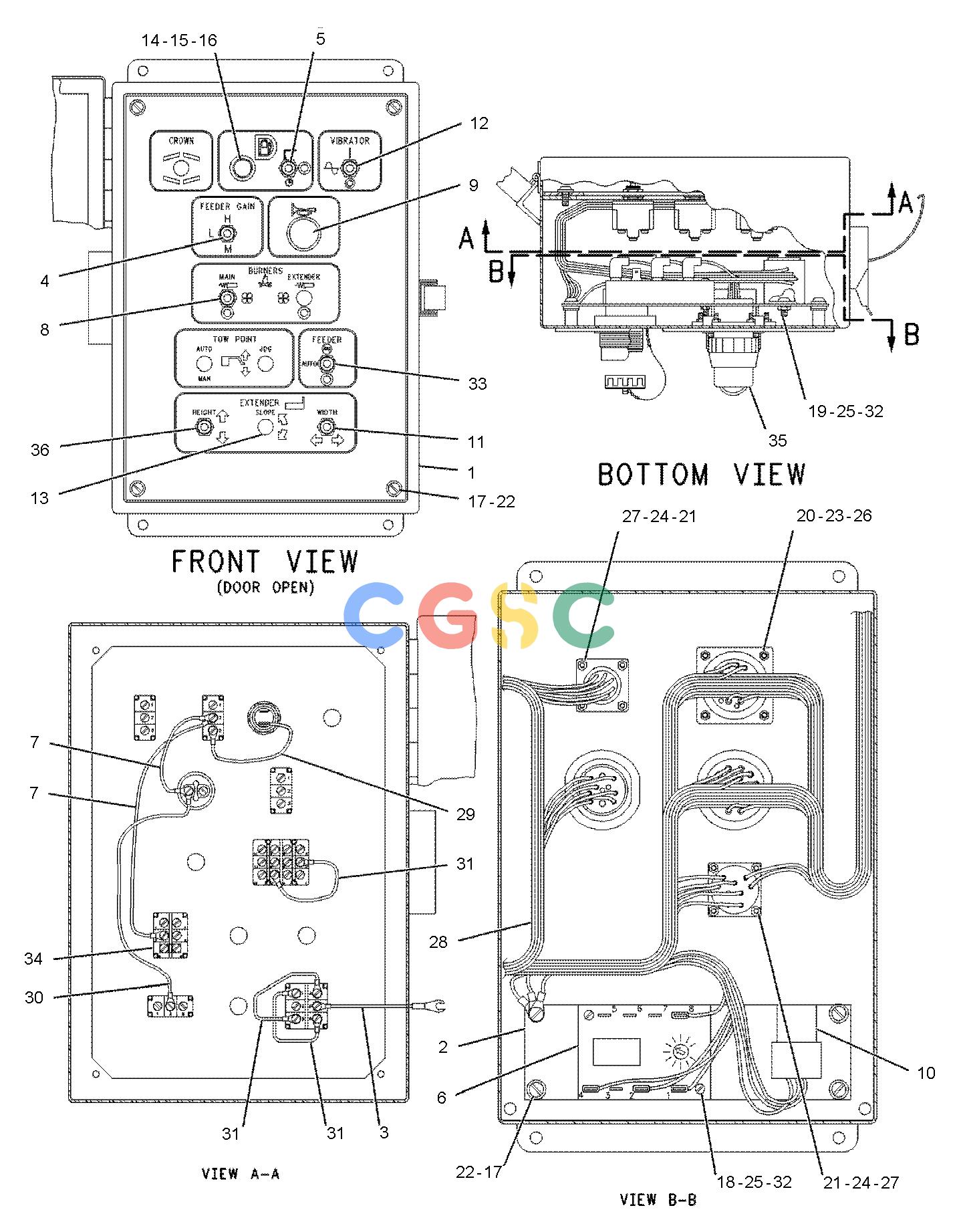

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 104-3661 | [1] | BOX | |
| 2. | 104-4714 | [1] | PLATE | |
| 3. | 106-0526 | [1] | WIRE AS | |
| 4. | 1V-6652 | [1] | SWITCH GP-TOGGLE (FEEDER GAIN L/M/H) | |
| 5. | 1V-6652 | [1] | SWITCH GP-TOGGLE (SPRAYDOWN PUMP ON/OFF) | |
| (EACH GP INCLUDES) | ||||
| 3L-8187 | [3] | LOCKWASHER | ||
| 6T-3631 | [2] | NUT-HEX (15/32-32-THD) | ||
| 6T-3632 | [1] | LOCKWASHER | ||
| 6T-3633 | [1] | RING-LOCKING | ||
| 6V-8374 | [3] | SCREW-MACHINE (6-32X0.25-IN) | ||
| 6. | 120-0549 | [1] | RELAY-TIME DELAY | |
| 7. | 105-7840 | [2] | WIRE AS | |
| 8. | 8C-2034 | [1] | SWITCH (MAIN BURNER GLOW) | |
| 9. | 3D-9718 | [1] | SWITCH AS-PUSH BUTTON | |
| 6V-8376 | [2] | SCREW-MACHINE (8-32X0.25-IN) | ||
| 6V-8832 | [1] | NUT (5/8-32-THD) | ||
| 9B-7233 | [2] | LOCKWASHER | ||
| 10. | 3E-9362 | [1] | RELAY AS (12-VOLT) | |
| 11. | 9G-0011 | [1] | SWITCH AS-TOGGLE (EXTENDER WIDTH) | |
| 3L-8187 | [3] | LOCKWASHER | ||
| 6T-3631 | [2] | NUT-HEX (15/32-32-THD) | ||
| 6T-3632 | [1] | LOCKWASHER | ||
| 6T-3633 | [1] | RING-LOCKING | ||
| 6V-8374 | [3] | SCREW-MACHINE (6-32X0.25-IN) | ||
| 12. | 8D-2676 | [1] | SWITCH AS-TOGGLE (VIBRATOR ON/OFF) | |
| 3L-8187 | [2] | LOCKWASHER | ||
| 6T-3631 | [2] | NUT-HEX (15/32-32-THD) | ||
| 6T-3632 | [1] | LOCKWASHER | ||
| 6T-3633 | [1] | RING-LOCKING | ||
| 6V-8374 | [2] | SCREW-MACHINE (6-32X0.25-IN) | ||
| 13. | 3V-4694 | [5] | PLUG-BUTTON | |
| 14. | 9D-3127 | [1] | BASE AS-INDICATOR LIGHT | |
| 6V-8367 | [1] | LOCKWASHER | ||
| 6V-8382 | [1] | NUT-HEX (11/16-27-THD) | ||
| 15. | 9D-2868 | [1] | LENS-RED | |
| 16. | 8L-9801 | [1] | LAMP (12-VOLT) | |
| 17. | 5P-7162 | [8] | SCREW-MACHINE (10-32X0.5-IN) | |
| 18. | 6V-7697 | [2] | SCREW-MACHINE (8-32X1.25-IN) | |
| 19. | 7S-1197 | [1] | SCREW-MACHINE (8-32X0.5-IN) | |
| 20. | 9X-6257 | [4] | SCREW-MACHINE (6-32X0.625-IN) | |
| 21. | 6V-2480 | [8] | SCREW (4-40X0.5-IN) | |
| 22. | 4B-4274 | [8] | WASHER (5.5X13X1.2-MM THK) | |
| 23. | 4B-5324 | [4] | WASHER (3.9X9.6X1.2-MM THK) | |
| 24. | 092-4917 | [8] | WASHER | |
| 25. | 6D-5801 | [3] | LOCKNUT (8-32-THD) | |
| 26. | 4B-2041 | [4] | NUT (6-32-THD) | |
| 27. | 6B-4540 | [8] | NUT (4-40-THD) | |
| 28. | 120-8472 | [1] | HARNESS AS | |
| 3T-0204 | [1] | RECEPTACLE AS-CONNECTOR (20-PIN) | ||
| 7G-7917 | [4] | PLUG-SEAL | ||
| 7G-7918 | [1] | PLUG-SEAL | ||
| 7G-8237 | [1] | RECEPTACLE AS | ||
| 7R-3029 | [1] | CAP-DUST | ||
| 8N-1535 | [2] | BELL AS-END | ||
| 8N-1537 | [2] | LOCKWASHER | ||
| 111-6795 | [1] | HOUSING-RELAY | ||
| 111-6816 | [1] | LOCK | ||
| 29. | 105-8036 | [1] | WIRE AS | |
| 30. | 105-8037 | [1] | WIRE AS | |
| 31. | 105-6610 | [3] | WIRE AS | |
| 32. | 4B-4863 | [3] | WASHER (4.7X11X1.2-MM THK) | |
| 33. | 081-7041 | [1] | SWITCH AS-TOGGLE (FEEDER AUTO/MANUAL) | |
| 34. | 9N-9800 | [1] | JUMPER-TERMINAL | |
| 35. | 122-6123 | [1] | HARNESS AS | |
| 8T-8737 | [7] | PLUG-SEAL | ||
| 9W-0847 | [1] | PLUG-CONNECTOR | ||
| 36. | 7N-8008 | [1] | SWITCH AS-TOGGLE (EXTENDER HEIGHT) | |
| 3L-8187 | [6] | LOCKWASHER | ||
| 6T-3631 | [2] | NUT-HEX (15/32-32-THD) | ||
| 6T-3632 | [1] | LOCKWASHER | ||
| 6T-3633 | [1] | RING-LOCKING | ||
| 6V-8374 | [6] | SCREW-MACHINE (6-32X0.25-IN) | ||
