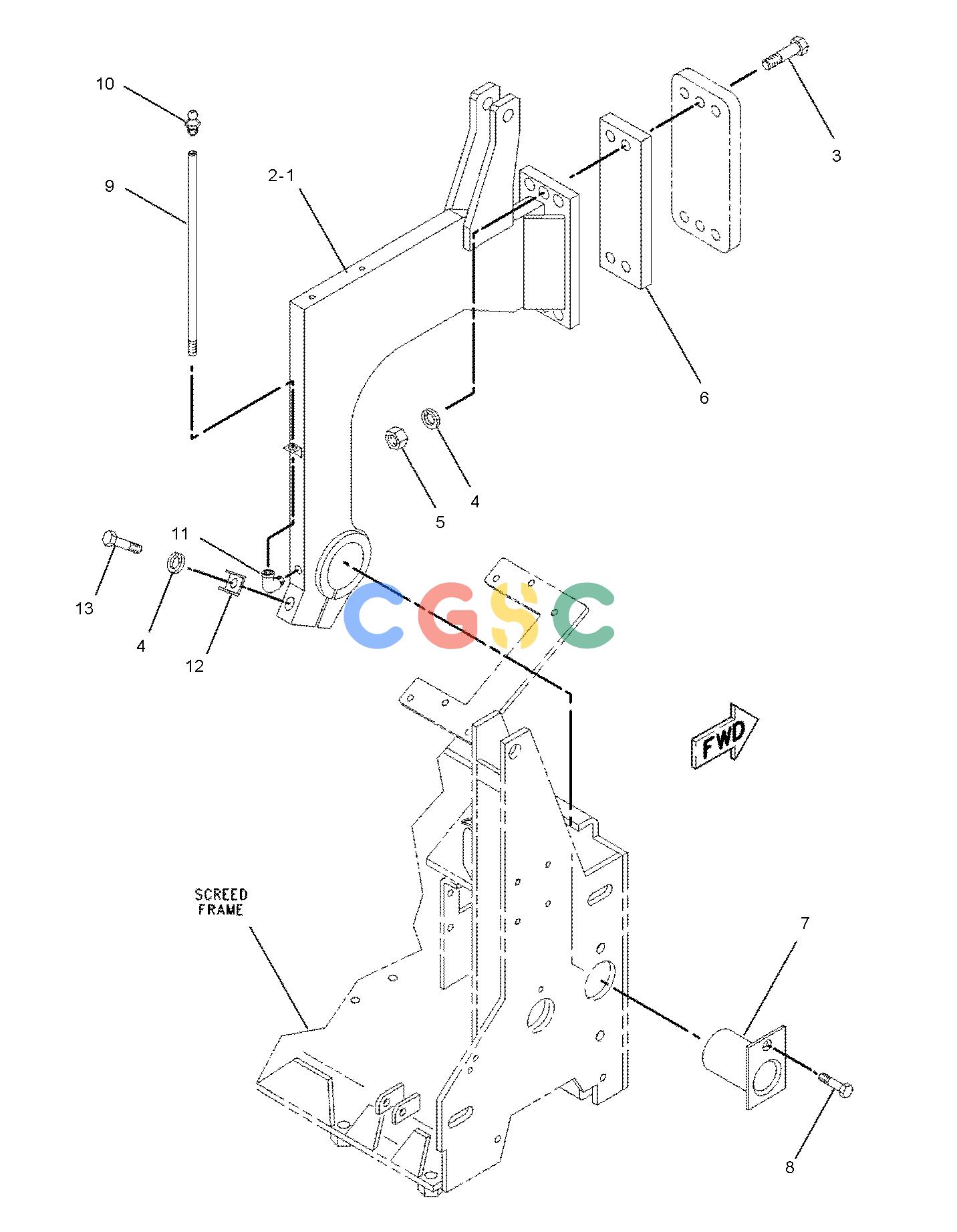

卡特零件查询（8） 134-1721: ARM GP-DROP
广数供应链运营团队, 17 02月, 2025，浏览：
1012 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 134-1731 | [1] | BRACKET AS | |
| 2. | 134-1730 | [1] | BRACKET AS | |
| 3. | 8C-8842 | [8] | BOLT (3/4-10X4-IN) | |
| 4. | 8T-4994 | [10] | WASHER-HARD (20X36.5X3.5-MM THK) | |
| 5. | 6V-8182 | [8] | NUT (3/4-10-THD) | |
| 6. | 8I-0610 | [2] | BAR-SPACER | |
| 7. | 112-5399 | [2] | PIN AS-PIVOT | |
| 8. | 8T-9383 | [2] | BOLT (1/2-13X0.75-IN) | |
| 9. | 100-7868 | [2] | NIPPLE-PIPE | |
| 10. | 5P-9982 | [2] | FITTING-GREASE | |
| 11. | 3B-6552 | [2] | ELBOW-PIPE | |
| 12. | 8I-0368 | [2] | LOCK-TAB | |
| 13. | 8T-9311 | [2] | BOLT (3/4-10X4.5-IN) | |
| | | | QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH AND RH SIDES |
| | | | |
