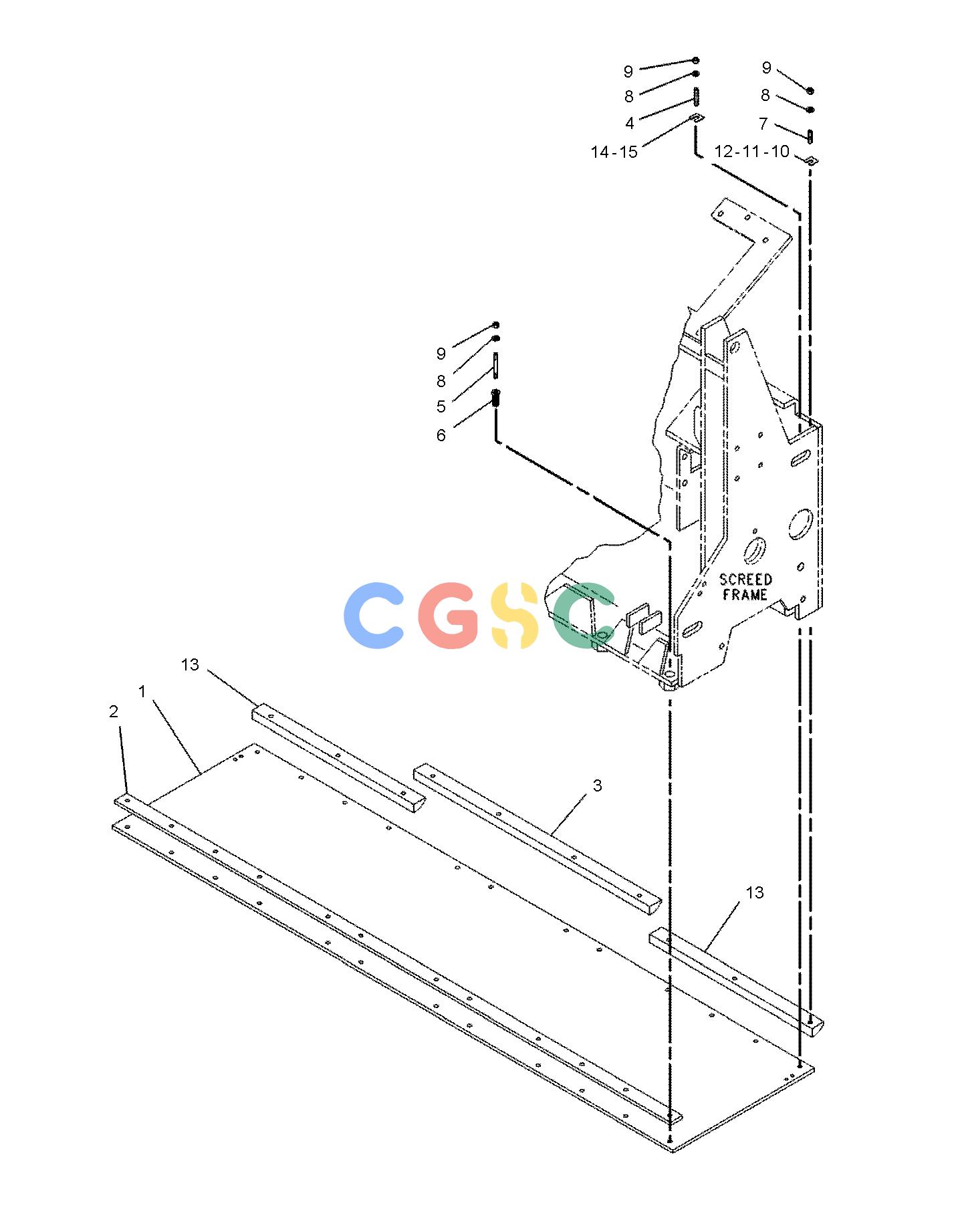

卡特零件查询（8） 110-0995: PLATE GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
431 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | | [1] | PLATE |
| 2. | 8I-0208 | [1] | BAR-SPACER | |
| 3. | 8I-0179 | [1] | BAR-NOSE | |
| 4. | 8I-0185 | [12] | STUD (1/2-13X2.75-IN) | |
| 5. | 8I-0212 | [12] | STUD (1/2-13X5-IN) | |
| 6. | 8I-0184 | [12] | NUT-ADJUSTMENT (1-1/4-12-THD) | |
| 7. | 8I-0189 | [10] | STUD (1/2-13X1.75-IN) | |
| 8. | 5P-1076 | [34] | WASHER-HARD (13.5X30X4-MM THK) | |
| 9. | 6V-8188 | [34] | NUT (1/2-13 THD) | |
| 10. | 8I-0888B | [2] | SHIM (0.01-IN THK) | |
| 11. | 8I-0889B | [10] | SHIM (0.02-IN THK) | |
| 12. | 8I-0890B | [1] | SHIM (0.064-IN THK) | |
| 13. | 8I-0181 | [2] | BAR-NOSE | |
| 14. | 129-8816B | [2] | SHIM (0.01-IN THK) | |
| 15. | 129-8817B | [10] | SHIM (0.02-IN THK) | |
| | B | | USE AS REQUIRED |
