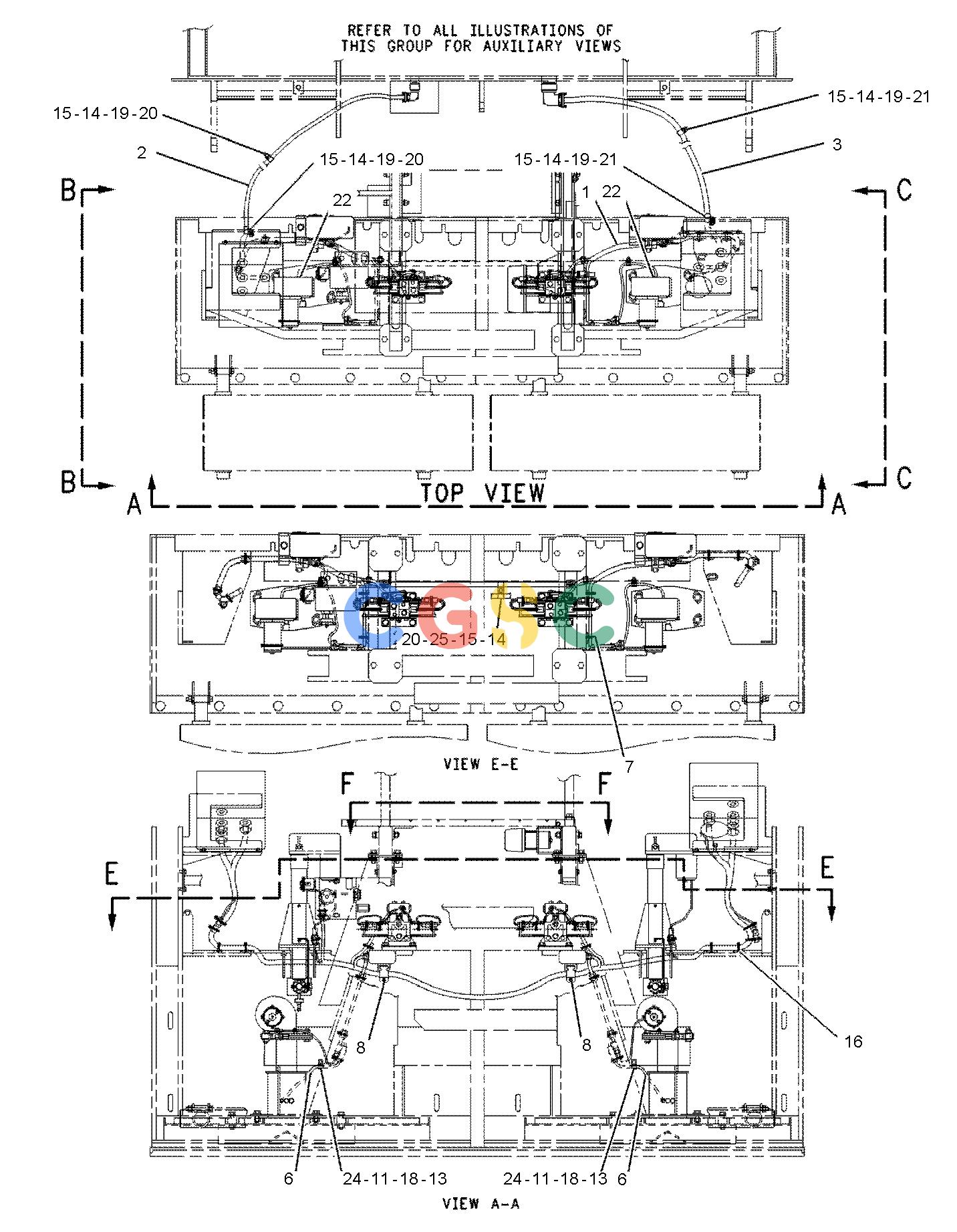

卡特零件查询（8） 131-2130: WIRING GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
140 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 131-2131 | [1] | HARNESS AS-POWER | |
| 2. | 109-0328 | [1] | CABLE AS | |
| 3. | 119-1574 | [1] | CABLE AS-CONTROL | |
| 4. | 144-8536Y | [1] | BOX GP-SCREED CONTROL(LH) | |
| 5. | 129-5100Y | [1] | BOX GP-SCREED CONTROL(RH) | |
| 6. | 103-7346 | [2] | WIRE AS | |
| 7. | 3S-2093 | [41] | STRAP-CABLE | |
| 8. | 077-8184 | [4] | CLAMP | |
| 9. | 3V-4694 | [4] | PLUG-BUTTON | |
| 10. | 6V-8185 | [2] | NUT(1/4-20-THD) | |
| 11. | 8T-4205 | [14] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 12. | 7T-0969 | [1] | HORN AS(24-VOLT, LOW TONE) | |
| | 8C-7581M | [2] | SCREW-MACHINE(M4X0.7X8-MM) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 13. | 4M-5281 | [2] | BOLT(1/4-20X0.75-IN) | |
| 14. | 6V-8189 | [6] | NUT(5/16-18-THD) | |
| 15. | 8T-4224 | [7] | WASHER-HARD(8.8X16X2-MM THK) | |
| 16. | 7K-1181 | [12] | STRAP-CABLE | |
| 17. | 8T-8908 | [8] | BOLT(1/4-20X1-IN) | |
| 18. | 2D-6235 | [10] | LOCKNUT(1/4-20-THD) | |
| 19. | 6V-8918 | [4] | BOLT(5/16-18X1.25-IN) | |
| 20. | 8M-2773 | [4] | CLIP(LOOP) | |
| 21. | 7C-4354 | [2] | CLIP | |
| 22. | 141-9273 | [2] | GLOW PLUG(24-VOLT) | |
| 23. | 7X-0268 | [2] | BOLT(1/4-20X3.5-IN) | |
| 24. | 2V-3216 | [4] | CLIP | |
| 25. | 4M-6425 | [1] | BOLT(5/16-18X1-IN) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
