Pos.	Part No	Qty	Parts name

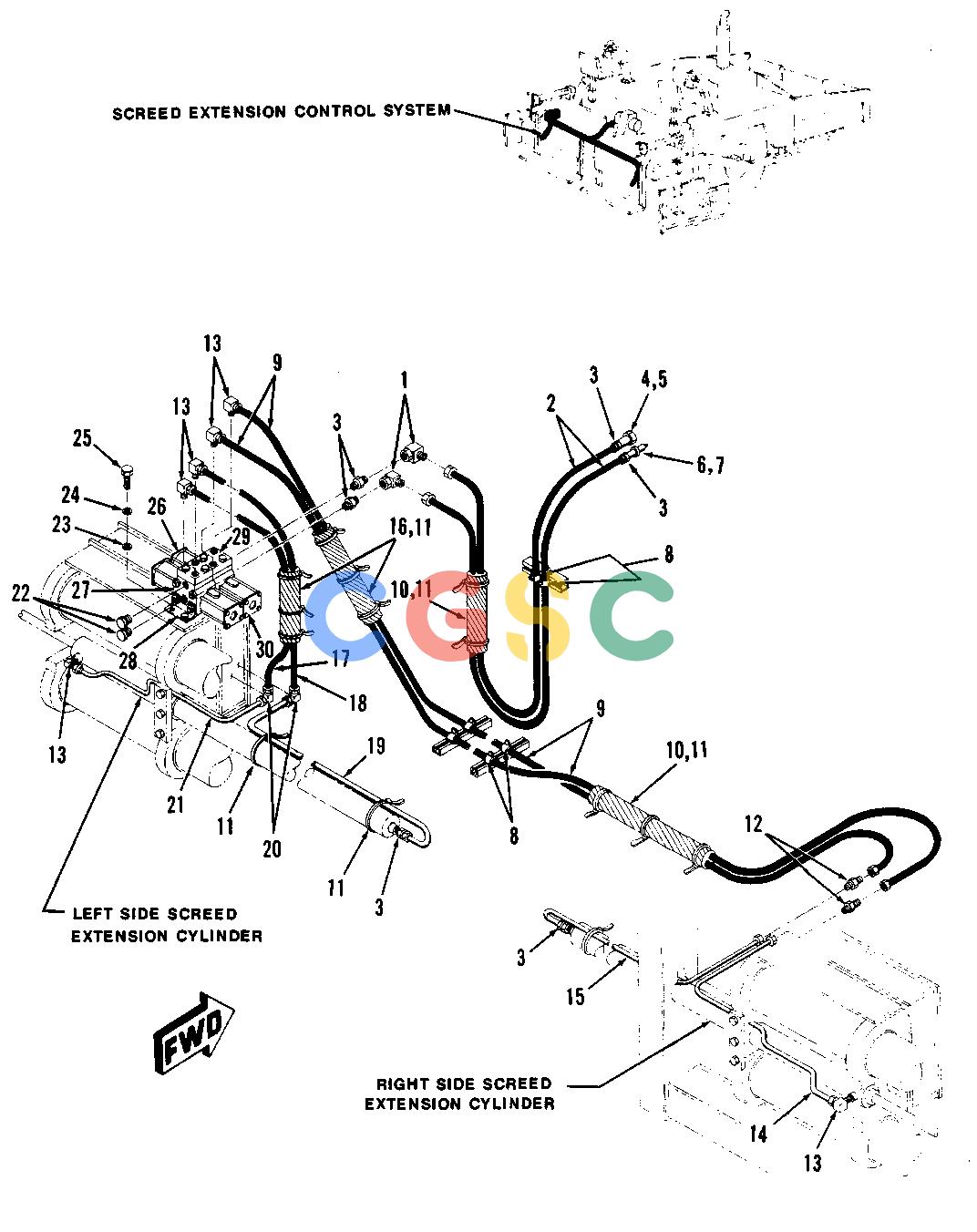

		[1]	SCREED EXTENSION CONTROL PLUMBING
1.	7K-9197	[2]	ELBOW, 90 DEG SWIVEL, 1/4IN. J.I.C.
2.		[2]	HOSE ASSEMBLY, 1/4IN. J.I.C. X 78IN.
3.	4S-6399	[6]	STR. CONNECTOR, 1/4IN. J.I.C. X 1/4IN. N.P.T.
4.		[1]	QUICK DISCONNECT, COUPLING
5.		[1]	DUST PLUG
6.		[1]	QUICK DISCONNECT, NIPPLE
7.		[1]	DUST CAP
8.		[6]	CLAMP, HYDRA ZORB
9.		[2]	HOSE ASSEMBLY, 1/4IN. J.I.C. X 96IN.
10.		[2]	COVER, RUBBER
11.		[27]	CABLE TIE
12.	3J-7355	[2]	STR. CONNECTOR, 1/4IN. J.I.C. X 1/4IN. J.I.C.
13.	6K-1972	[6]	ELBOW, 90 DEG, 1/4IN. J.I.C. X 1/4IN. N.P.T.
14.		[1]	TUBE ASSEMBLY, 1/4IN. J.I.C.
15.		[1]	TUBE ASSEMBLY, 1/4IN. J.I.C.
16.		[2]	COVER, RUBBER
17.		[1]	HOSE ASSEMBLY, 1/4IN. J.I.C. X 16IN.
18.		[1]	HOSE ASSEMBLY, 1/4IN. J.I.C. X 18IN.
19.		[1]	TUBE ASSEMBLY, 1/4IN. J.I.C.
20.		[2]	ELBOW, 90 DEG 1/4IN. J.I.C. X 1/4IN. J.I.C.
21.		[1]	TUBE ASSEMBLY, 1/4IN. J.I.C.
22.		[2]	PLUG, 1/4IN. N.P.T.
23.		[4]	FLATWASHER, 5/16IN.
24.	3B-4505	[4]	LOCKWASHER, 5/16IN.
25.		[4]	BOLT, HEX. HD., 5/16IN.-18 N.C. X 5/8IN.
26.		[1]	VALVE BANK (INCLUDES ITEMS 27 THRU 30)
27.		[2]	VALVE, 4-WAY
28.		[1]	STACKING KIT (INCLUDES BOLTS, NUTS AND MOUNTING ANGLES)
29.		[2]	LOCKING VALVE
30.		[4]	SOLENOID ASSEMBLY, 12 V.D.C.
