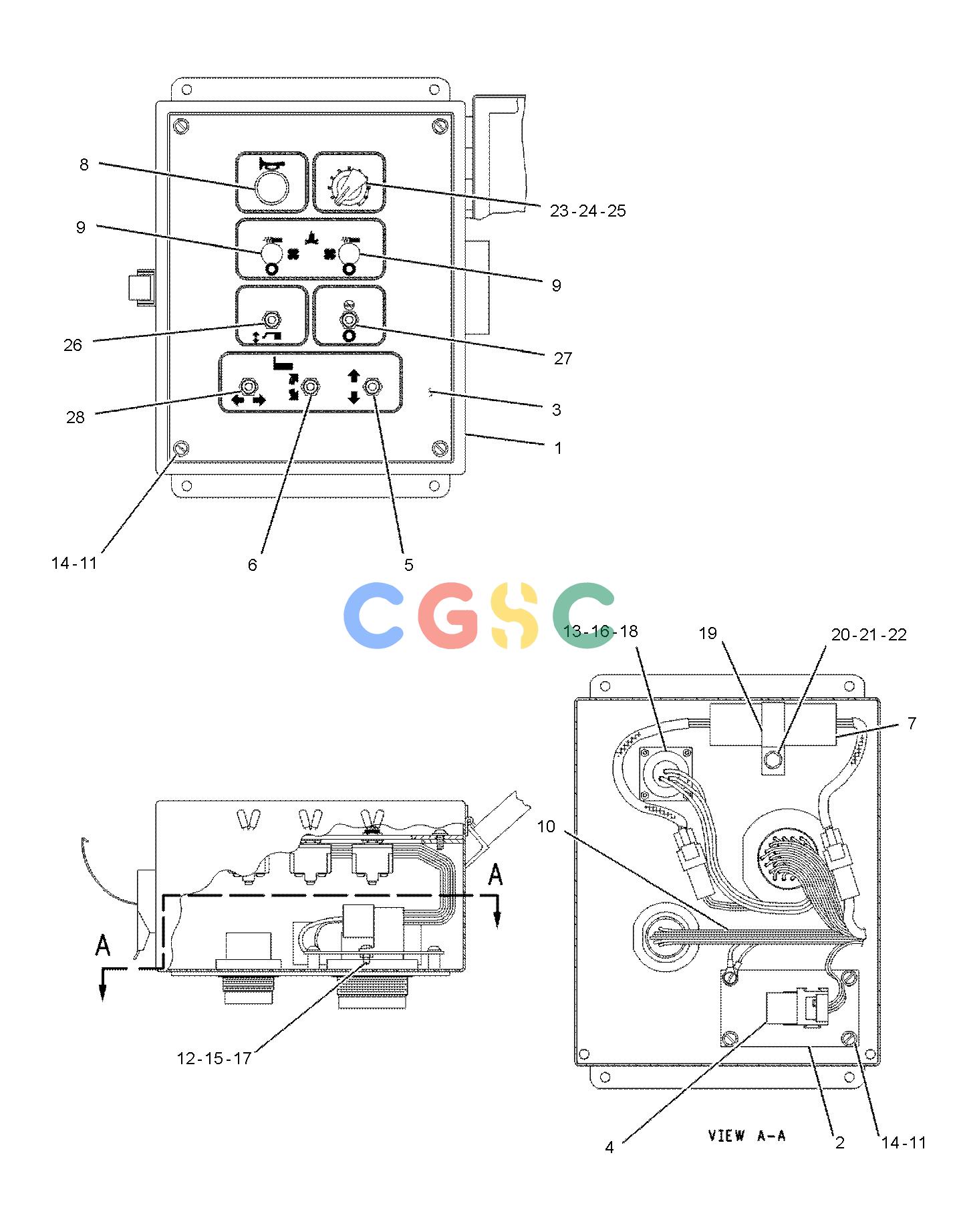

卡特零件查询（8-16B） 146-8176: BOX GP-SCREED CONTROL
广数供应链运营团队, 17 02月, 2025，浏览：
700 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 129-2395 | [1] | BOX(LH) | |
| 2. | 109-8136 | [1] | PLATE | |
| 3. | 111-7208 | [1] | PLATE(LH) | |
| 4. | 3E-6477 | [1] | RELAY AS(24-VOLT) | |
| 5. | 7N-8008 | [1] | SWITCH AS-TOGGLE(EXTENDER HEIGHT) | |
| 6. | 7N-8008 | [1] | SWITCH AS-TOGGLE(EXTENDER SLOPE) | |
| | | | (EACH GP INCLUDES) |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| 7. | 122-9303Y | [1] | BUFFER GP-SENSOR(500-HZ PWM) | |
| 8. | 3D-9718 | [1] | SWITCH AS-PUSH BUTTON(HORN) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 6V-8832 | [1] | NUT(5/8-32-THD) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 9. | 3V-4694 | [2] | PLUG-BUTTON | |
| 10. | 146-8177 | [1] | HARNESS AS | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | 3T-3410 | [1] | RECEPTACLE AS-CONNECTOR(37-PIN) | |
| | 7G-7917 | [13] | PLUG-SEAL | |
| | 8N-1523 | [1] | LOCKWASHER | |
| | 8N-1534 | [1] | RECEPTACLE AS-CONNECTOR(20-PIN) | |
| | 8N-1537 | [1] | LOCKWASHER | |
| | 8T-8737 | [1] | PLUG-SEAL | |
| | 111-6795 | [1] | HOUSING-RELAY | |
| | 111-6816 | [1] | LOCK | |
| | 135-3477 | [1] | RECEPTACLE AS-CONNECTOR(3-PIN) | |
| 11. | 5P-7162 | [8] | SCREW-MACHINE(10-32X0.5-IN) | |
| 12. | 7S-1197 | [1] | SCREW-MACHINE(8-32X0.5-IN) | |
| 13. | 9X-6257 | [4] | SCREW-MACHINE(6-32X0.625-IN) | |
| 14. | 4B-4274 | [8] | WASHER(5.5X13X1.2-MM THK) | |
| 15. | 4B-4863 | [1] | WASHER(4.7X11X1.2-MM THK) | |
| 16. | 4B-5324 | [4] | WASHER(3.9X9.6X1.2-MM THK) | |
| 17. | 6D-5801 | [1] | LOCKNUT(8-32-THD) | |
| 18. | 7D-6922 | [4] | LOCKNUT(6-32-THD) | |
| 19. | 4S-4455 | [1] | CLIP | |
| 20. | 4M-0061 | [1] | BOLT(5/16-18X0.75-IN) | |
| 21. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 22. | 3E-9860 | [1] | LOCKNUT(5/16-18-THD) | |
| 23. | 134-6048 | [1] | POTENTIOMETER AS | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813BE | | SLEEVE | |
| 24. | 1P-6509 | [1] | KNOB | |
| 25. | 7C-4550 | [1] | SEAL(ROTATING SHAFT) | |
| 26. | 9G-0011 | [1] | SWITCH AS-TOGGLE(TOW POINT JOG) | |
| 27. | 9G-0011 | [1] | SWITCH AS-TOGGLE(FEEDER AUTO/MANUAL) | |
| 28. | 9G-0011 | [1] | SWITCH AS-TOGGLE(EXTENDER WIDTH) | |
| | | | (EACH GP INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | Y | | SEPARATE ILLUSTRATION |
