卡特零件查询（8-16B） 300-0504: VALVE GP-SOLENOID
广数供应链运营团队, 18 02月, 2025，浏览：
295 次

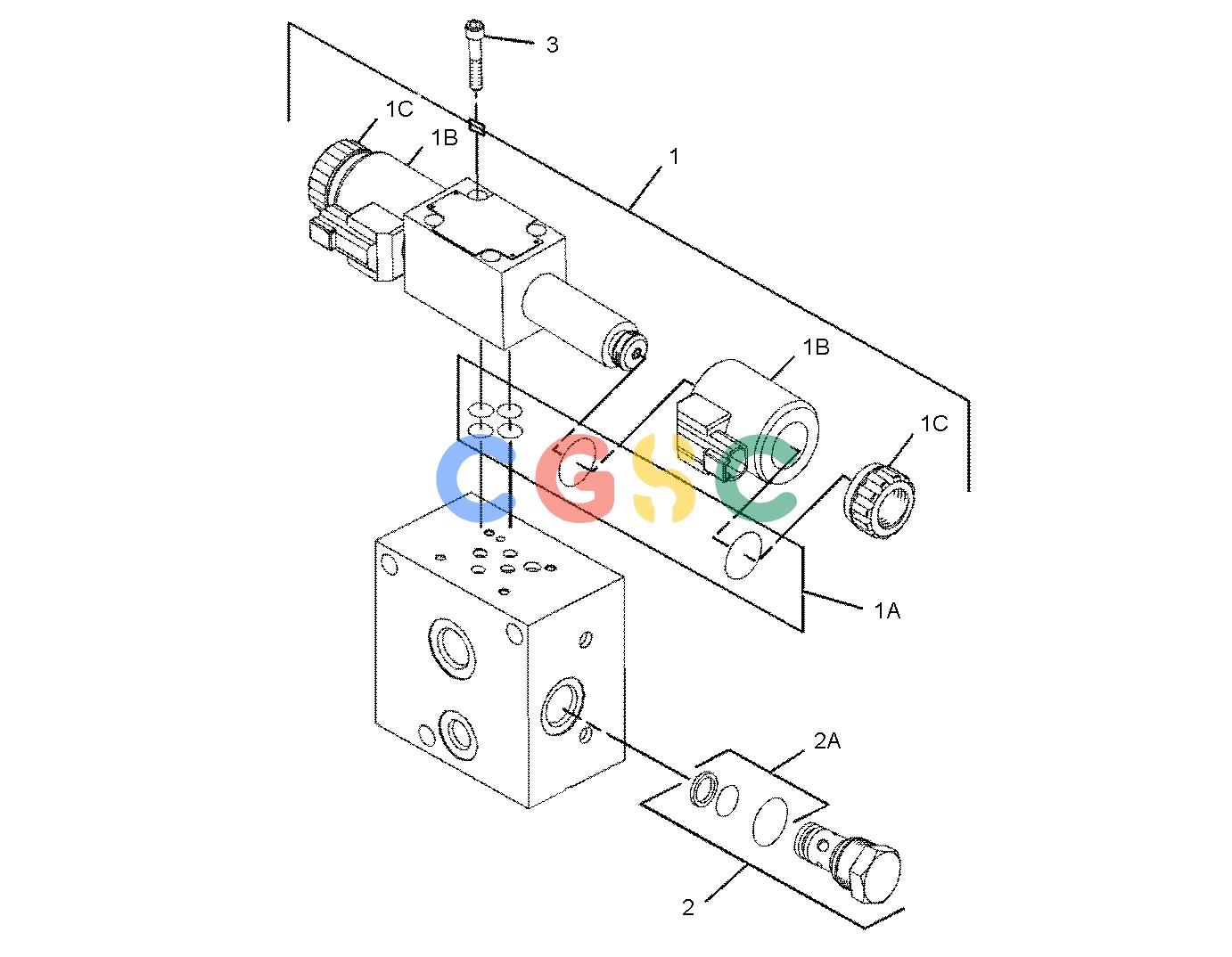

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 255-8037 | [1] | VALVE GP-SOLENOID(24-VOLT)(EXTENDER SLOPE) | |
| 1A. | 313-3551 | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS & S-RINGS) |
| 1B. | 274-6910 | [2] | COIL-SOLENOID(24-VOLT) | |
| 1C. | 313-3549 | [2] | KIT-COIL NUT | |
| | | | (EACH INCLUDES NUT & O-RING SEAL) |
| 2. | 313-2505 | [2] | VALVE-CHECK | |
| | | | (EACH INCLUDES) |
| 2A. | 255-6257 | [1] | KIT-SEAL(CHECK VALVE) | |
| | | | (INCLUDES O-RINGS & BACKUP RINGS) |
| 3. | 2N-0402 | [4] | BOLT-SOCKET HEAD(10-24X1.75-IN) | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
