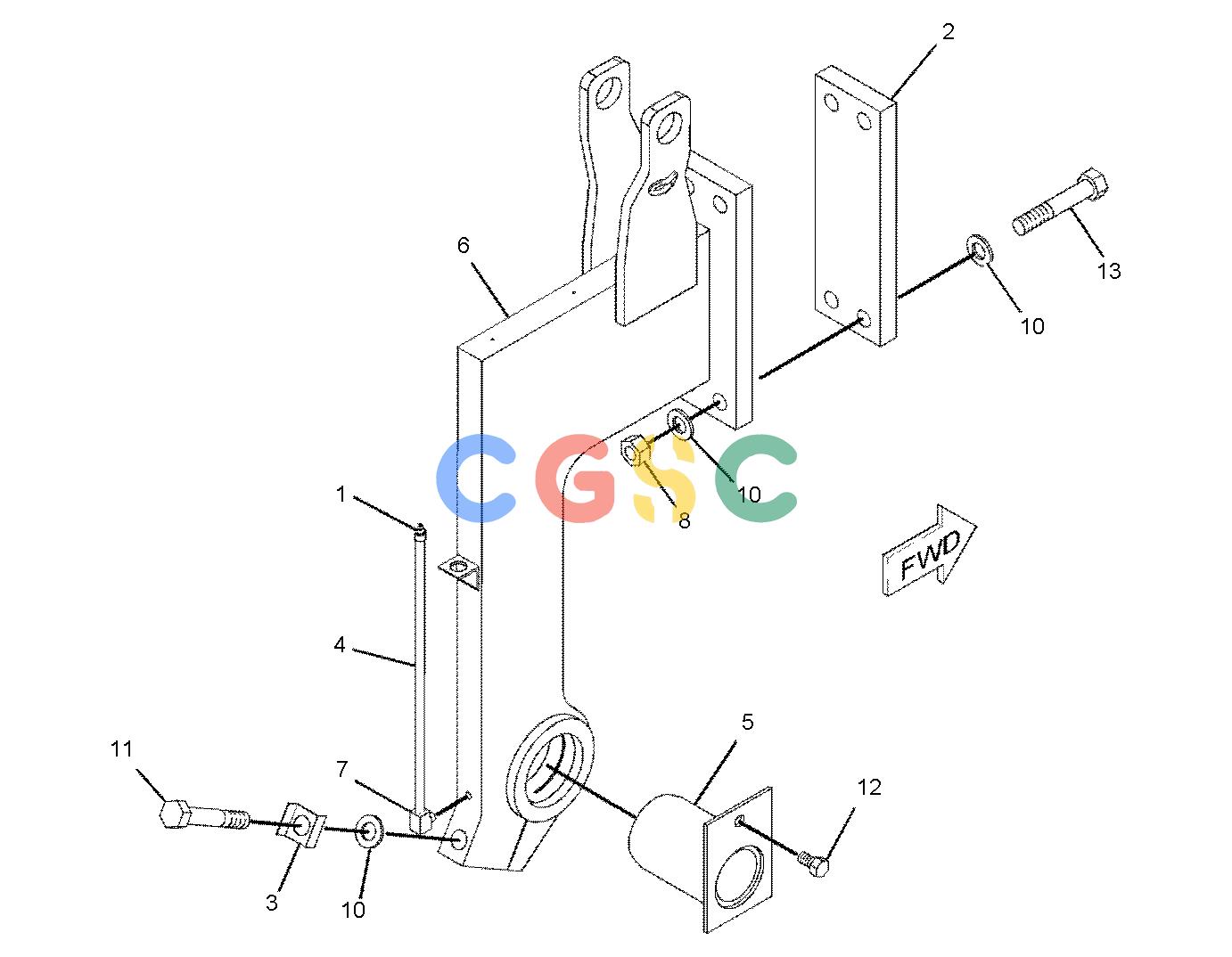

卡特零件查询（8-16B） 253-1002: ARM GP-DROP
广数供应链运营团队, 18 02月, 2025，浏览：
864 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-9982 | [2] | FITTING-GREASE | |
| 2. | 7X-8652 | [2] | BAR | |
| 3. | 8I-0368 | [2] | LOCK-TAB | |
| 4. | 100-7868 | [2] | NIPPLE-PIPE | |
| 5. | 112-5399 | [2] | PIN AS-PIVOT | |
| 6. | 253-1003 | [2] | BRACKET AS | |
| 7. | 3B-6552 | [2] | ELBOW-PIPE | |
| 8. | 6V-8182 | [8] | NUT(3/4-10-THD) | |
| 10. | 8T-4994 | [18] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 11. | 8T-9311 | [10] | BOLT(3/4-10X4.5-IN) | |
| 12. | 8T-9384 | [2] | BOLT(1/2-13X0.875-IN) | |
| 13. | 8T-8925 | [8] | BOLT(3/4-10X4.75-IN) | |
| | | | QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH & RH SIDES |
