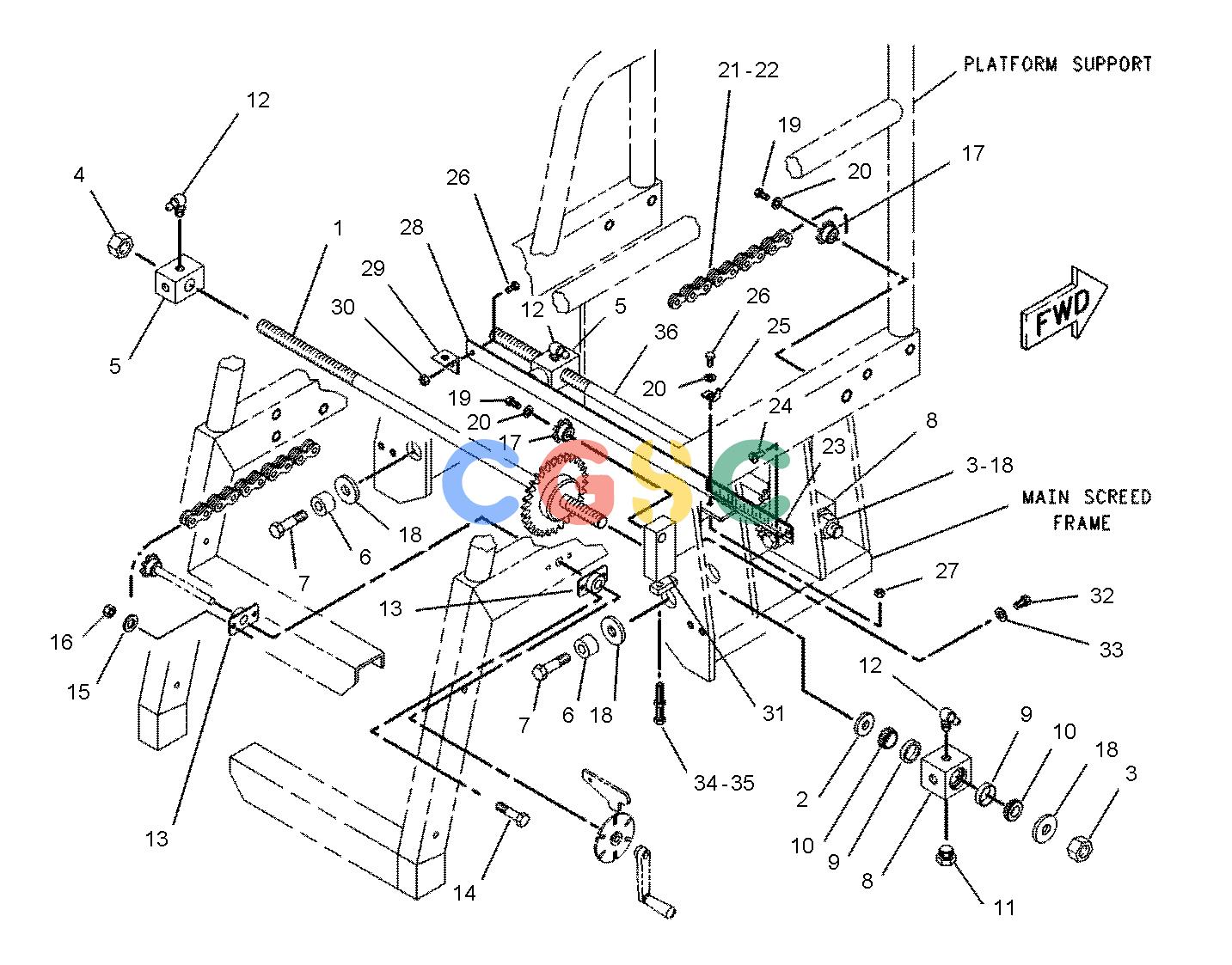

卡特零件查询（8-16B） 8I-0584: CROWN GP
广数供应链运营团队, 18 02月, 2025，浏览：
162 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0587 | [1] | SHAFT AS | |
| 2. | 7X-0616 | [2] | WASHER-HARD(28X57X6-MM THK) | |
| 3. | 6K-3632 | [2] | LOCKNUT(1-8-THD) | |
| 4. | 3E-4300 | [2] | NUT-FULL | |
| 5. | 8I-0899 | [2] | TRUNNION | |
| 6. | 8I-0902 | [8] | SPACER(0.75X1.50X1-IN THK) | |
| 7. | 1A-0075 | [8] | BOLT(3/4-16X1.75-IN) | |
| 8. | 8I-0903 | [2] | BLOCK-BEARING | |
| 9. | 3P-8680 | [4] | CUP-BEARING | |
| 10. | 3P-8681 | [4] | CONE-BEARING | |
| 11. | 9S-4185 | [2] | PLUG(3/4-16-THD) | |
| 12. | 3B-8488 | [4] | FITTING-GREASE(1/8-27 PTF) | |
| 13. | 102-2701 | [2] | BEARING | |
| 14. | 7X-0264 | [2] | BOLT(1/4-20X2.5-IN) | |
| 15. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 16. | 6V-8185 | [2] | NUT(1/4-20-THD) | |
| 17. | 119-0750 | [2] | SPROCKET(12-TEETH) | |
| 18. | 7X-0537 | [4] | WASHER-HARD(40.5X67X6-MM THK) | |
| 19. | 5M-3062 | [2] | BOLT(3/8-16X0.75-IN) | |
| 20. | 5P-1075 | [3] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 21. | 107-2531 | [1] | CHAIN AS | |
| 22. | 102-2687 | [1] | LINK-CONNECTING | |
| 23. | 8I-0592 | [1] | SCALE-CROWN CONTROL | |
| 24. | 5D-8412 | [2] | SCREW-ROUND HEAD(8-32X0.5-IN) | |
| 25. | 102-2738 | [1] | POINTER | |
| 26. | 4L-6454 | [2] | BOLT(3/8-16X1-IN) | |
| 27. | 6V-8801 | [1] | NUT(3/8-16-THD) | |
| 28. | 8I-0588 | [1] | PLATE-MOUNTING | |
| 29. | 8I-0589 | [1] | BRACKET | |
| 30. | 2K-4973 | [1] | LOCKNUT(3/8-16-THD) | |
| 31. | 8I-0586 | [1] | BLOCK-TAKEUP | |
| 32. | 8T-8917 | [2] | BOLT(1/2-13X1.25-IN) | |
| 33. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 34. | 8T-6871 | [1] | BOLT(5/8-11X2.5-IN) | |
| 35. | 1D-5118 | [1] | NUT-JAM(5/8-11-THD) | |
| 36. | 107-2532 | [1] | SHAFT AS | |
