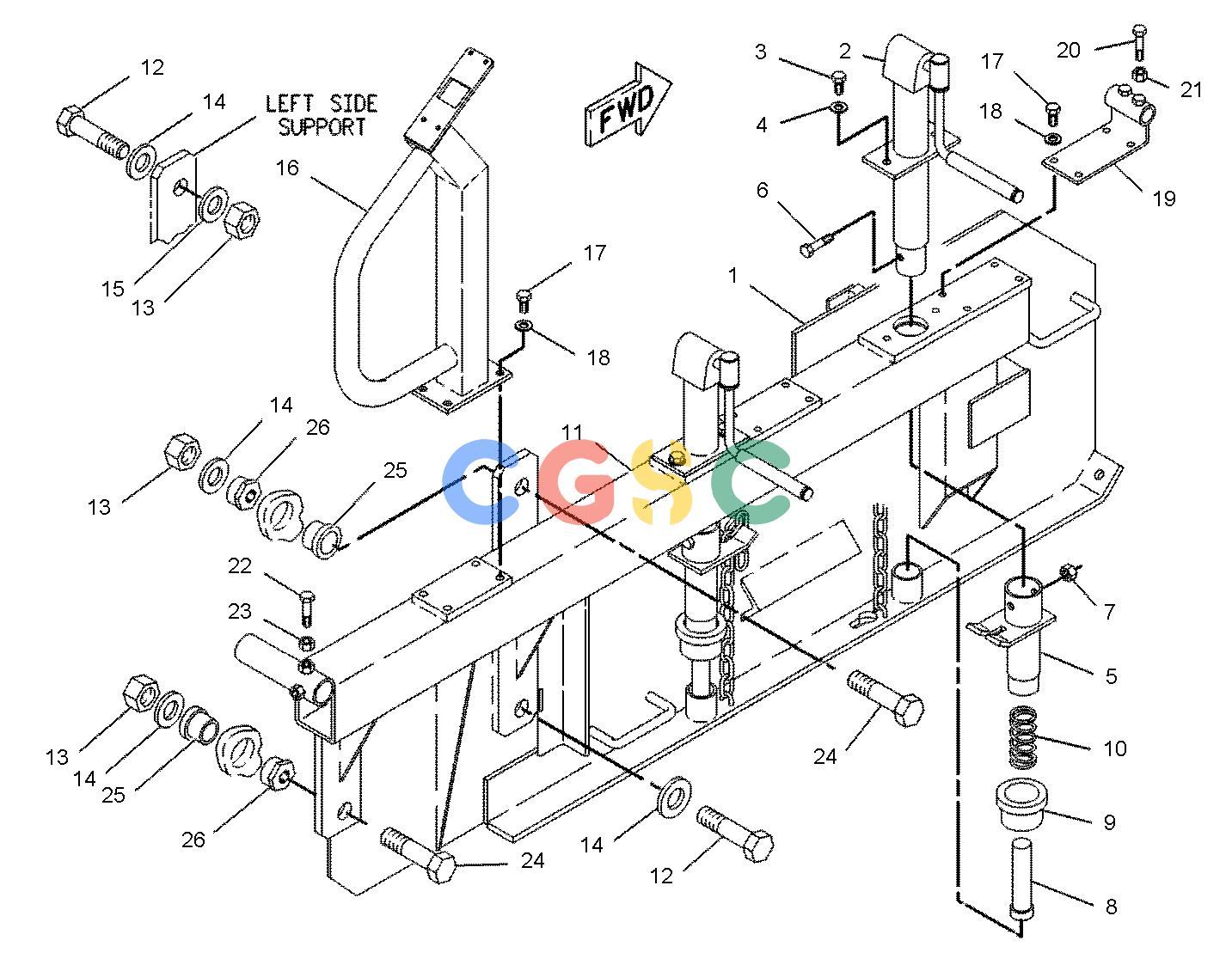

卡特零件查询（8-16B） 120-4568: GATE GP-END
广数供应链运营团队, 18 02月, 2025，浏览：
193 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0480 | [1] | PLATE AS(RH) | |
| | 8I-0481 | [1] | PLATE AS(LH) | |
| 2. | 8I-0921 | [4] | JACK GP-HEIGHT ADJUSTER | |
| 3. | 5M-3062 | [8] | BOLT(3/8-16X0.75-IN) | |
| 4. | 8T-4896 | [8] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 5. | 8I-0486 | [4] | BASE AS | |
| 6. | 4L-6459 | [4] | BOLT(3/8-16X2.5-IN) | |
| 7. | 2K-4973 | [4] | LOCKNUT(3/8-16-THD) | |
| 8. | 8I-0487 | [4] | PLUNGER | |
| 9. | 103-1576 | [4] | CAP | |
| 10. | 9G-2068 | [4] | SPRING | |
| 11. | 120-4567 | [1] | SUPPORT AS | |
| | 8I-0477 | [1] | SUPPORT AS | |
| 12. | 7X-0408 | [4] | BOLT(1-8X3.5-IN) | |
| 13. | 6K-3632 | [4] | LOCKNUT(1-8-THD) | |
| 14. | 8T-5361 | [6] | WASHER-HARD(28X49X5-MM THK) | |
| 15. | 106-0547 | [2] | WASHER | |
| 16. | 103-3570 | [2] | SUPPORT AS | |
| 17. | 8T-9383 | [16] | BOLT(1/2-13X0.75-IN) | |
| 18. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 19. | 106-7135 | [2] | SUPPORT AS | |
| 20. | 9B-7237 | [4] | BOLT(3/8-16X1.25-IN) | |
| 21. | 6V-8801 | [4] | NUT(3/8-16-THD) | |
| 22. | 8T-8917 | [4] | BOLT(1/2-13X1.25-IN) | |
| 23. | 6V-8188 | [4] | NUT(1/2-13-THD) | |
| 24. | 8C-8843 | [2] | BOLT(1-8X4.5-IN) | |
| 25. | 8I-0544 | [2] | BUSHING | |
| 26. | 102-2719 | [2] | LOCKNUT(2-1/4-16-THD) | |
