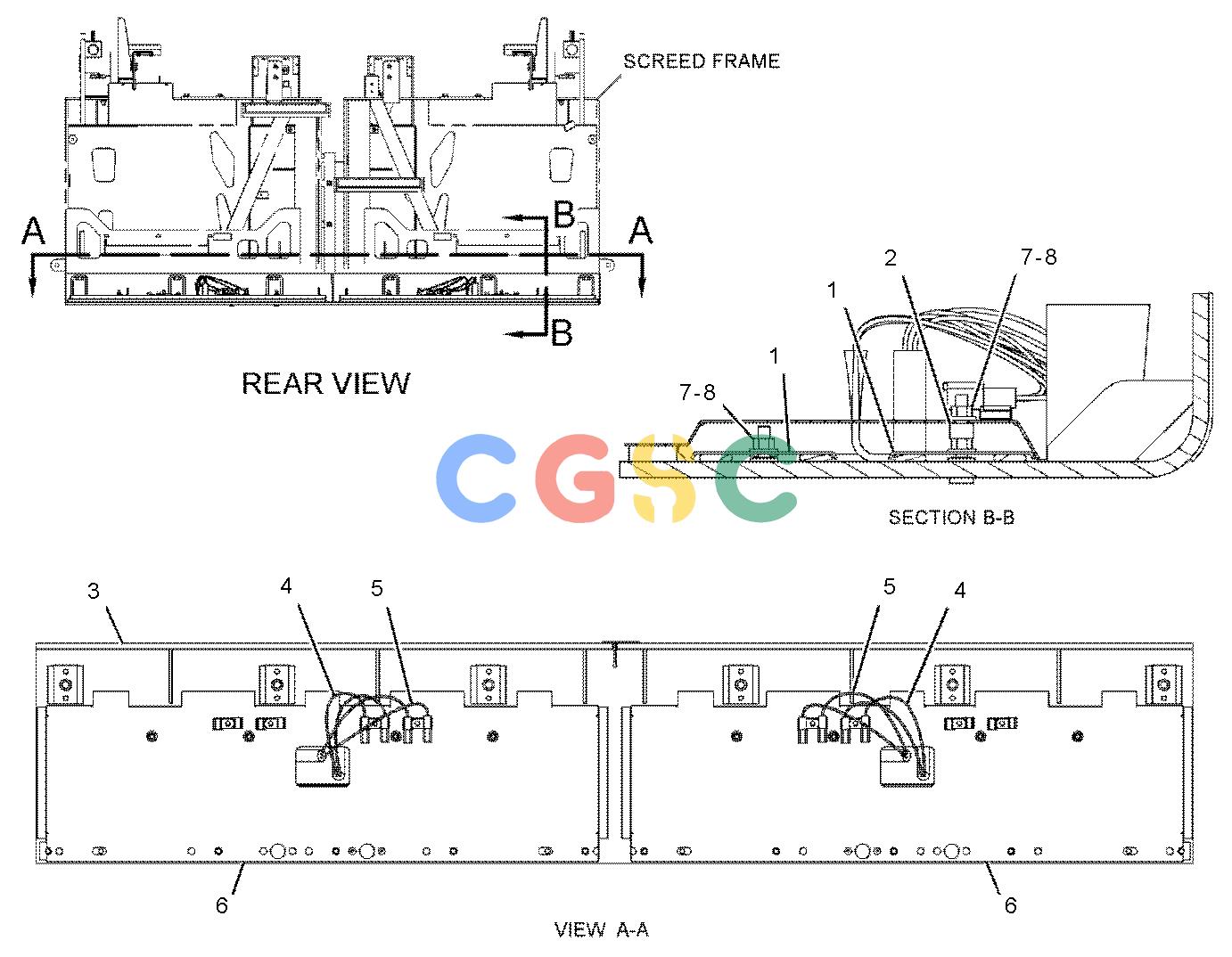

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 250-1075 | [16] | BRACKET | |
| 2. | 251-1544 | [8] | SPACER(14.86X19.05X12.5-MM THK) | |
| 3. | 262-6064 | [1] | PLATE AS(MAIN) | |
| 4. | 349-3014 | [2] | HEATER AS-SCREED(240-VOLT, 3109-WATT) | |
| 5. | 349-3015 | [2] | HEATER AS-SCREED(240-VOLT, 1099-WATT) | |
| (EACH HEATER AS INCLUDES) | ||||
| 129-7164 | [2] | RECEPTACLE AS-CONNECTOR(1-PIN) | ||
| 6. | 311-6922 | [2] | PLATE AS | |
| 7. | 5P-1075 | [24] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 8. | 6V-8801 | [24] | NUT(3/8-16-THD) | |
