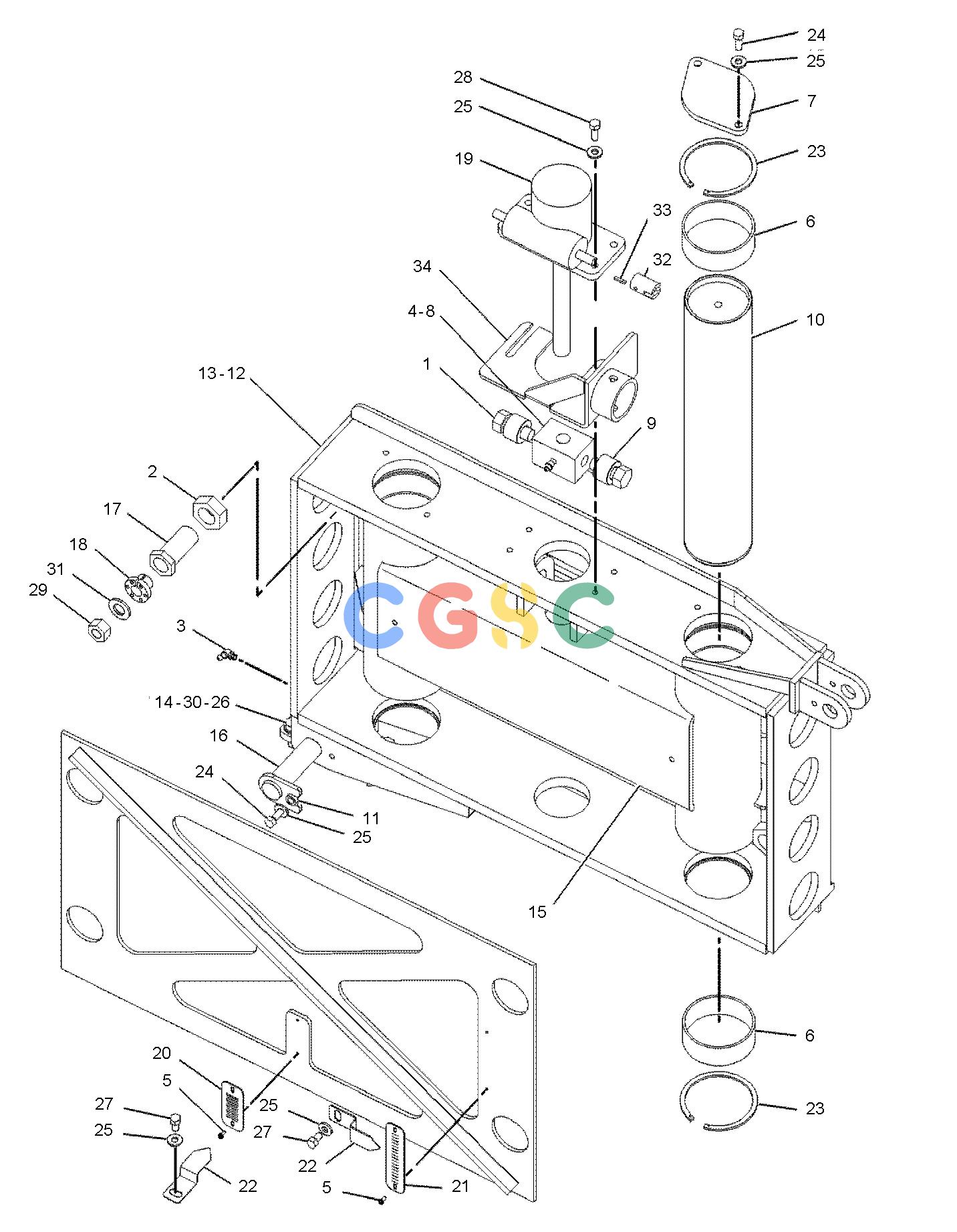

卡特零件查询（AS2301） 231-4642: SCREED AR
广数供应链运营团队, 18 02月, 2025，浏览：
415 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 197-5296Y | [1] | ADJUSTER GP-HEIGHT | |
| | 225-2317Y | [1] | ARM GP-DROP | |
| | 239-5628Y | [1] | CARRIAGE GP-EXTENDER | |
| | 197-5288Y | [1] | CROWN GP | |
| | 197-5297Y | [1] | DEFLECTOR GP | |
| | 197-5287Y | [1] | FRAME GP-SCREED | |
| | 216-6989Y | [1] | GATE GP-END | |
| | 197-5289Y | [1] | LINES GP-EXTENDER | |
| | | | -OR- |
| | 311-4879Y | [1] | LINES GP-EXTENDER | |
| | 197-5285Y | [1] | LINES GP-SLOPE | |
| | | | -OR- |
| | 311-1959Y | [1] | LINES GP-SLOPE | |
| | 230-7543Y | [1] | LINES GP-VIBRATORY | |
| | 197-5292Y | [1] | PLATE & FILM GP | |
| | | | S/N AWC1-1001 |
| | Y | [1] | PLATE & FILM GP |
| | | | S/N AWC1002-UP |
| | 197-5295Y | [1] | PLATFORM GP | |
| | 197-5294Y | [1] | VIBRATORY GP | |
| | Y | | SEPARATE ILLUSTRATION |
