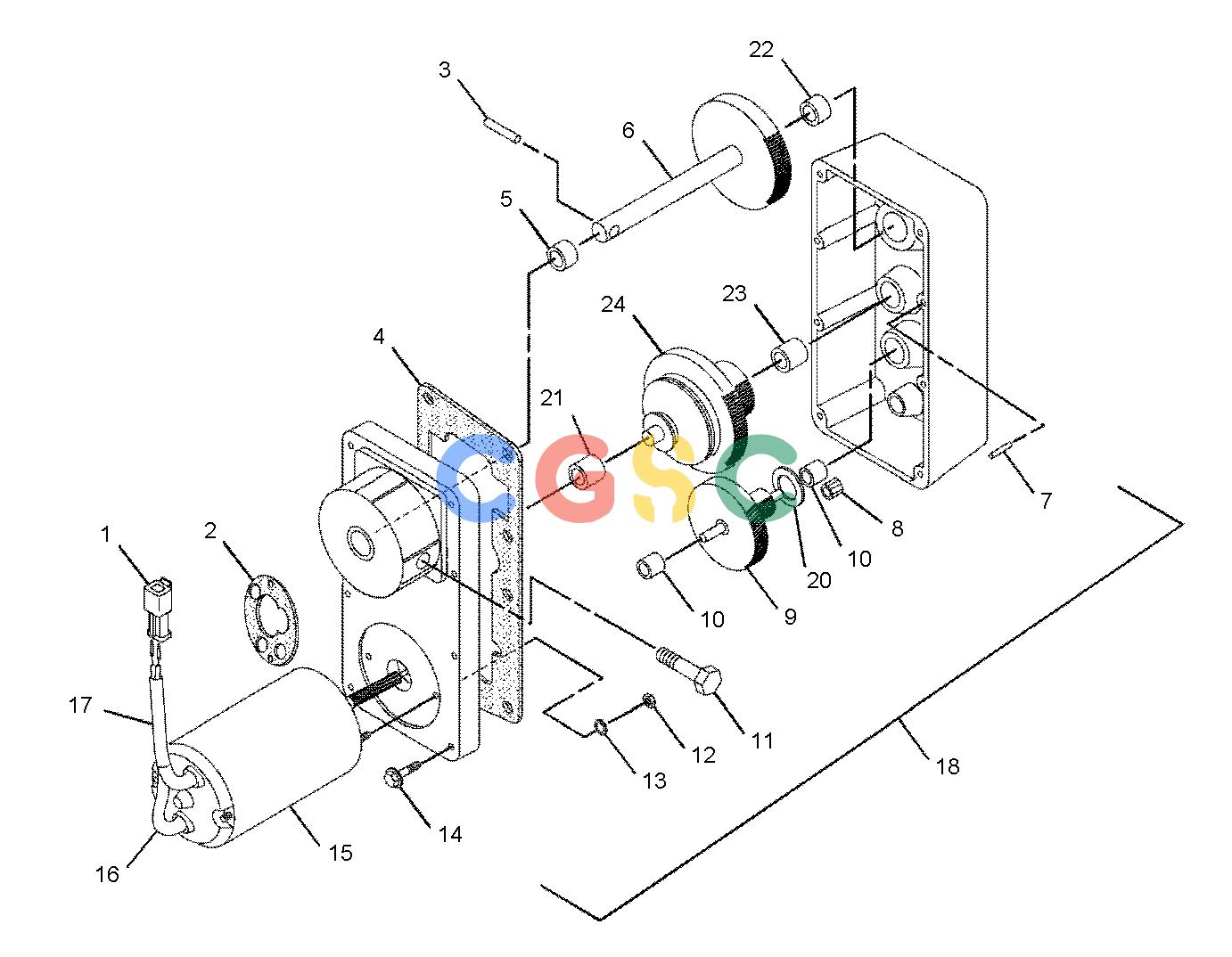

卡特零件查询（AS2301） 277-2006: MOTOR GP-POWER ADJUSTER
广数供应链运营团队, 18 02月, 2025，浏览：
453 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 2. | 168-2166 | [1] | GASKET-MOTOR | |
| 3. | 171-6788J | [1] | PIN | |
| 4. | 278-0644J | [1] | GASKET-COVER | |
| 5. | 123-3684J | [1] | BUSHING-BRONZE | |
| 6. | 171-3711J | [1] | SHAFT-GEAR | |
| 7. | 171-6787J | [2] | DOWEL | |
| 8. | 1L-0834J | [1] | BEARING AS-NEEDLE | |
| 9. | 168-2512J | [1] | SHAFT-IDLER | |
| 10. | 077-5077J | [2] | BUSHING-TERMINAL | |
| 11. | 5M-3062J | [1] | BOLT(3/8-16X0.75-IN) | |
| 12. | 179-4324M | [2] | LOCKNUT(M5X0.8-THD) | |
| 13. | 8T-0328 | [2] | WASHER-HARD(5.5X10X1-MM THK) | |
| 14. | 122-8707J | [8] | SCREW-HEX(10-16X1-IN) | |
| 15. | 206-6738 | [1] | MOTOR AS(24-VOLT) | |
| 16. | 109-0887E | | SLEEVE(24-CM EACH) | |
| 17. | 153-6440H | | TUBE(3-DM) | |
| 18. | 272-7281J | [1] | KIT-GEARBOX | |
| | | | (ALSO INCLUDES WASHER, BUSHINGS, TORQUE LIMITER, HOUSING COVER & REAR HOUSING) |
| 20. | 311-8715J | [1] | WASHER(5X11X1-MM THK) | |
| 21. | 311-8716J | [1] | BUSHING(12X15X7.9-MM THK) | |
| 22. | 311-8717J | [1] | BUSHING(12.75X15.95X9.53-MM THK) | |
| 23. | 123-3683J | [1] | BUSHING-BRONZE | |
| 24. | 6L-4082J | [1] | RACE-THRUST BEARING | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | E | | ORDER BY THE CENTIMETER |
| | H | | ORDER BY THE DECIMETER |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
