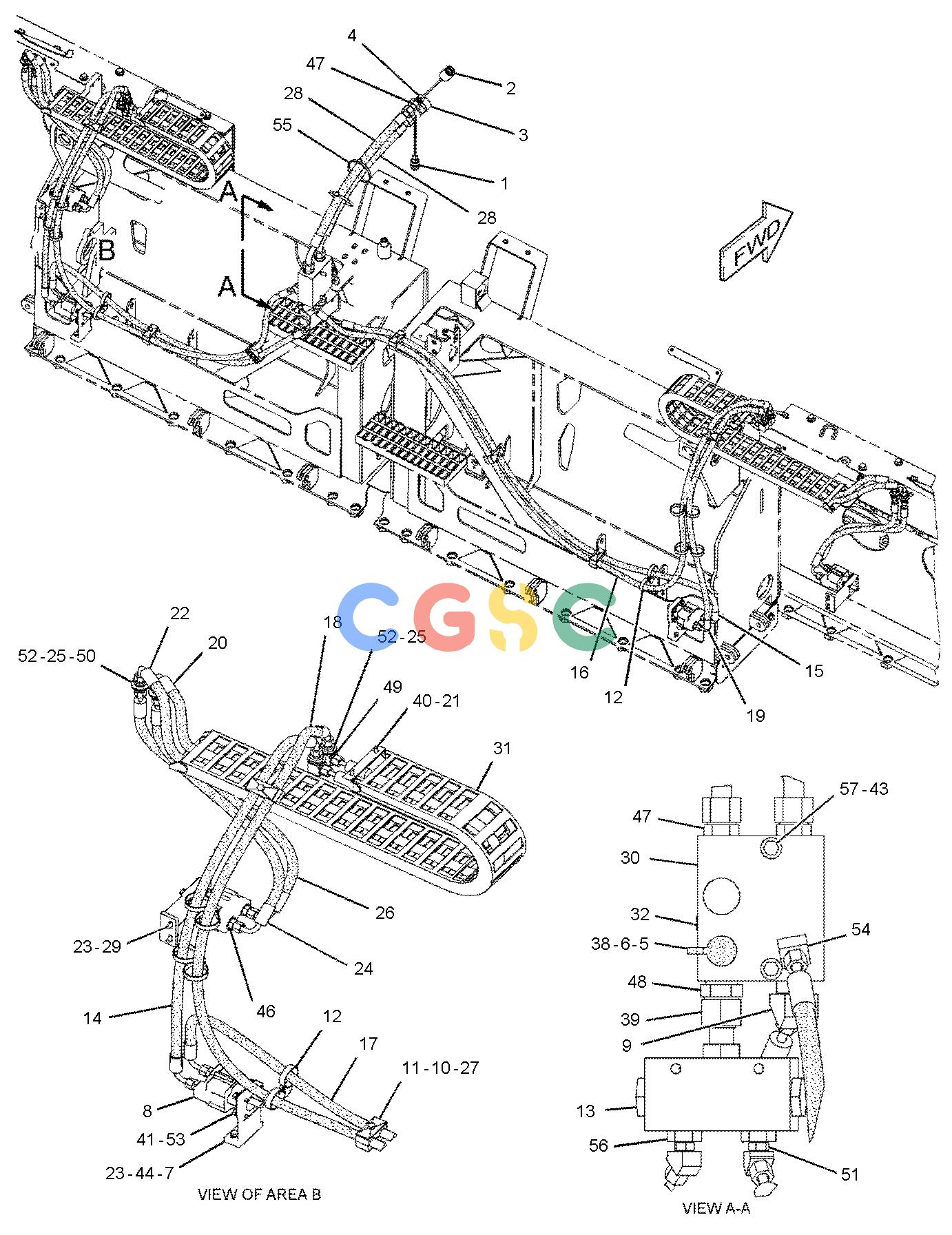

卡特零件查询（AS2301） 230-7543: LINES GP-VIBRATORY
广数供应链运营团队, 18 02月, 2025，浏览：
437 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5R-5718 | [1] | PLUG-DUST | |
| 2. | 5R-5719 | [1] | CAP-DUST | |
| 3. | 5R-6304 | [1] | COUPLER AS-QUICK DISCONNECT(FEMALE) | |
| | 3S-9233 | [1] | SEAL-O-RING | |
| | | [1] | RETAINER |
| 4. | 5R-6305 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| 5. | 6V-0852 | [1] | CAP-DUST | |
| 6. | 7X-5315 | [1] | FITTING AS(QUICK DISCONNECT) | |
| 7. | 8I-0673 | [4] | MOUNT | |
| 8. | 8I-0721Y | [4] | MOTOR GP-GEROTOR(VIBRATORY) | |
| 9. | 209-4394C | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-6754 | [1] | ELBOW | |
| 10. | 102-8705 | [7] | PLATE(TOP) | |
| 11. | 154-6583 | [14] | CLAMP-HALF | |
| 12. | 177-2215 | [6] | STRAP-DUAL CLAMP | |
| 13. | 197-5273 | [1] | VALVE GP-FLOW DIVIDER(VIBRATORY) | |
| 14. | 197-9792I | [1] | HOSE AS | |
| 15. | 197-9793I | [1] | HOSE AS | |
| 16. | 197-9794I | [1] | HOSE AS | |
| 17. | 197-9795I | [1] | HOSE AS | |
| 18. | 197-9796I | [1] | HOSE AS | |
| 19. | 197-9797I | [1] | HOSE AS | |
| 20. | 197-9798I | [2] | HOSE AS | |
| 21. | 8T-4205 | [8] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 22. | 197-9799I | [2] | HOSE AS | |
| 23. | 8T-4224C | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 24. | 197-9800I | [2] | HOSE AS | |
| 25. | 8T-4994 | [8] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 26. | 197-9801I | [2] | HOSE AS | |
| 27. | 8T-8911 | [7] | BOLT(5/16-18X2-IN) | |
| 28. | 197-9802I | [2] | HOSE AS | |
| 29. | 8T-9043 | [4] | BOLT(5/16-18X0.875-IN) | |
| 30. | 199-6147J | [1] | VALVE GP-CONTROL(VIBRATORY) | |
| | 199-7541 | [1] | CARTRIDGE AS-VALVE | |
| | 203-2458 | [1] | KNOB(HAND) | |
| 31. | 232-0734 | [2] | CONDUIT-FLEXIBLE | |
| 32. | 183-7263 | [1] | PLUG AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 38. | 169-7397C | [1] | ADAPTER AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 3P-1932 | [1] | ADAPTER | |
| 39. | 164-5548C | [1] | COUPLING AS | |
| | 4I-6141 | [1] | ADAPTER | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 40. | 4M-5281 | [8] | BOLT(1/4-20X0.75-IN) | |
| 41. | 4M-6425 | [16] | BOLT(5/16-18X1-IN) | |
| 43. | 5P-1075 | [2] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 44. | 6V-5782 | [4] | BOLT(5/16-18X1.125-IN) | |
| 46. | 148-8318C | [8] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8634 | [1] | CONNECTOR | |
| 47. | 148-8327C | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 48. | 148-8317C | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8714 | [1] | CONNECTOR | |
| 49. | 148-8377C | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8980 | [1] | ELBOW | |
| 50. | 149-5452C | [4] | UNION AS(STRAIGHT) | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8994 | [1] | UNION(STRAIGHT) | |
| 51. | 148-8353C | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9001 | [1] | ELBOW | |
| 52. | 6V-9168 | [8] | NUT(11/16-16-THD) | |
| 53. | 5P-4116C | [16] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 54. | 148-8363C | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9876 | [1] | ELBOW | |
| 55. | 7K-1181 | [2] | STRAP-CABLE | |
| 56. | 148-8309C | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 2P-8421 | [1] | ADAPTER-O-RING | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| 57. | 7X-0290 | [2] | BOLT(3/8-16X3.5-IN) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 203-2457J | [1] | KIT-SEAL(FLOW CONTROL VALVE) | |
| | | | (INCLUDES O-RING SEALS & BACKUP RINGS) |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | J | | KIT MARKED J AVAILABLE PART(S) MARKED J |
| | Y | | SEPARATE ILLUSTRATION |
