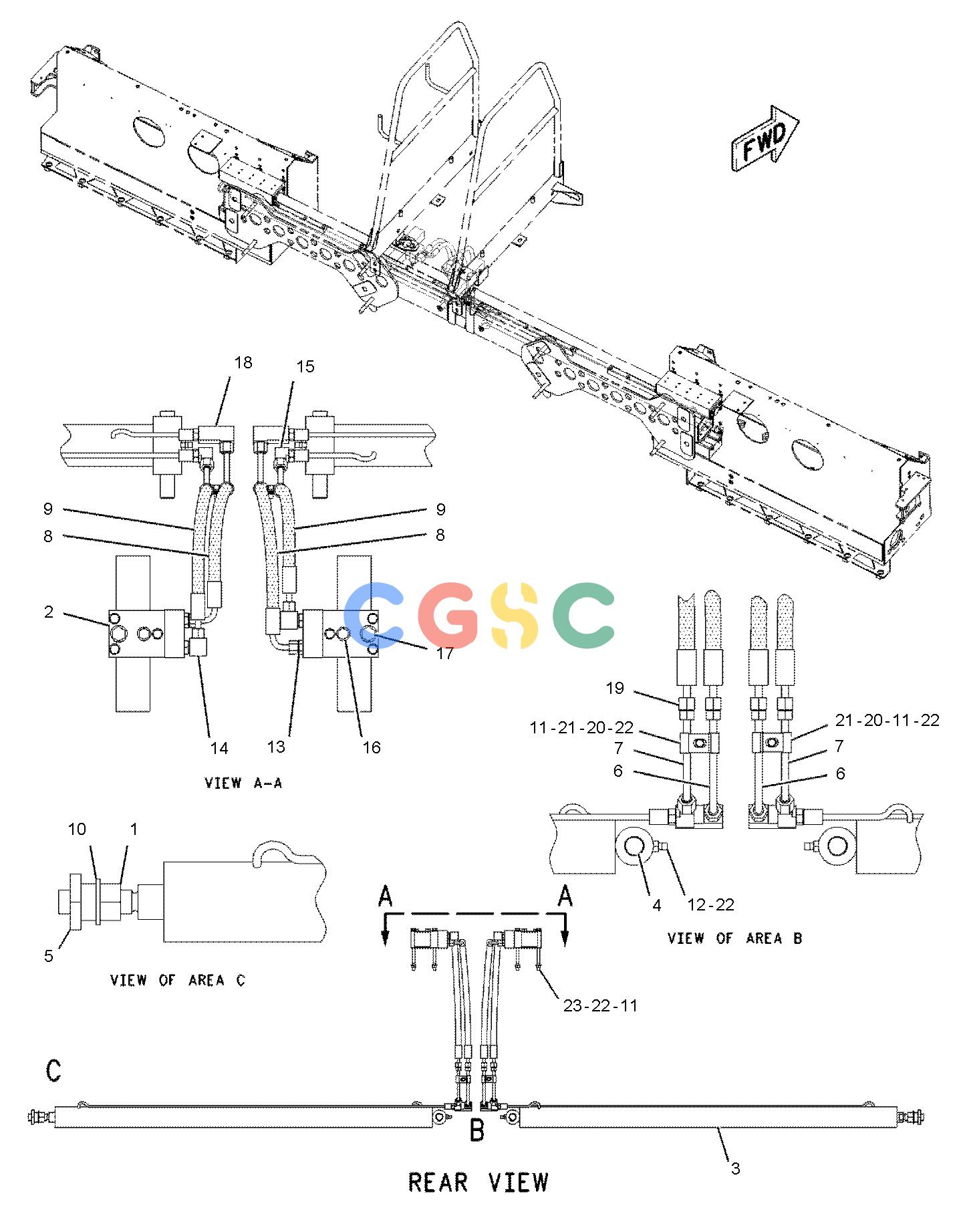

卡特零件查询（AS2301） 197-5289: LINES GP-EXTENDER
广数供应链运营团队, 18 02月, 2025，浏览：
616 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7D-8508 | [2] | NUT-FULL(7/8-14-THD) | |
| 2. | 103-3602Y | [2] | VALVE GP-SOLENOID(EXTENDER, SLOPE) | |
| 3. | 165-4654Y | [2] | CYLINDER GP-HYDRAULIC(EXTENDER) | |
| 4. | 165-4732 | [2] | PIN | |
| 5. | 165-4744 | [2] | ADJUSTER | |
| 6. | 197-9821 | [2] | TUBE AS | |
| 7. | 197-9822 | [2] | TUBE AS | |
| 8. | 197-9823CI | [2] | HOSE AS | |
| 9. | 197-9824CI | [2] | HOSE AS | |
| 10. | 8C-6913 | [2] | WASHER-HARD(24X41.5X4-MM THK) | |
| 11. | 8T-4896 | [16] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 12. | 213-9261C | [2] | SETSCREW | |
| 13. | 148-8318 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8634 | [1] | CONNECTOR | |
| 14. | 148-8374 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 15. | 148-8378 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 16. | 148-8407 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 17. | 148-8411C | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 18. | 150-3036C | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-1905 | [1] | ELBOW | |
| 19. | 4J-5477 | [4] | SEAL-O-RING | |
| 20. | 5M-3062 | [2] | BOLT(3/8-16X0.75-IN) | |
| 21. | 5P-9297 | [4] | CLIP | |
| 22. | 6V-8801C | [10] | NUT(3/8-16-THD) | |
| 23. | 7X-0297 | [6] | BOLT(3/8-16X5.75-IN) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | Y | | SEPARATE ILLUSTRATION |
