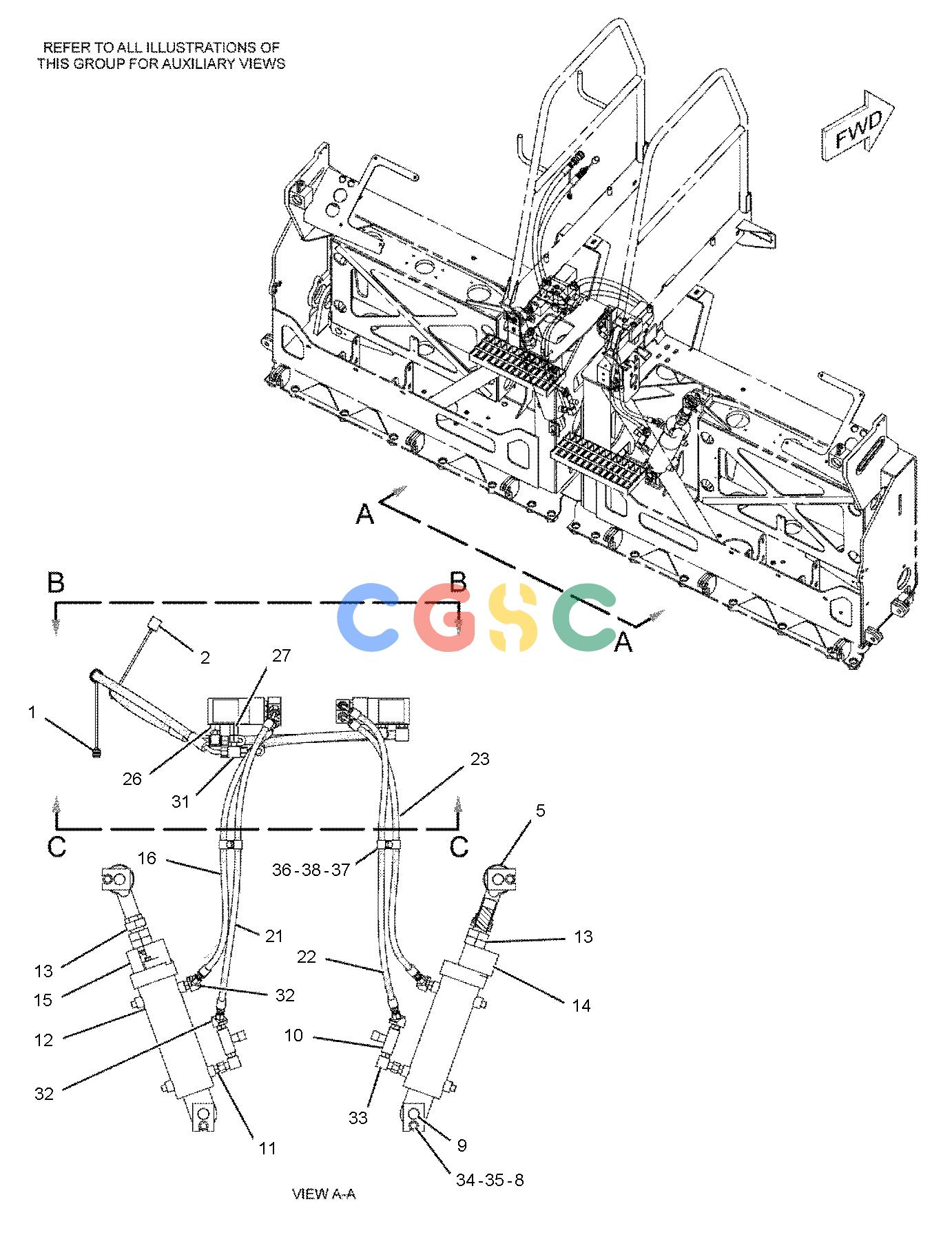

卡特零件查询（AS2301） 197-5285: LINES GP-SLOPE
广数供应链运营团队, 18 02月, 2025，浏览：
532 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5R-5676 | [1] | PLUG-DUST | |
| 2. | 5R-5677 | [1] | CAP-DUST(DUST) | |
| 3. | 5R-6867 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| 4. | 5R-6868 | [1] | COUPLER AS-QUICK DISCONNECT(FEMALE) | |
| 5. | 8C-1457 | [2] | BEARING | |
| 6. | 9D-8831 | [2] | BOLT-SPECIAL | |
| 7. | 103-3602Y | [2] | VALVE GP-SOLENOID(SLOPE) | |
| 8. | 106-6340 | [4] | SPACER(10.74X17.14X7-MM THK) | |
| 9. | 108-2084 | [4] | PIN AS | |
| 10. | 149-0195 | [2] | VALVE-SHUTOFF(HYDRAULIC CYLINDER) | |
| 11. | 183-3399 | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8636 | [1] | CONNECTOR | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 12. | 197-9766Y | [2] | CYLINDER GP-HYDRAULIC(SLOPE) | |
| 13. | 197-9767 | [6] | NUT-JAM(1-1/4-12-THD) | |
| 14. | 197-9768 | [1] | SPACER | |
| 15. | 197-9769 | [1] | SPACER | |
| 16. | 197-9774I | [1] | HOSE AS | |
| 17. | 197-9811I | [1] | HOSE AS | |
| 18. | 197-9812I | [1] | HOSE AS | |
| 19. | 197-9813I | [1] | HOSE AS | |
| 20. | 197-9814I | [1] | HOSE AS | |
| 21. | 197-9816I | [1] | HOSE AS | |
| 22. | 197-9817I | [1] | HOSE AS | |
| 23. | 197-9818I | [1] | HOSE AS | |
| 24. | 204-0729 | [2] | SEAL-RING | |
| 25. | 204-0730 | [2] | SEAL-RING | |
| 26. | 148-8313 | [1] | ADAPTER AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 5P-6944 | [1] | ADAPTER | |
| 27. | 148-8338 | [1] | CONNECTOR AS | |
| | 8T-0075 | [1] | CONNECTOR | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 28. | 148-8374 | [5] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8723 | [1] | ELBOW | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 29. | 148-8378 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8724 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 30. | 148-8413 | [1] | REDUCER AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8934 | [1] | ADAPTER | |
| 31. | 148-8434 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-9843 | [1] | TEE | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| 32. | 150-3033 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 8T-0164 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 33. | 150-4050 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 8T-0788 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 34. | 5M-3062 | [4] | BOLT(3/8-16X0.75-IN) | |
| 35. | 5P-1075 | [4] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 36. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 37. | 9B-7237 | [2] | BOLT(3/8-16X1.25-IN) | |
| 38. | 9M-8406 | [4] | CLIP(LOOP) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | Y | | SEPARATE ILLUSTRATION |
