卡特零件查询（AS2301） 332-1453: VALVE GP-SOLENOID
广数供应链运营团队, 18 02月, 2025，浏览：
454 次

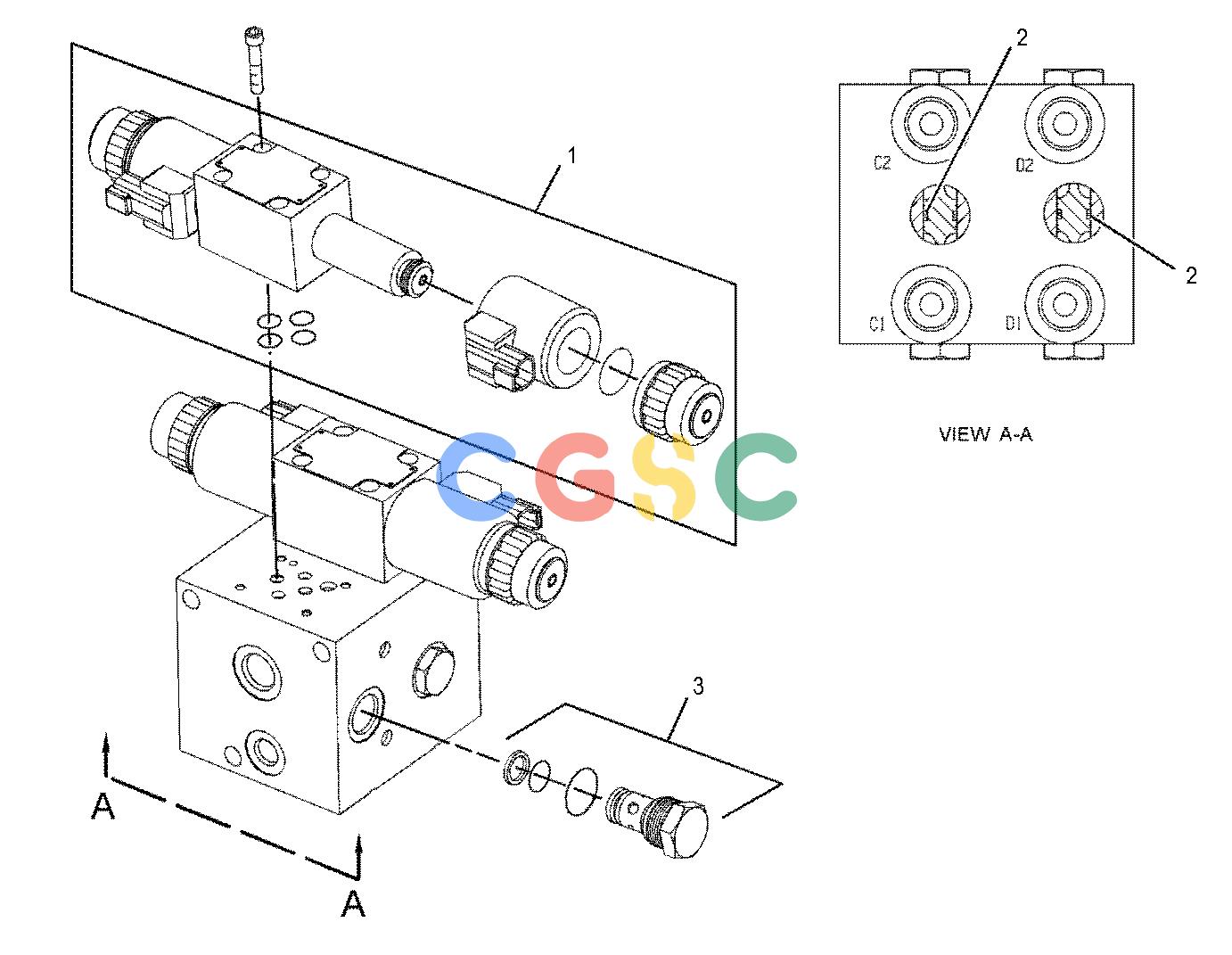

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 369-4724J | [2] | VALVE GP-SOLENOID(24-VOLT)(EXTENDER SLOPE) | |
| | | | (EACH INCLUDES) |
| | 2N-0402 | [4] | BOLT-SOCKET HEAD(10-24X1.75-IN) | |
| | 375-5986 | [2] | COIL-SOLENOID | |
| | 375-5987 | [2] | NUT-SPECIAL | |
| 2. | 030-0167 | [4] | RING-BACKUP | |
| 3. | 313-2505 | [4] | VALVE-CHECK | |
| | | | (EACH INCLUDES) |
| | 255-6257 | [1] | KIT-SEAL(CHECK VALVE) | |
| | | | (INCLUDES O-RINGS & BACKUP RING) |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 313-3551J | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS & RINGS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
