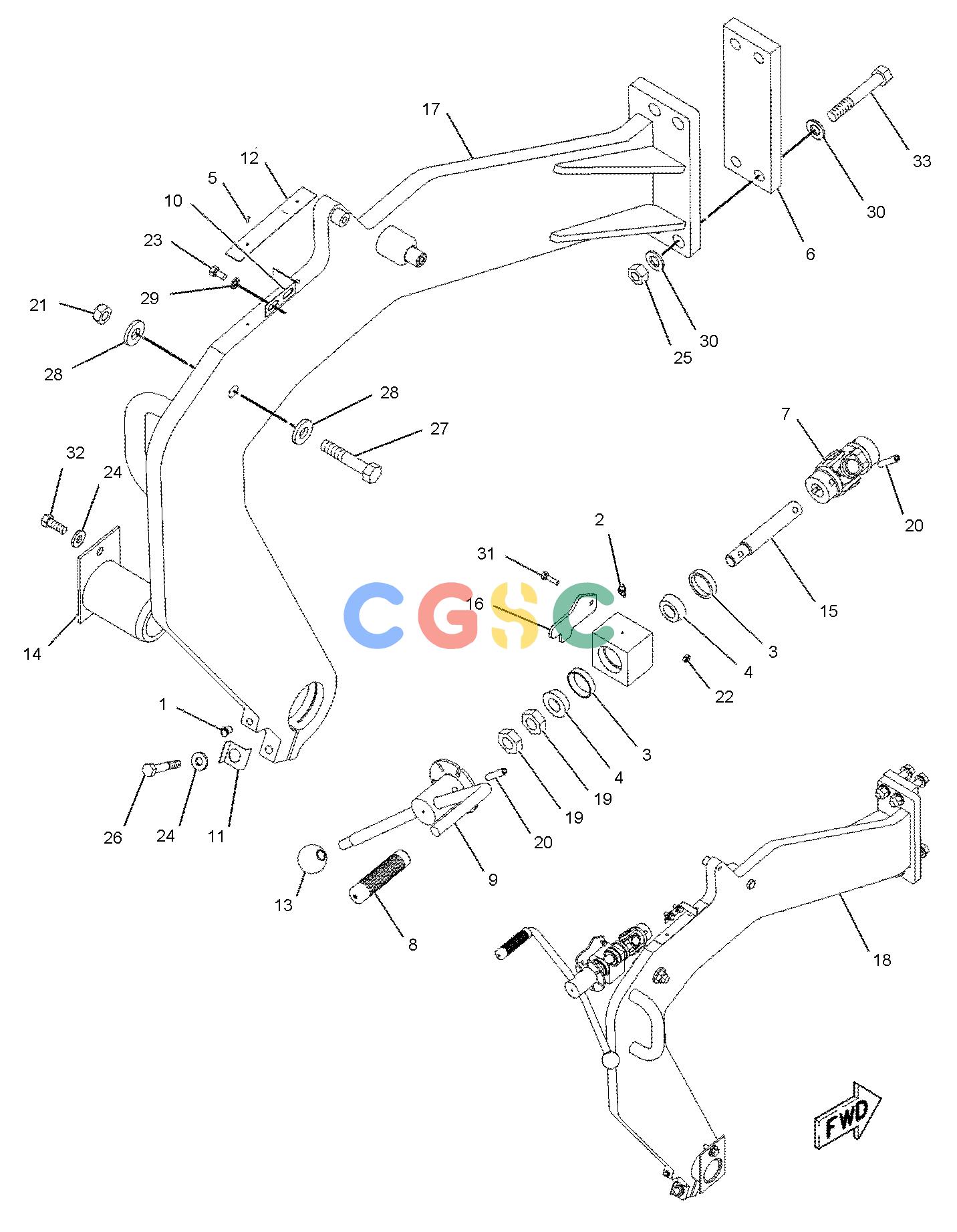

卡特零件查询（AS2301） 225-2317: ARM GP-DROP
广数供应链运营团队, 18 02月, 2025，浏览：
334 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8487 | [2] | FITTING-GREASE | |
| 2. | 3B-8488 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 3. | 3P-8680 | [4] | CUP-BEARING | |
| 4. | 3P-8681 | [4] | CONE-BEARING | |
| 5. | 4B-4161 | [4] | SCREW-DRIVE(NO 6X3/8-IN) | |
| 6. | 7X-8652 | [2] | BAR | |
| 7. | 7X-8698 | [2] | UNIVERSAL JOINT GP | |
| | | | (EACH INCLUDES) |
| | 3B-8485 | [1] | ELBOW | |
| | 177-6969 | [1] | KIT-BEARING(UNIVERSAL JOINT) | |
| 8. | 7X-9918 | [2] | GRIP-HANDLE | |
| 9. | 8I-0352 | [2] | HANDLE AS | |
| 10. | 8I-0358 | [2] | POINTER | |
| 11. | 8I-0368 | [2] | LOCK-TAB | |
| 12. | 8I-0904 | [2] | SCALE-THICKNESS | |
| 13. | 8I-0911 | [2] | KNOB | |
| 14. | 112-5399 | [2] | PIN AS-PIVOT | |
| 15. | 134-1720 | [2] | SHAFT | |
| 16. | 135-8177 | [2] | LOCKOUT | |
| 17. | 217-2299 | [1] | PLATE AS(LH) | |
| 18. | 217-2300 | [1] | PLATE AS(RH) | |
| 19. | 1D-6306 | [4] | NUT(1-8-THD) | |
| 20. | 1J-8136 | [4] | PIN-SPRING | |
| 21. | 1K-6870 | [2] | LOCKNUT(3/4-10-THD) | |
| 22. | 2D-6235 | [2] | LOCKNUT(1/4-20-THD) | |
| 23. | 5M-3062 | [4] | BOLT(3/8-16X0.75-IN) | |
| 24. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 25. | 6V-8182 | [8] | NUT(3/4-10-THD) | |
| 26. | 7X-0326 | [2] | BOLT(1/2-13X3-IN) | |
| 27. | 7X-0371 | [2] | BOLT(3/4-10X3.75-IN) | |
| 28. | 7X-0582 | [4] | WASHER-HARD(20X44.5X6-MM THK) | |
| 29. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 30. | 8T-4994 | [16] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 31. | 8T-8908 | [2] | BOLT(1/4-20X1-IN) | |
| 32. | 8T-8917 | [2] | BOLT(1/2-13X1.25-IN) | |
| 33. | 8T-8925 | [8] | BOLT(3/4-10X4.75-IN) | |
