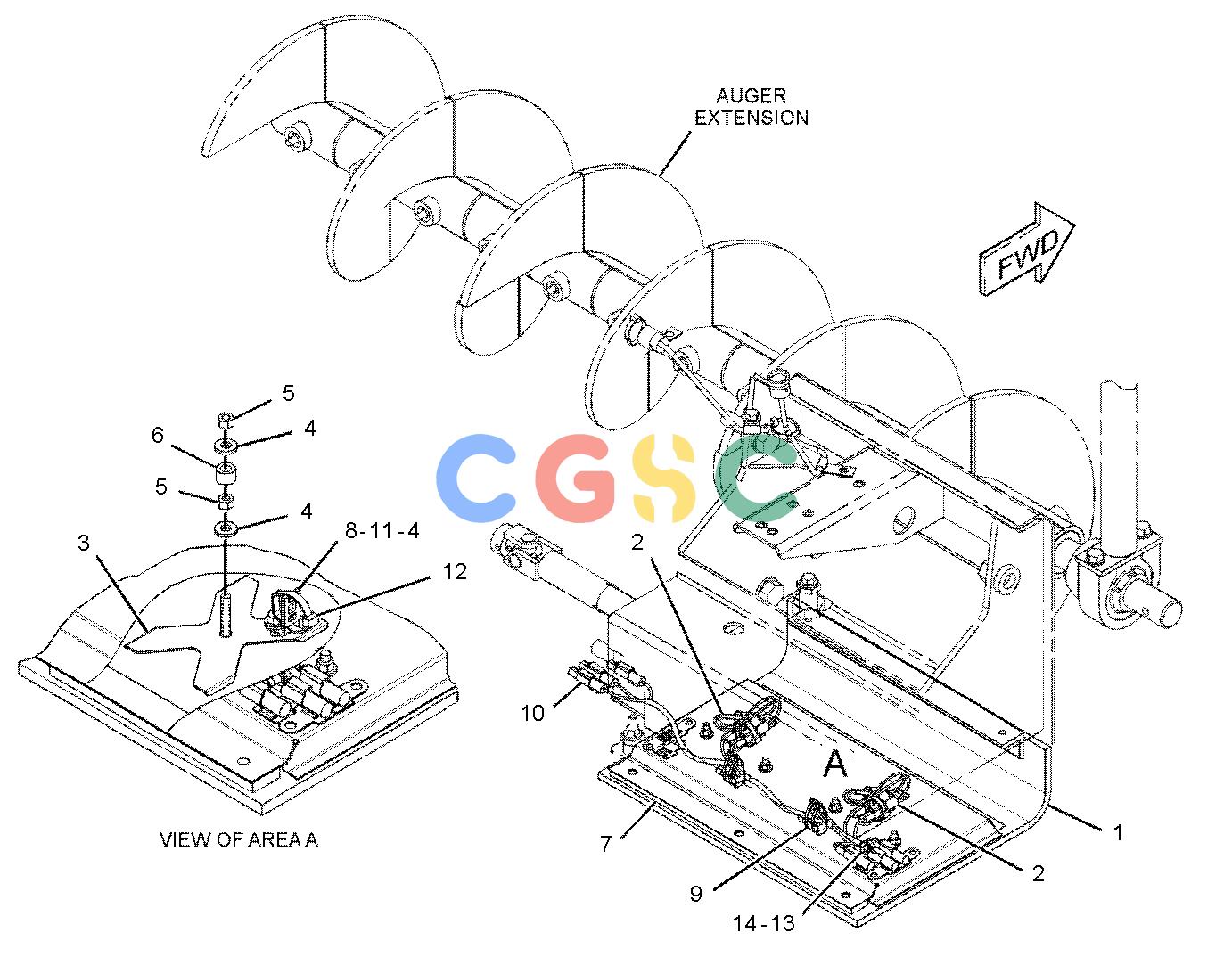

卡特零件查询（AS2301） 245-9080: PLATE GP-SCREED
广数供应链运营团队, 18 02月, 2025，浏览：
294 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 245-9067 | [1] | PLATE AS | |
| | 251-3262 | [4] | STUD-WELD(3/8-16X2-IN) | |
| 2. | 349-3008C | [2] | HEATER AS-SCREED(240-VOLT, 1180-WATT) | |
| | | | (EACH INCLUDES) |
| | 129-7164 | [2] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| 3. | 250-1075 | [4] | BRACKET | |
| 4. | 5P-1075C | [10] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 5. | 6V-8801 | [8] | NUT(3/8-16-THD) | |
| 6. | 251-1544 | [4] | SPACER(14.86X19.05X12.5-MM THK) | |
| 7. | 317-3227C | [1] | COVER AS | |
| 8. | 132-5789C | [2] | CLIP(LADDER) | |
| 9. | 3S-2093C | [4] | STRAP-CABLE | |
| 10. | 309-9227C | [1] | HARNESS AS-SCREED(HEATER ELEMENT) | |
| | 8N-1540 | [3] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 129-7163 | [10] | PLUG AS-CONNECTOR(1-PIN) | |
| | 8T-8737 | [6] | PLUG-SEAL | |
| | 129-7164 | [6] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| | 8N-1541 | [7] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| 11. | 5P-8167C | [2] | BOLT(3/8-16X0.625-IN) | |
| 12. | 7K-1181C | [2] | STRAP-CABLE | |
| 13. | 8T-4896C | [1] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 14. | 8T-9371C | [1] | BOLT(3/8-16X0.5-IN) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
