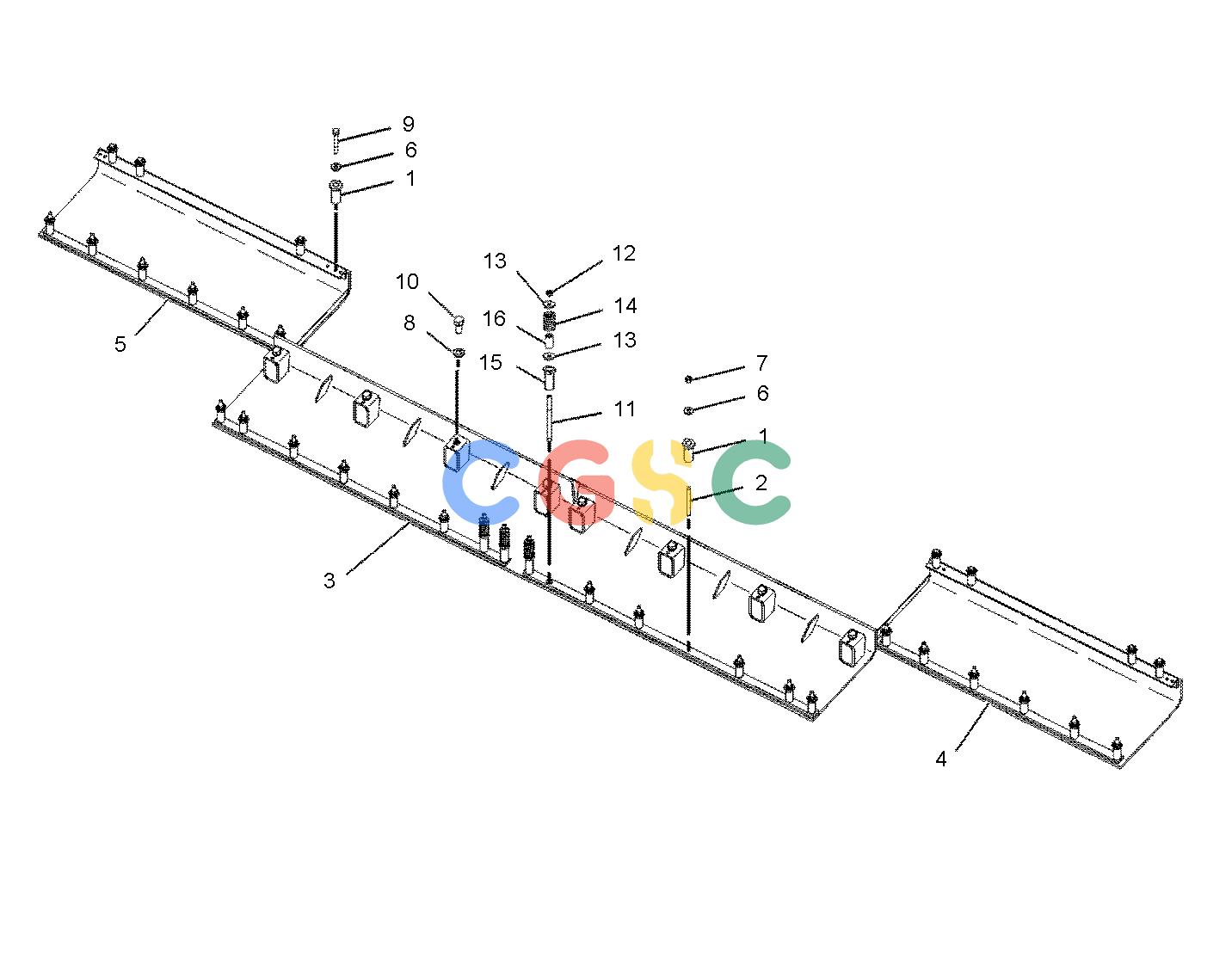

卡特零件查询（AS2301） 197-5293: PLATE GP-SCREED
广数供应链运营团队, 18 02月, 2025，浏览：
405 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0184 | [32] | NUT-ADJUSTMENT(1-1/4-12-THD) | |
| 2. | 8I-0212 | [24] | STUD(1/2-13X5-IN) | |
| 3. | 262-2005 | [1] | PLATE AS(MAIN) | |
| 4. | 162-7889 | [1] | PLATE AS(RH) | |
| 5. | 162-7890 | [1] | PLATE AS(LH) | |
| 6. | 5P-1076 | [32] | WASHER-HARD(13.5X30X4-MM THK) | |
| 7. | 6V-8188 | [24] | NUT(1/2-13-THD) | |
| 8. | 8T-4994 | [8] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 9. | 8T-9391 | [8] | BOLT(1/2-13X3.75-IN) | |
| 10. | 8T-9398 | [8] | BOLT(3/4-10X1.75-IN) | |
| 11. | 214-9169 | [4] | STUD(1/2-13X7.25-IN) | |
| 12. | 1K-6872 | [4] | LOCKNUT(1/2-13-THD) | |
| 13. | 7X-0618 | [8] | WASHER-HARD(13.5X40X5-MM THK) | |
| 14. | 4T-4630 | [4] | SPRING | |
| 15. | 185-5431 | [4] | BOLT-SPECIAL | |
| 16. | 6B-2038 | [4] | SPACER(1-9/16X1X1-23/32-IN THK) | |
