卡特零件查询（AS2301） 254-0054: PLATE & FILM GP
广数供应链运营团队, 18 02月, 2025，浏览：
159 次

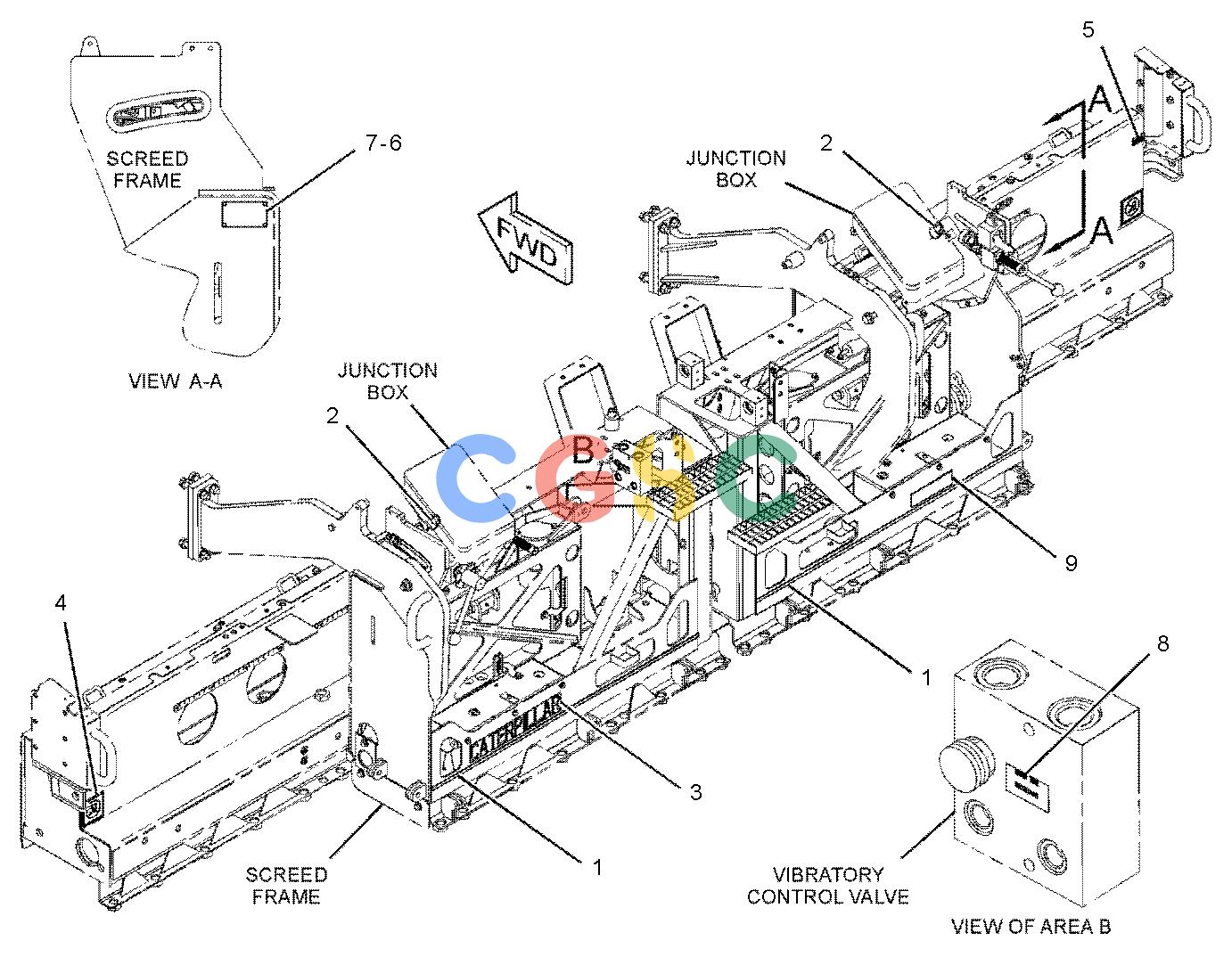

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 254-3225E | | FILM-STRIPE(RED ACCENT)(137-CM EACH) | |
| 2. | 246-2641 | [2] | PADLOCK GP | |
| | | | (EACH INCLUDES) |
| | 5P-8500A | [1] | KEY | |
| 3. | 9X-2433 | [1] | FILM-IDENTIFICATION(CATERPILLAR) | |
| 4. | 124-2456 | [2] | FILM-INSTRUCTION(NO STEP) | |
| 5. | 157-3579 | [2] | FILM-INSTRUCTION(GREASE) | |
| 6. | 168-8389 | [4] | TACK(METAL) | |
| 7. | 187-8168 | [1] | PLATE-SERIAL NUMBER | |
| 8. | 206-0313 | [1] | FILM-INFORMATION(SCREED CONTROL) | |
| 9. | 254-0074 | [1] | FILM-IDENTIFICATION(AS2301) | |
| | A | | NOT PART OF THIS GROUP |
| | E | | ORDER BY THE CENTIMETER |
