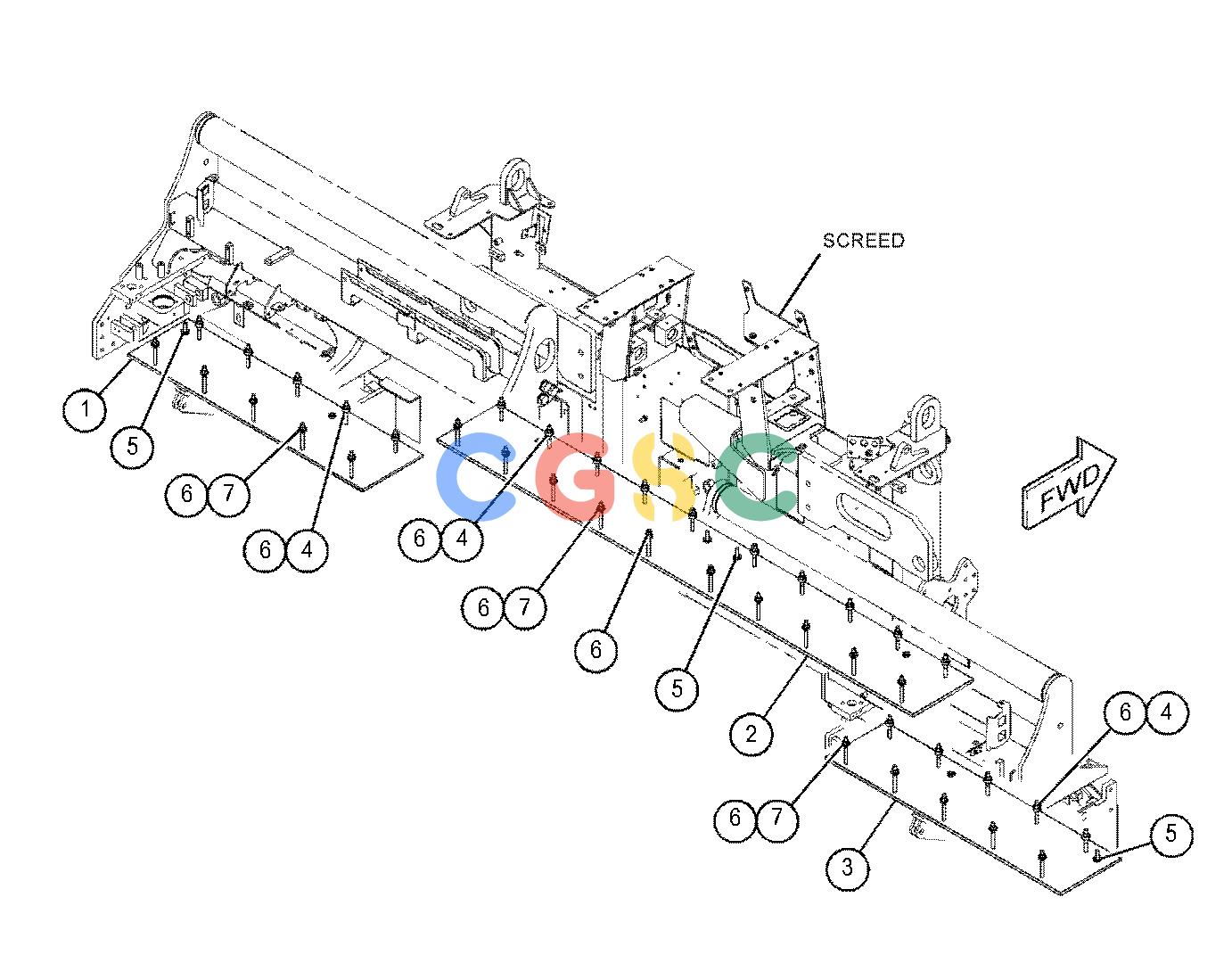

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 490-6473 | [1] | PLATE AS(LH) | |
| 098-5747M | [1] | NUT(M16X2-THD) | ||
| 2. | 490-6474 | [1] | PLATE AS(MAIN) | |
| 098-5747M | [2] | NUT(M16X2-THD) | ||
| 3. | 490-6475 | [1] | PLATE AS(RH) | |
| 098-5747M | [1] | NUT(M16X2-THD) | ||
| 4. | 198-4778 | [20] | WASHER-HARD(13.5X30X12-MM THK) | |
| 5. | 299-3424 | [4] | WASHER-HARD(17.5X30X6-MM THK) | |
| 6. | 329-3356M | [44] | NUT(M12X1.75-THD) | |
| 7. | 5P-1076 | [20] | WASHER-HARD(13.5X30X4-MM THK) | |
| M | METRIC PART | |||
