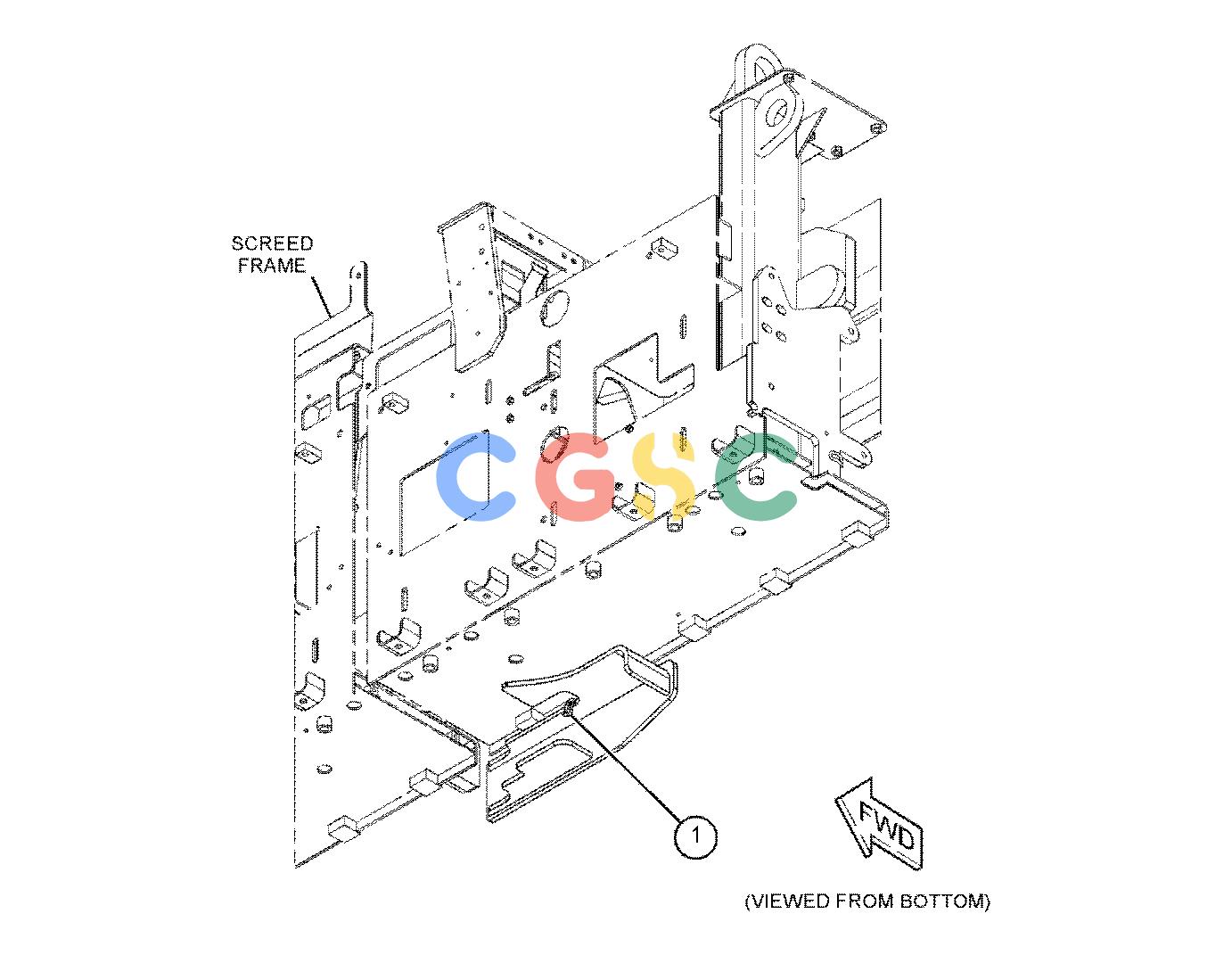

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 570-7691 | [1] | BAR | ||
| 570-7692 | [1] | BAR | ||
| 529-7400 | [1] | BAR-TAMPER | ||
| 529-7401 | [1] | BAR-TAMPER | ||
| 8T-4138M | [22] | BOLT(M6X1X20-MM) | ||
| 8T-4193M | [12] | BOLT(M16X2X50-MM) | ||
| 532-8853 | [22] | CLAMP | ||
| 8T-5089 | [12] | PIN-SPRING | ||
| 529-7412 | [2] | PLATE-WEAR | ||
| 570-7698 | [1] | PLATE-WEAR | ||
| 570-7699 | [1] | PLATE-WEAR | ||
| 6V-8454M | [16] | SCREW-HEX SOCKET(M8X1.25X16-MM) | ||
| 9X-8256 | [22] | WASHER(6.6X12X2-MM THK) | ||
| 7X-0515 | [16] | WASHER-HARD(17X35X5-MM THK) | ||
| M | METRIC PART | |||
