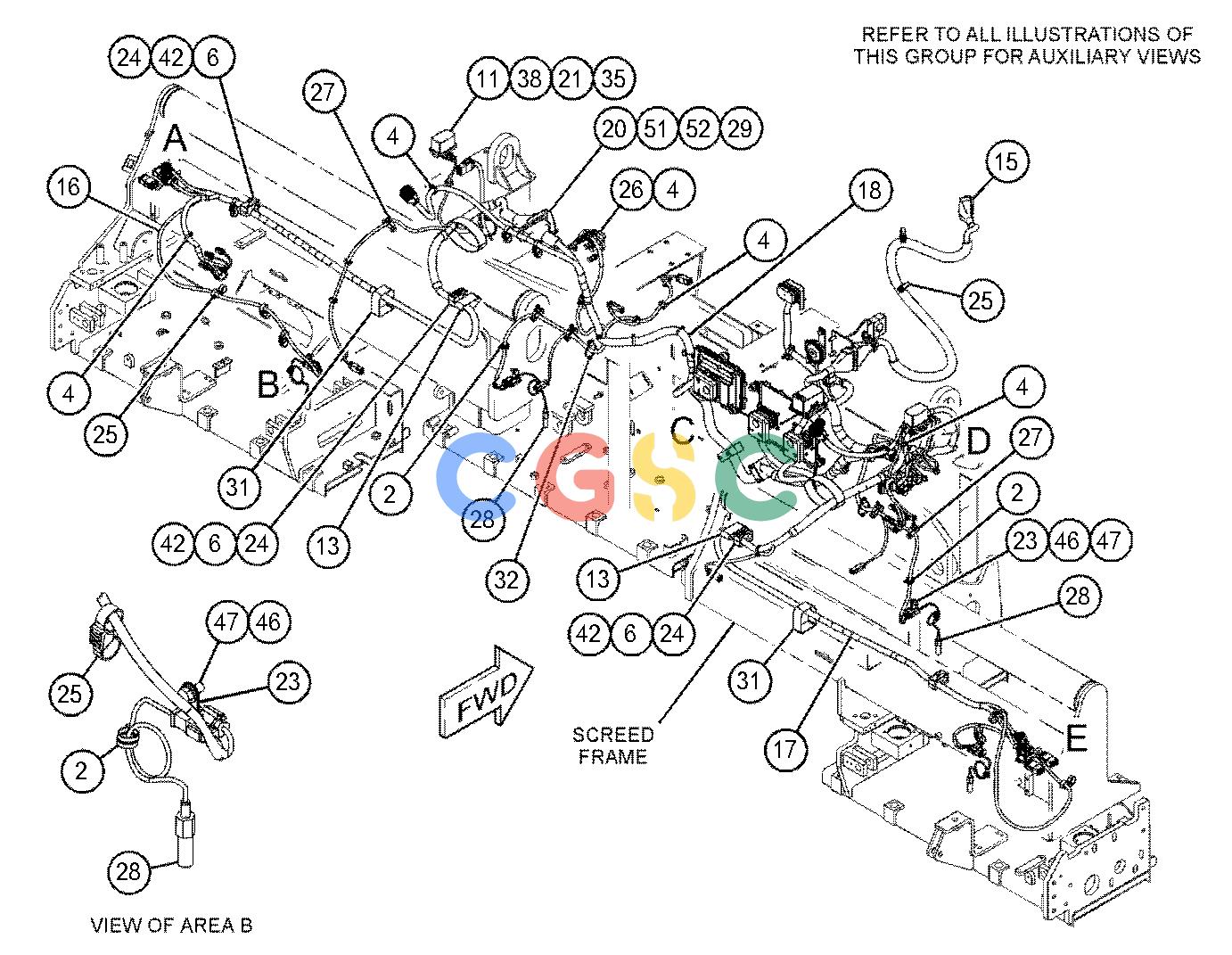

卡特零件查询（SE50） 437-0063: WIRING GP-SCREED
广数供应链运营团队, 18 02月, 2025，浏览：
702 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3E-5239 | [1] | RELAY AS(24-VOLT)(HORN) | |
| 2. | 3S-2093 | [12] | STRAP-CABLE | |
| 3. | 6I-1418 | [7] | SPACER(8.2X12.7X28.7-MM THK) | |
| 4. | 7K-1181 | [23] | STRAP-CABLE | |
| 5. | 8T-9655 | [14] | MOUNT-ISOLATION | |
| 6. | 102-8705 | [4] | PLATE(TOP) | |
| 7. | 132-8485 | [4] | NUT-RING | |
| 8. | 163-1201 | [1] | HORN AS(24-VOLT, LOW TONE) | |
| 9. | 169-5414 | [4] | CLIP | |
| 10. | 299-5744 | [1] | MODULE GP-RELAY DRIVER | |
| | 7X-6315 | [1] | STRAP AS-GROUND | |
| | 134-4126 | [1] | WASHER(4.52X8.28X0.76-MM THK) | |
| | 184-2472 | [1] | SCREW-PAN HEAD(8-32X0.375-IN) | |
| | 184-2471 | [15] | SCREW-PAN HEAD | |
| 11. | 327-6125 | [1] | LAMP GP-SIGNAL(24-VOLT, RH) | |
| 12. | 327-8515 | [1] | LAMP GP-SIGNAL(24-VOLT, LH) | |
| | | | (EACH LAMP GP INCLUDES) |
| | 230-4012 | [1] | RECEPTACLE AS-CONNECTOR(2-PIN) | |
| 13. | 364-4568 | [2] | STRAP | |
| 14. | 365-6773 | [1] | CONTROL GP-UNPROGRAMMED(ELECTRONIC) | |
| 15. | 399-9027 | [1] | HARNESS AS-SCREED(TRACTOR TO SCREED) | |
| | 8T-8737 | [8] | PLUG-SEAL | |
| | 9X-0141 | [2] | PLUG AS-CONNECTOR(40-PIN) | |
| | | | (EACH INCLUDES) |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 3E-8557M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 9X-3490 | [2] | SEAL-CONNECTOR(40-PIN) | |
| | 108-1304E | | TUBE-HEAT SHRINK(33-MM DIA)(27-CM) | |
| | 194-5226 | [72] | WIRE AS(16-GA) | |
| | | | -OR- |
| | 194-5227 | [72] | WIRE AS(14-GA) | |
| 16. | 438-1027Y | [1] | HARNESS AS-SCREED(EXTENDER, LH) | |
| 17. | 438-1028Y | [1] | HARNESS AS-SCREED(EXTENDER, RH) | |
| 18. | 438-1029Y | [1] | HARNESS AS-SCREED(MAIN) | |
| 19. | 452-4694 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| | 178-8510 | [1] | PLATE-WELD | |
| 20. | 453-7954 | [1] | PLATE AS | |
| | 9X-2032M | [2] | NUT-WELD(M4X0.7-THD) | |
| 21. | 096-6166 | [10] | WASHER-HARD(4.5X9X1-MM THK) | |
| 22. | 099-3649M | [7] | BOLT(M8X1.25X40-MM) | |
| 23. | 130-5300 | [9] | CLIP | |
| 24. | 154-4883 | [8] | CLAMP-HALF | |
| 25. | 177-2215B | [12] | STRAP-DUAL CLAMP | |
| 26. | 277-1873 | [1] | CLIP(LADDER) | |
| 27. | 327-0325 | [15] | STRAP-CABLE | |
| 28. | 336-2011 | [4] | SENSOR GP-TEMPERATURE | |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 29. | 344-5674M | [2] | NUT(M8X1.25-THD) | |
| 30. | 344-5675M | [2] | NUT(M10X1.5-THD) | |
| 31. | 364-4569 | [4] | STRAP | |
| 32. | 443-3962 | [5] | TIE | |
| 33. | 4B-4863 | [4] | WASHER(4.7X11X1.2-MM THK) | |
| 34. | 4P-8134 | [1] | CLIP(LADDER) | |
| 35. | 5C-8312M | [6] | NUT(M4X0.7-THD) | |
| 36. | 5P-4116 | [7] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 37. | 6V-7978 | [4] | SCREW-MACHINE(10-32X0.375-IN) | |
| 38. | 6V-9491M | [10] | SCREW-MACHINE(M4X0.7X20-MM) | |
| 39. | 7R-7940 | [4] | CLAMP | |
| 40. | 7R-7941 | [2] | CLAMP | |
| 41. | 7R-7951 | [3] | PLATE | |
| 42. | 7X-0818M | [4] | BOLT(M8X1.25X45-MM) | |
| 43. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 44. | 8C-8560 | [8] | SCREW-LOCK(4-40X0.5-IN) | |
| 45. | 8T-3844M | [2] | BOLT(M6X1X70-MM) | |
| 46. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 47. | 8T-4137M | [9] | BOLT(M10X1.5X20-MM) | |
| 48. | 8T-4171M | [1] | BOLT(M6X1X12-MM) | |
| 49. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 50. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 51. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 52. | 8T-7547M | [2] | BOLT(M8X1.25X30-MM) | |
| 53. | 9B-1117 | [8] | LOCKWASHER | |
| 54. | 9X-8267 | [1] | WASHER(6.6X12X2-MM THK) | |
| 55. | 7X-2535M | [4] | BOLT(M6X1X60-MM) | |
| 56. | 475-6217Y | [1] | HARNESS AS-SCREED | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
