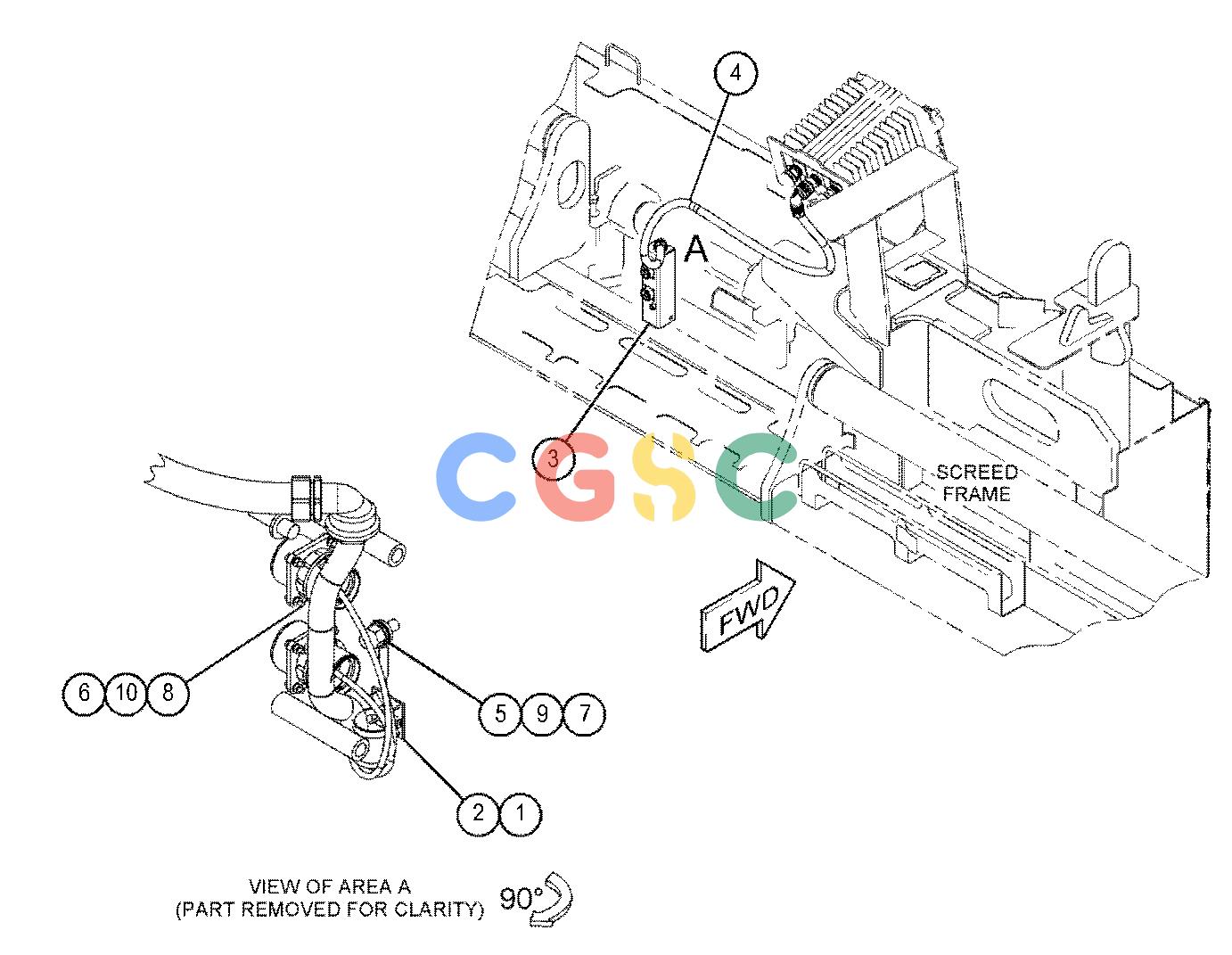

卡特零件查询（SE50） 491-2412: WIRING GP-SCREED HEATER
广数供应链运营团队, 18 02月, 2025，浏览：
616 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [1] | STRAP-CABLE | |
| 2. | 326-9726 | [1] | BASE-MOUNTING | |
| 3. | 436-0173 | [1] | BOX AS | |
| | 8T-3636M | [1] | STUD-WELD(M8X1.25X32-MM) | |
| | 110-2023M | [1] | STUD-WELD(M10X1.5X25-MM) | |
| | 436-0174 | [1] | BOX | |
| | 436-0200 | [2] | SPACER(10X16X75-MM THK) | |
| 4. | 491-2414Y | [1] | HARNESS AS-WIRING | |
| 5. | 124-7346 | [1] | LOCKWASHER | |
| 6. | 3C-6969M | [8] | NUT(M3X0.5-THD) | |
| 7. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 8. | 6V-9671M | [8] | SCREW-MACHINE(M3X0.5X12-MM) | |
| 9. | 8F-7242 | [1] | WASHER(8.7X15.9X1.6-MM THK) | |
| 10. | 9B-1117 | [8] | LOCKWASHER | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
