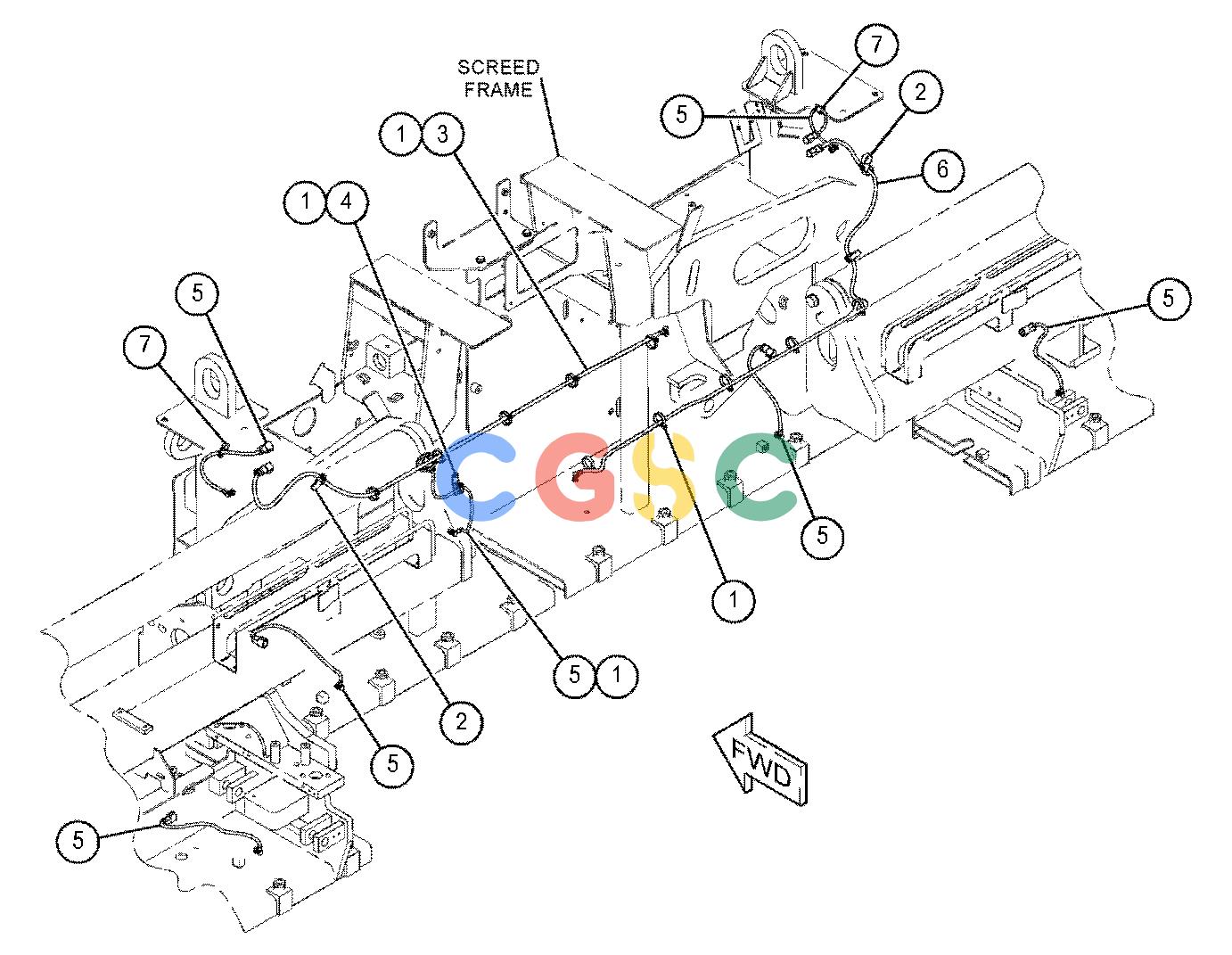

卡特零件查询（SE50） 451-0045: WIRING GP-SENSOR
广数供应链运营团队, 18 02月, 2025，浏览：
229 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [12] | STRAP-CABLE | |
| 2. | 177-2215 | [3] | STRAP-DUAL CLAMP | |
| 3. | 438-1060 | [1] | HARNESS AS-SENSOR(SCREED EXTENSION, LH) | |
| | 9X-3401 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 176-9299 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 4. | 4P-7581 | [1] | CLIP(LADDER) | |
| 5. | 438-1058 | [7] | HARNESS AS-SENSOR(HYDRAULIC CYLINDER) | |
| 6. | 438-1059 | [1] | HARNESS AS-SENSOR(SCREED EXTENSION, RH) | |
| | | | (EACH HARNESS AS INCLUDES) |
| | 9X-3401 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 176-9299 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 7. | 443-3962 | [2] | TIE | |
