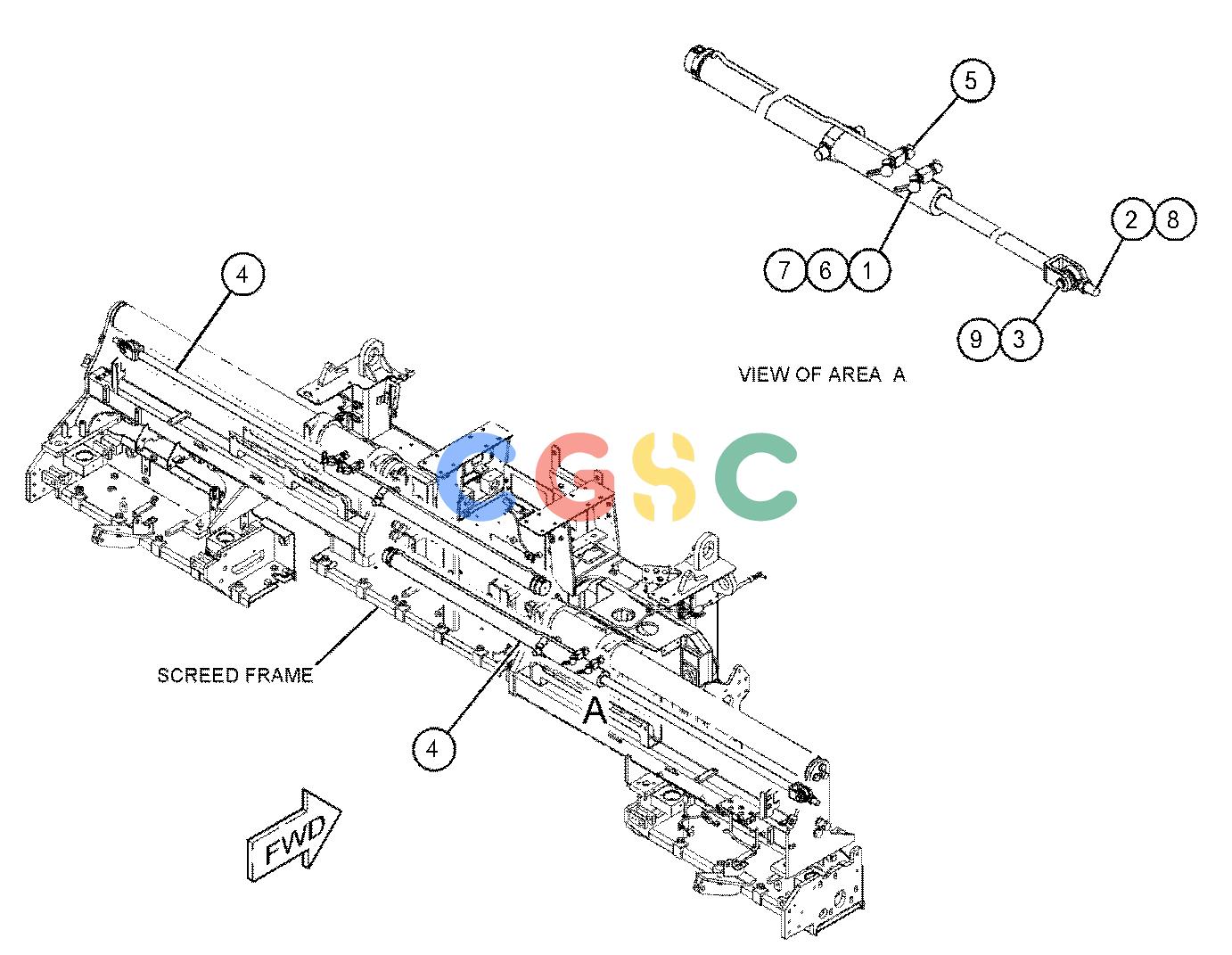

卡特零件查询（SE50） 438-1652: CYL & MTG GP-SCREED EXTENSION
广数供应链运营团队, 18 02月, 2025，浏览：
840 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [4] | CAP-DUST | |
| 2. | 287-2499M | [2] | NUT(M24X2-THD) | |
| 3. | 416-4827 | [2] | PIN-CLEVIS | |
| 4. | 437-2250Y | [2] | CYLINDER GP-HYDRAULIC | |
| 5. | 148-8353 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9001 | [1] | ELBOW | |
| 6. | 164-5567 | [4] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 7. | 165-4931 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8077 | [1] | ELBOW | |
| 8. | 253-3746 | [2] | ROD END | |
| 9. | 6K-8162 | [2] | RING-RETAINING | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
