卡特零件查询（SE50） 448-6978: LINES GP-AUXILIARY HYDRAULIC

广数供应链运营团队, 18 02月, 2025，浏览： 635 次

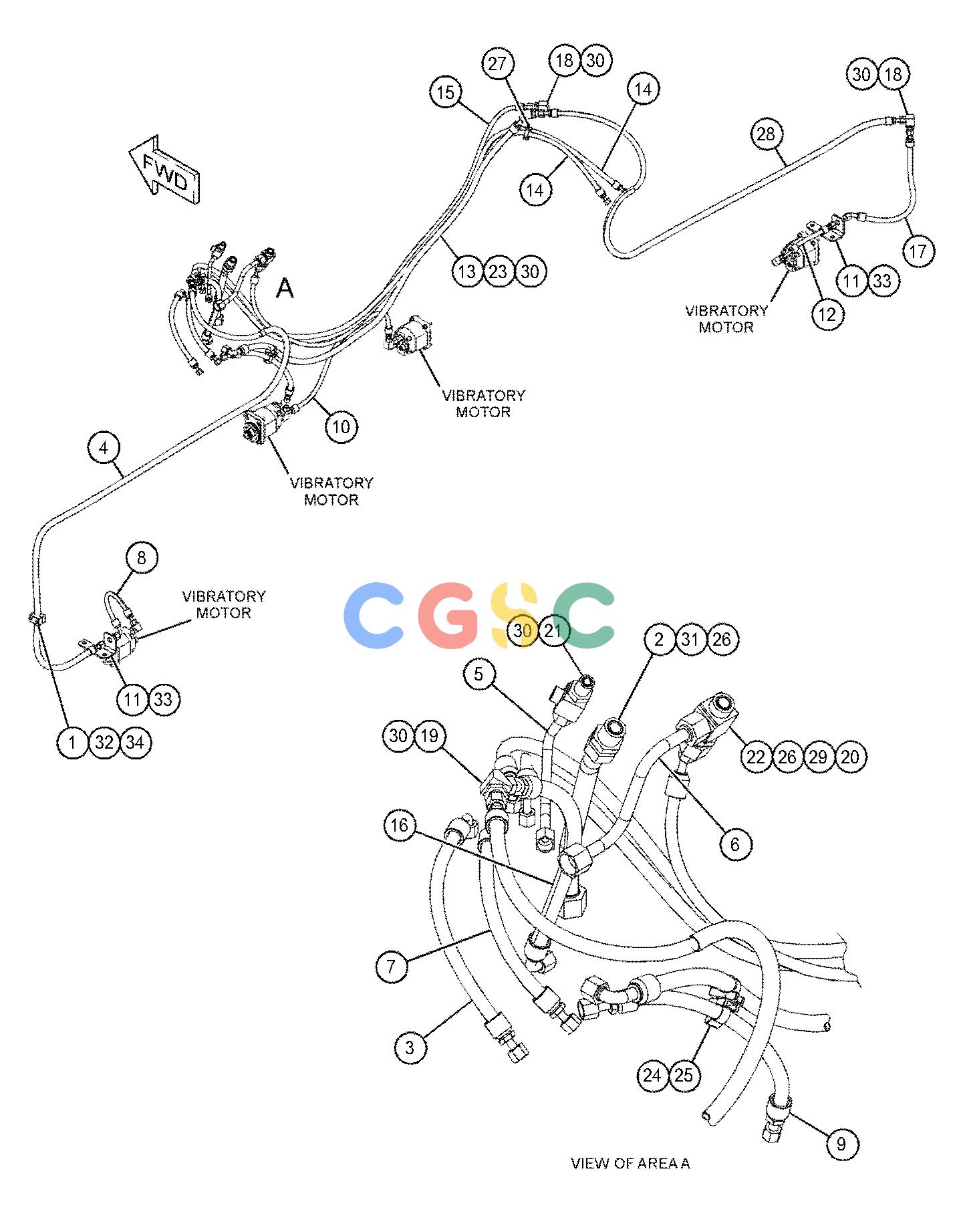

Pos.	Part No	Qty	Parts name
1.	7V-5628	[1]	PLATE(TOP)
2.	442-2494	[1]	TUBE AS
3.	444-1062I	[1]	HOSE AS
4.	448-6976I	[1]	HOSE AS
5.	448-6981	[1]	TUBE AS
6.	448-6982	[1]	TUBE AS
7.	449-4405I	[1]	HOSE AS
8.	449-4407I	[1]	HOSE AS
9.	449-4410I	[1]	HOSE AS
10.	449-4411I	[1]	HOSE AS
11.	452-1381	[2]	PLATE
12.	452-1388I	[1]	HOSE AS
13.	452-7958I	[1]	HOSE AS
14.	452-7960I	[2]	HOSE AS
15.	452-7961I	[1]	HOSE AS
16.	452-7962I	[1]	HOSE AS
17.	461-7492I	[1]	HOSE AS
18.	148-8375	[2]	ELBOW AS
			(EACH INCLUDES)
	6V-8398	[2]	SEAL-O-RING
	6V-8981	[1]	ELBOW
19.	148-8380	[1]	ELBOW AS
	6V-8398	[2]	SEAL-O-RING
	6V-8988	[1]	ELBOW
20.	148-8417	[1]	REDUCER AS
	6V-8397	[1]	SEAL-O-RING
	6V-8941	[1]	REDUCER
21.	148-8427	[1]	TEE AS
	6V-8398	[3]	SEAL-O-RING
	8T-6895	[1]	TEE-UNION
22.	164-6862	[1]	TEE AS
	6V-9160	[1]	TEE-FACE SEAL
	6V-9746	[3]	SEAL-O-RING
23.	185-5769	[1]	ELBOW AS
	6V-8398	[1]	SEAL-O-RING
	7J-9108	[1]	SEAL-O-RING
	8C-3251	[1]	ELBOW
24.	200-6345	[1]	SADDLE-MOUNTING(DUAL SWIVEL)
25.	204-2281	[2]	STRAP-CABLE
26.	2P-1293	[2]	LOCKNUT(1-3/16-12-THD)
27.	327-0325	[1]	STRAP-CABLE
28.	461-7487I	[1]	HOSE AS
29.	6V-8556	[1]	NUT(1-3/16-12-THD)
30.	6V-9169	[5]	NUT(13/16-16-THD)
31.	6V-9746	[1]	SEAL-O-RING
32.	7R-7908	[2]	CLAMP
33.	8T-4223	[4]	WASHER-HARD(13.5X25.5X3-MM THK)
34.	9X-2480M	[2]	BOLT(M6X1X45-MM)
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
