卡特零件查询（SE50） 471-7064: HOUSING GP-ECCENTRIC WEIGHT
广数供应链运营团队, 18 02月, 2025，浏览：
1016 次

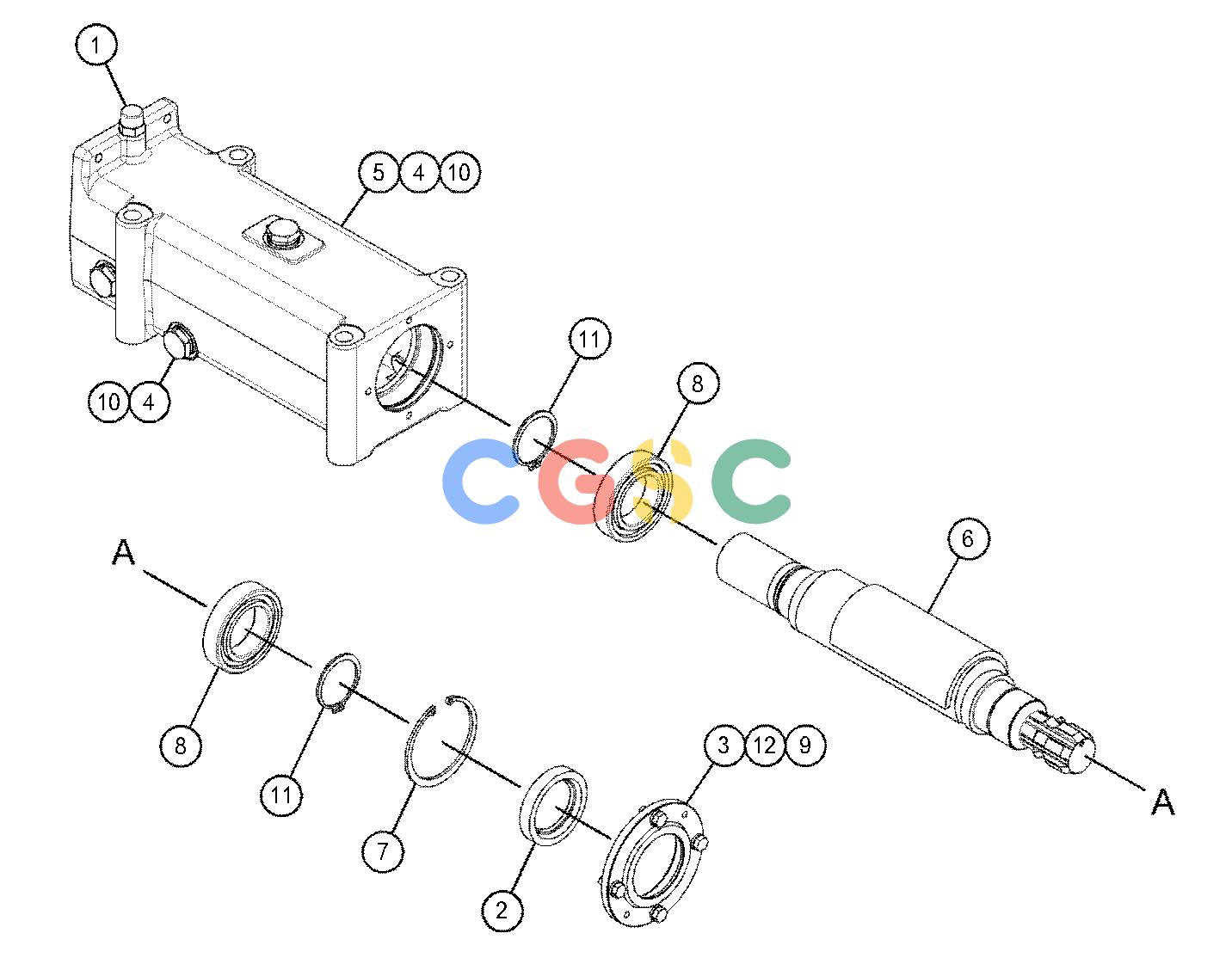

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 242-2249 | [1] | BREATHER(ECCENTRIC WEIGHT HOUSING) | |
| 2. | 242-2812 | [1] | SEAL-SHAFT | |
| 3. | 242-2882 | [1] | COVER | |
| 4. | 260-9146 | [5] | PLUG | |
| 5. | 437-8597 | [1] | HOUSING | |
| 6. | 471-7051 | [1] | SHAFT AS | |
| | 242-2886 | [1] | COUPLING | |
| 7. | 095-0941 | [1] | RING-RETAINING | |
| 8. | 4L-9825 | [2] | BALL BEARING | |
| 9. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 10. | 6V-0406 | [5] | SEAL-BONDED | |
| 11. | 8T-4240 | [2] | RING-RETAINING | |
| 12. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
