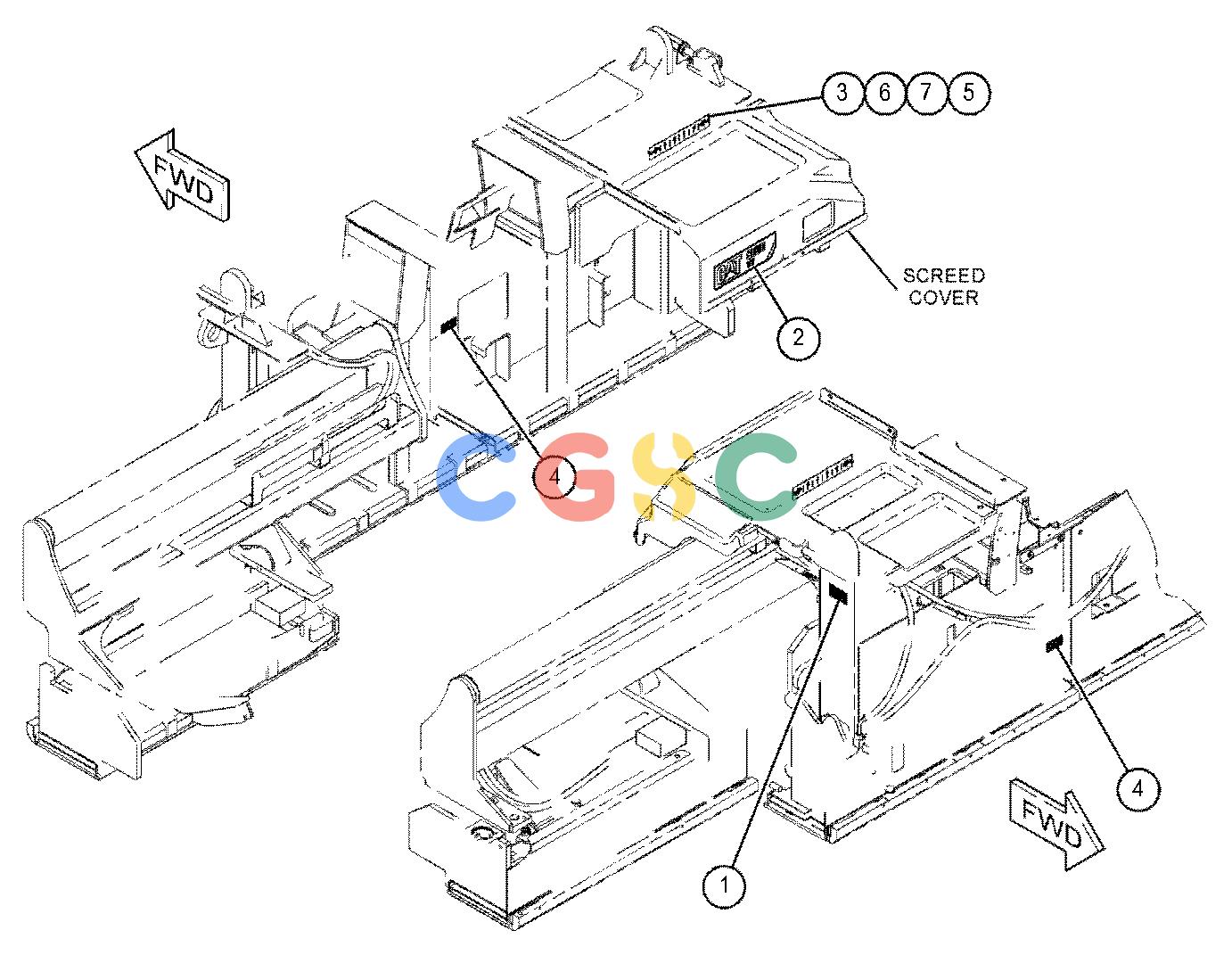

卡特零件查询（SE50） 540-9971: KIT-SERVICE REPAIR
广数供应链运营团队, 18 02月, 2025，浏览：
720 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 329-3356M | [84] | NUT(M12X1.75-THD) | |
| | 437-4350 | [1] | PLATE GP-SCREED(EXTENSION, LH) | |
| | 437-4351 | [1] | PLATE GP-SCREED(EXTENSION, RH) | |
| | | | (EACH PLATE GP INCLUDES) |
| | 350-7866M | [1] | STUD(M12X1.75X58-MM) | |
| | 419-4908M | [5] | STUD(M12X1.75X135-MM) | |
| | 448-9445M | [5] | STUD(M12X1.75X115-MM) | |
| | 518-5142 | [1] | PLATE GP-SCREED | |
| | 510-9818 | [1] | PLATE GP-SCREED(RH) | |
| | 510-9819 | [1] | PLATE GP-SCREED(LH) | |
| | | | (EACH PLATE GP INCLUDES) |
| | 350-7866M | [1] | STUD(M12X1.75X58-MM) | |
| | 419-4908M | [5] | STUD(M12X1.75X135-MM) | |
| | 448-9445M | [5] | STUD(M12X1.75X115-MM) | |
| | 039-8557 | [8] | WASHER(13X26X6-MM THK) | |
| | 5P-1076 | [40] | WASHER-HARD(13.5X30X4-MM THK) | |
| | M | | METRIC PART |
