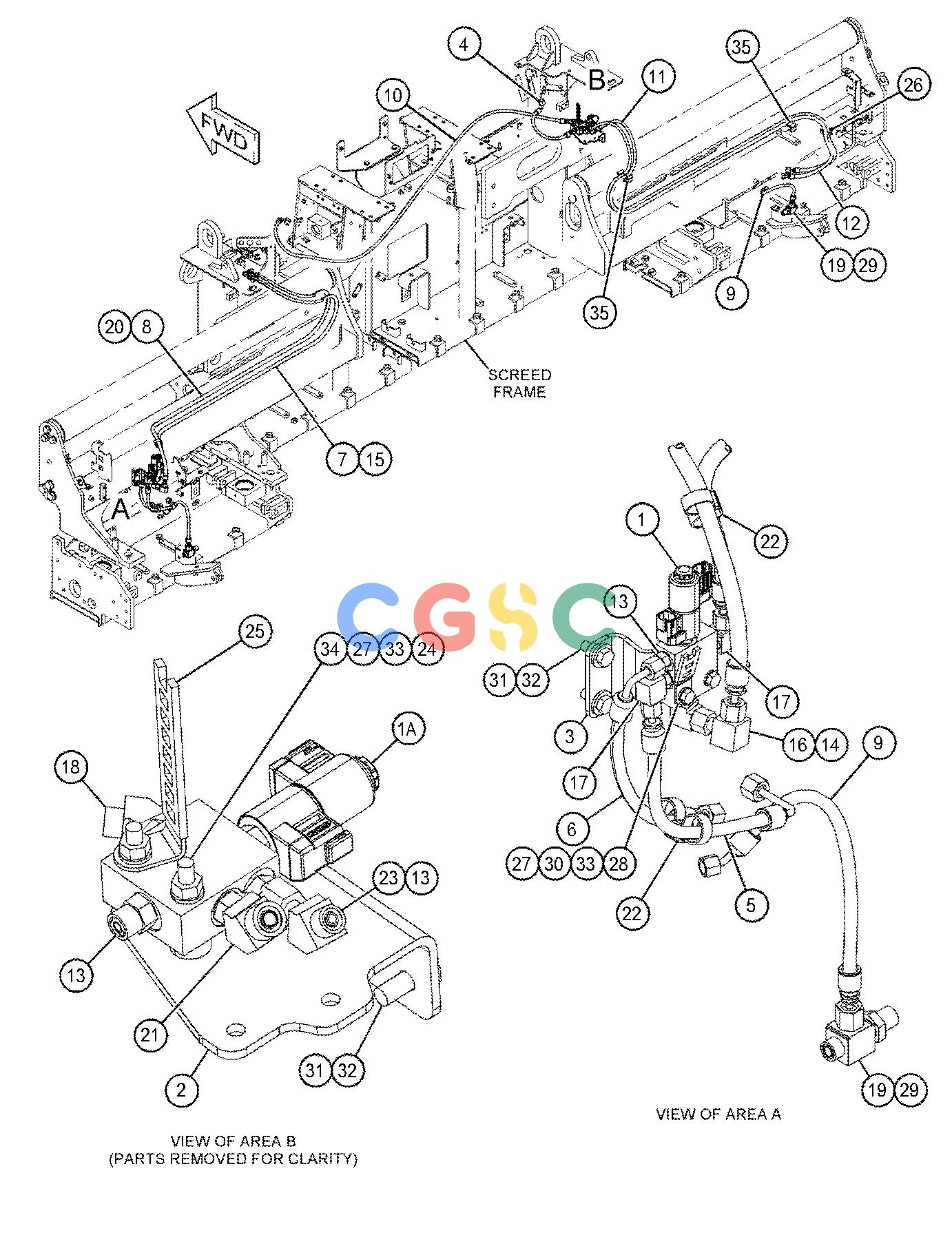

卡特零件查询（SE50） 437-0068: VALVE & MOUNTING GP
广数供应链运营团队, 18 02月, 2025，浏览：
662 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 543-9126 | [1] | VALVE GP-SOLENOID(EXTENDER, LH) | |
| 1A. | 543-9126 | [1] | VALVE GP-SOLENOID(EXTENDER, RH) | |
| | | | (EACH VALVE GP INCLUDES) |
| | 449-2540 | [2] | COIL(24-VOLT) | |
| | 454-7924J | [1] | VALVE GP-SOLENOID | |
| | 544-4963 | [1] | PLUG-ORIFICE | |
| 2. | 437-8898 | [1] | PLATE | |
| 3. | 442-2508 | [1] | PLATE | |
| 4. | 447-5453I | [1] | HOSE AS | |
| 5. | 447-5454I | [1] | HOSE AS | |
| 6. | 447-5455I | [1] | HOSE AS | |
| 7. | 447-5456I | [1] | HOSE AS | |
| 8. | 447-5457I | [1] | HOSE AS | |
| 9. | 448-6975I | [2] | HOSE AS | |
| 10. | 448-6983I | [1] | HOSE AS | |
| 11. | 456-8967I | [1] | HOSE AS | |
| 12. | 456-8968I | [1] | HOSE AS | |
| 13. | 148-8316 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8647 | [1] | CONNECTOR | |
| 14. | 148-8361 | [1] | ELBOW AS(90-DEG) | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9200 | [1] | ELBOW | |
| 15. | 148-8363 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9876 | [1] | ELBOW | |
| 16. | 148-8367 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 17. | 148-8369 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8628 | [1] | ELBOW | |
| 18. | 148-8385 | [1] | ELBOW AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-9000 | [1] | ELBOW | |
| 19. | 148-8427 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [3] | SEAL-O-RING | |
| | 8T-6895 | [1] | TEE-UNION | |
| 20. | 150-3033 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8T-0164 | [1] | ELBOW | |
| 21. | 164-7908 | [1] | ELBOW AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8T-7546 | [1] | ELBOW | |
| 22. | 177-2215 | [2] | STRAP-DUAL CLAMP | |
| 23. | 187-2120 | [1] | ELBOW AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8C-8408 | [1] | ELBOW | |
| 24. | 198-4776 | [2] | WASHER-HARD(8.8X20X8-MM THK) | |
| 25. | 277-1873 | [1] | CLIP(LADDER) | |
| 26. | 327-0325 | [1] | STRAP-CABLE | |
| 27. | 344-5674M | [4] | NUT(M8X1.25-THD) | |
| 28. | 4P-7581 | [1] | CLIP(LADDER) | |
| 29. | 6V-9169 | [2] | NUT(13/16-16-THD) | |
| 30. | 7X-0818M | [2] | BOLT(M8X1.25X45-MM) | |
| 31. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 32. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 33. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 34. | 8T-6869M | [2] | BOLT(M8X1.25X60-MM) | |
| 35. | 6I-1418 | [8] | SPACER(8.2X12.7X28.7-MM THK) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 446-1412J | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS & BACKUP RINGS) |
| | 446-5507J | [1] | KIT-NUT | |
| | | | (INCLUDES COIL-NUT & O-RING SEALS) |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
