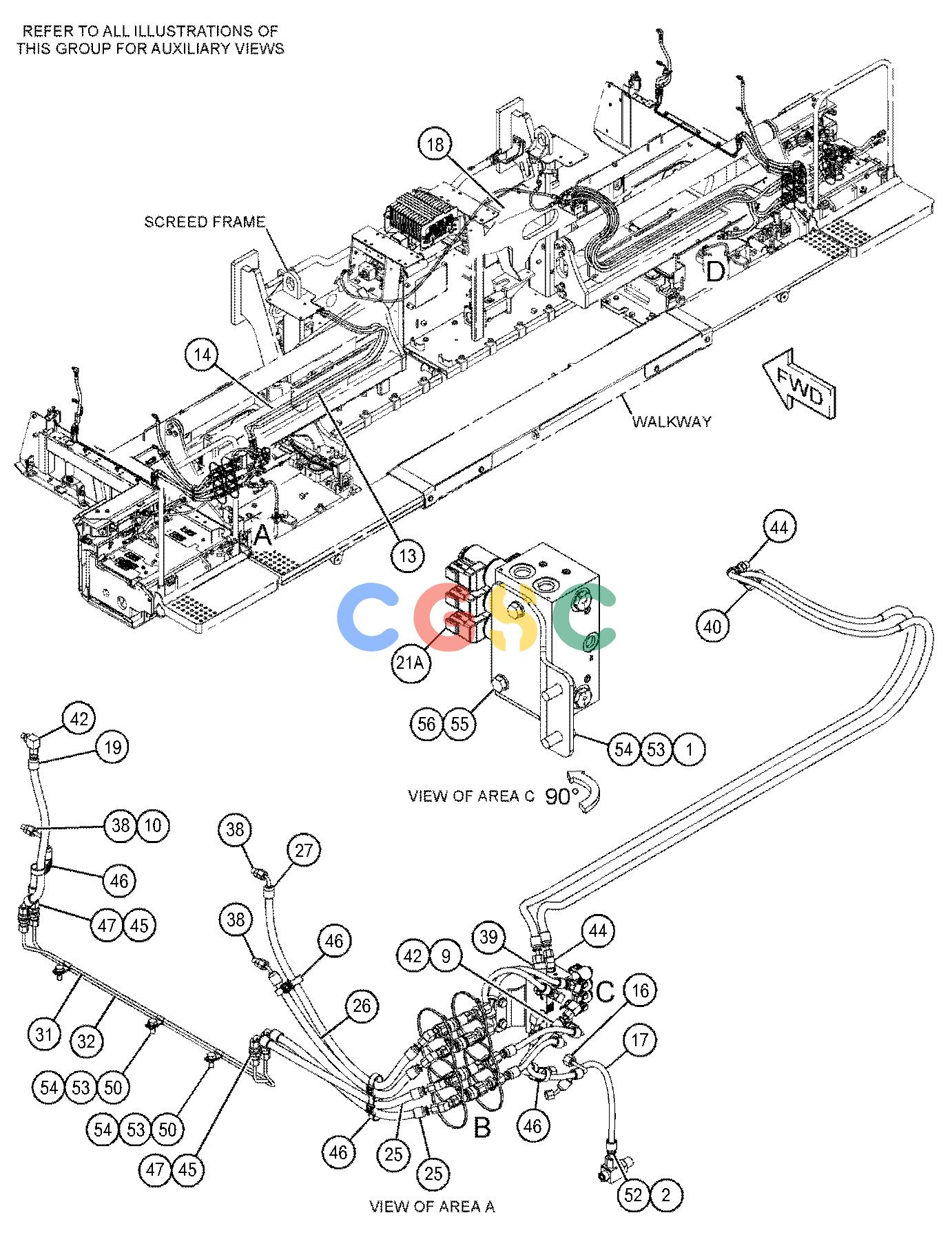

卡特零件查询（SE50） 473-2326: VALVE & MOUNTING GP
广数供应链运营团队, 18 02月, 2025，浏览：
497 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 473-2327 | [1] | PLATE | |
| 2. | 148-8427 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [3] | SEAL-O-RING | |
| | 8T-6895 | [1] | TEE-UNION | |
| 3. | 152-8181 | [8] | FITTING(QUICK DISCONNECT, MALE) | |
| 4. | 204-5098 | [8] | FITTING AS(QUICK DISCONNECT, FEMALE) | |
| 5. | 250-1418 | [8] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 089-7702 | [1] | CONNECTOR | |
| 6. | 352-4202 | [4] | STRAP-CABLE | |
| 7. | 352-4203 | [4] | STRAP-CABLE | |
| 8. | 352-4204 | [4] | STRAP-CABLE | |
| 9. | 416-4806I | [1] | HOSE AS | |
| 10. | 436-1467I | [2] | HOSE AS | |
| 11. | 437-8898 | [1] | PLATE | |
| 12. | 447-5446I | [1] | HOSE AS | |
| 13. | 447-5450I | [1] | HOSE AS | |
| 14. | 447-5451I | [1] | HOSE AS | |
| 15. | 447-5453I | [1] | HOSE AS | |
| 16. | 447-5454I | [1] | HOSE AS | |
| 17. | 448-6975I | [2] | HOSE AS | |
| 18. | 448-6983I | [1] | HOSE AS | |
| 19. | 451-5633I | [2] | HOSE AS | |
| 20. | I | [1] | HOSE AS |
| 21. | 543-9127Y | [1] | VALVE GP-SOLENOID(EXTENDER CONTROL, RH) | |
| 21A. | 543-9127Y | [1] | VALVE GP-SOLENOID(EXTENDER CONTROL, LH) | |
| 22. | 473-9667I | [1] | HOSE AS | |
| 23. | 473-9668I | [1] | HOSE AS | |
| 24. | 473-9669I | [1] | HOSE AS | |
| 25. | 473-9670I | [2] | HOSE AS | |
| 26. | 473-9671I | [1] | HOSE AS | |
| 27. | 473-9672I | [1] | HOSE AS | |
| 28. | 473-9673I | [2] | HOSE AS | |
| 29. | 473-9675I | [1] | HOSE AS | |
| 30. | 473-9676I | [1] | HOSE AS | |
| 31. | 473-9677 | [2] | TUBE AS | |
| 32. | 473-9678 | [2] | TUBE AS | |
| 33. | 473-9679I | [1] | HOSE AS | |
| 34. | 473-9680I | [1] | HOSE AS | |
| 35. | 475-3832I | [1] | HOSE AS | |
| 36. | 476-1007I | [1] | HOSE AS | |
| 37. | 476-1008I | [1] | HOSE AS | |
| 38. | 148-8316 | [8] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8647 | [1] | CONNECTOR | |
| 39. | 148-8353 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9001 | [1] | ELBOW | |
| 40. | 148-8363 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9876 | [1] | ELBOW | |
| 41. | 148-8368 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8627 | [1] | ELBOW | |
| 42. | 148-8369 | [7] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8628 | [1] | ELBOW | |
| 43. | 148-8385 | [5] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-9000 | [1] | ELBOW | |
| 44. | 150-3033 | [11] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8T-0164 | [1] | ELBOW | |
| 45. | 150-4052 | [8] | UNION AS | |
| | | | (EACH INCLUDES) |
| | 4J-5477 | [2] | SEAL-O-RING | |
| | 6V-8993 | [1] | UNION | |
| 46. | 177-2215 | [7] | STRAP-DUAL CLAMP | |
| 47. | 2P-1279 | [8] | LOCKNUT(9/16-18-THD) | |
| 48. | 327-0325 | [4] | STRAP-CABLE | |
| 49. | 352-4200 | [4] | STRAP-CABLE | |
| 50. | 3L-2875 | [12] | CLIP | |
| 51. | 6V-9168 | [8] | NUT(11/16-16-THD) | |
| 52. | 6V-9169 | [2] | NUT(13/16-16-THD) | |
| 53. | 8T-4121 | [10] | WASHER-HARD(11X21X2.5-MM THK) | |
| 54. | 8T-4136M | [10] | BOLT(M10X1.5X25-MM) | |
| 55. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 56. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
