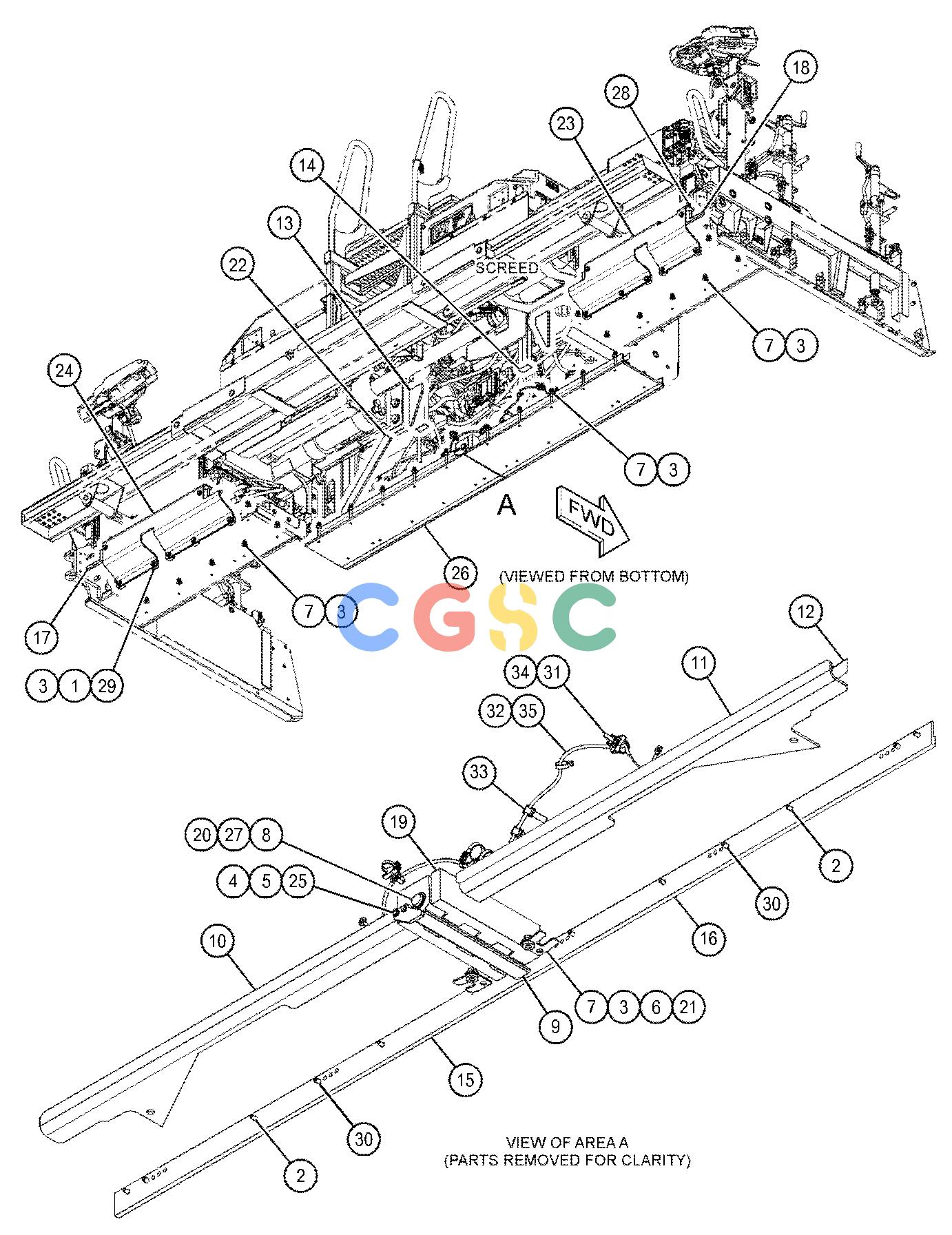

卡特零件查询（SE50） 522-7636: FRAME GP-SCREED
广数供应链运营团队, 18 02月, 2025，浏览：
1012 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-4192M | [14] | BOLT(M12X1.75X25-MM) | |
| 2. | 8T-4200M | [8] | BOLT(M8X1.25X16-MM) | |
| 3. | 5P-1076 | [56] | WASHER-HARD(13.5X30X4-MM THK) | |
| 4. | 6V-7357M | [2] | BOLT(M6X1X25-MM) | |
| 5. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 6. | 039-8557 | [2] | WASHER(13X26X6-MM THK) | |
| 7. | 329-3356M | [82] | NUT(M12X1.75-THD) | |
| 8. | 454-8452 | [2] | RING-RETAINING | |
| 9. | 491-2393 | [1] | PLATE-SEAL | |
| 10. | 510-0056 | [1] | PLATE | |
| 11. | 510-0057 | [1] | PLATE | |
| 12. | 510-0058 | [4] | GUSSET(LOWER) | |
| 13. | 510-0060 | [2] | GUSSET-UPPER | |
| 14. | 510-0061 | [2] | PLATE(CAP) | |
| 15. | 510-9816 | [1] | PLATE-WEAR | |
| 16. | 510-9817 | [1] | PLATE-WEAR | |
| 17. | 510-9986 | [2] | PLATE | |
| 18. | 510-9987 | [2] | PLATE | |
| 19. | 512-1756 | [2] | BAR(HINGE) | |
| 20. | 512-1757 | [1] | PIN | |
| 21. | 514-3889 | [2] | PLATE | |
| 22. | 517-3626 | [2] | PLATE | |
| 23. | 518-0196 | [1] | PLATE | |
| 24. | 518-0197 | [1] | PLATE | |
| 25. | 518-5043 | [1] | PLATE | |
| 26. | 518-5142 | [1] | PLATE GP-SCREED | |
| | 510-9818 | [1] | PLATE GP-SCREED(RH) | |
| | 510-9819 | [1] | PLATE GP-SCREED(LH) | |
| | | | (EACH PLATE GP-SCREED INCLUDES) |
| | 350-7866M | [1] | STUD(M12X1.75X58-MM) | |
| | 419-4908M | [5] | STUD(M12X1.75X135-MM) | |
| | 448-9445M | [5] | STUD(M12X1.75X115-MM) | |
| 27. | 528-3259 | [6] | BEARING-SLEEVE | |
| 28. | 327-0325 | [2] | STRAP-CABLE | |
| 29. | 7Y-9308 | [10] | BAR | |
| 30. | 8T-5089 | [6] | PIN-SPRING | |
| 31. | 7K-1181 | [5] | STRAP-CABLE | |
| 32. | 7P-1695 | [2] | WASHER(10.5X19X3-MM THK) | |
| 33. | 177-2215 | [4] | STRAP-DUAL CLAMP | |
| 34. | 200-6345 | [2] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 35. | 528-7731 | [1] | WIRE AS-GROUND | |
| | M | | METRIC PART |
