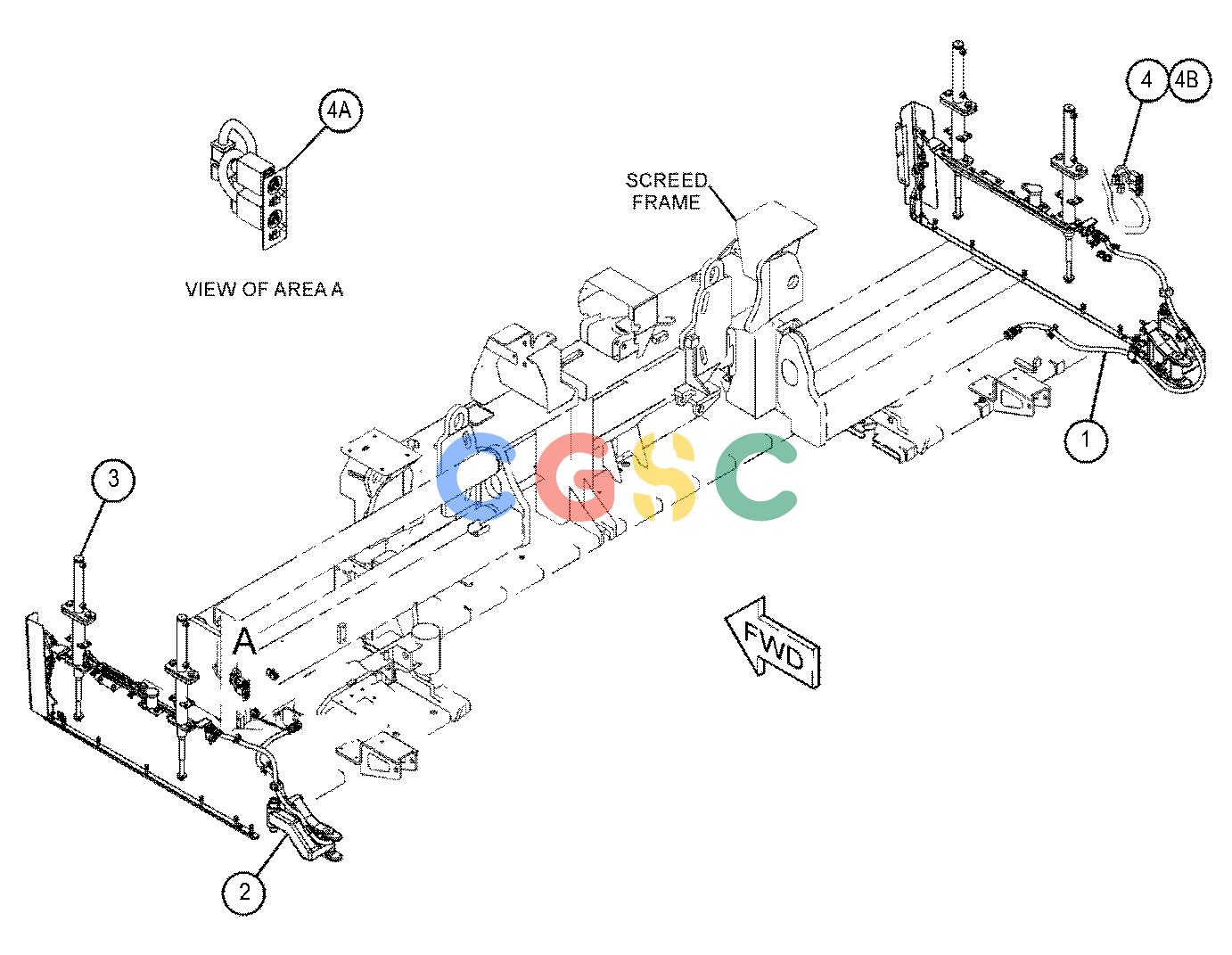

卡特零件查询（SE50） 473-3327: GATE GP-END
广数供应链运营团队, 18 02月, 2025，浏览：
943 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 438-1030Y | [1] | HEATER GP-GATE | |
| 2. | 443-3557Y | [1] | HINGE GP-END GATE | |
| 3. | 475-3831Y | [1] | CYLINDER & MTG GP-HYDRAULIC | |
| 4. | 475-7031 | [1] | SWITCH GP-TOGGLE(POWER END GATE)(END GATE) | |
| 4A. | 481-8933 | [1] | FILM-IDENTIFICATION(END GATE)(LH) | |
| 4B. | 482-9064 | [1] | FILM-IDENTIFICATION(END GATE)(RH) | |
| | 172-9200 | [4] | SUPPRESSOR-ARC | |
| | 308-3527 | [4] | SWITCH AS-TOGGLE(END GATE RAISE, LOWER) | |
| | | | (EACH INCLUDES) |
| | 8T-8729 | [6] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | Y | | SEPARATE ILLUSTRATION |
