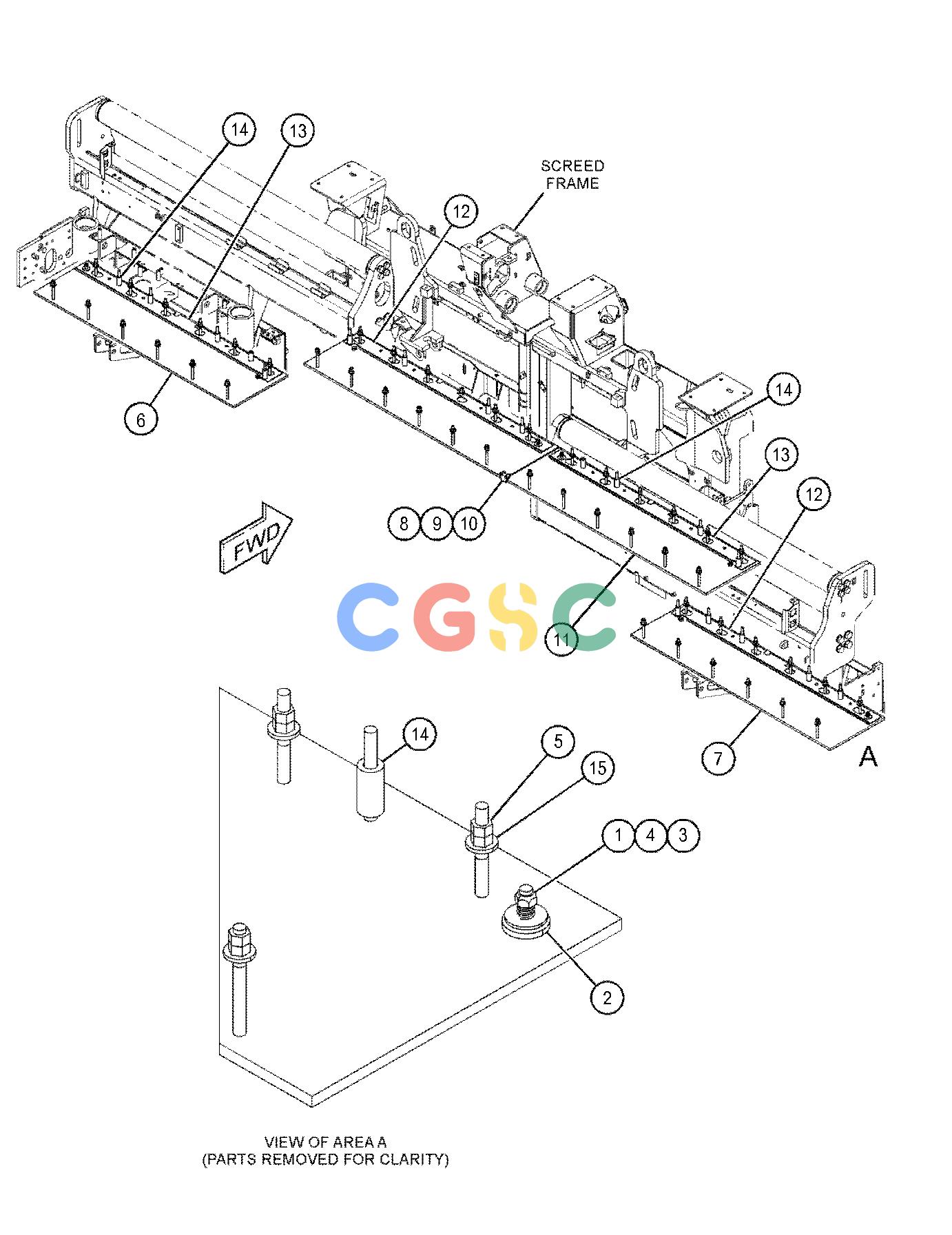

卡特零件查询（SE50） 526-7312: PLATE GP-SCREED
广数供应链运营团队, 18 02月, 2025，浏览：
797 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-7687M | [4] | LOCKNUT(M12X1.75-THD) | |
| 2. | 7X-0582 | [4] | WASHER-HARD(20X44.5X6-MM THK) | |
| 3. | 8T-4821 | [4] | WASHER(13.5X40X3-MM THK) | |
| 4. | 468-7390 | [4] | SPRING | |
| 5. | 329-3356M | [96] | NUT(M12X1.75-THD) | |
| 6. | 513-8959 | [1] | PLATE AS(LH) | |
| 7. | 513-8961 | [1] | PLATE AS(RH) | |
| | | | (EACH PLATE AS INCLUDES) |
| | 098-5747M | [1] | NUT(M16X2-THD) | |
| 8. | 7X-2533M | [2] | BOLT(M6X1X35-MM) | |
| 9. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 10. | 522-7613H | [1] | PLATE-WIPER | |
| | | | -OR- |
| | 523-5159J | [1] | PLATE | |
| 11. | 526-7254 | [1] | PLATE AS-SCREED | |
| | 526-7251 | [1] | PLATE AS-MAIN | |
| | 526-7252 | [1] | PLATE AS-MAIN | |
| | | | (EACH PLATE AS INCLUDES) |
| | 098-5747M | [1] | NUT(M16X2-THD) | |
| 12. | 553-0224 | [2] | PLATE-CLAMP | |
| 13. | 553-0229 | [2] | PLATE-CLAMP | |
| 14. | 553-1180 | [18] | TUBE | |
| 15. | 5P-1076 | [48] | WASHER-HARD(13.5X30X4-MM THK) | |
| | H | | WHEN USED WITH FACTORY INSTALLED HINGE |
| | J | | WHEN USED WITH FIELD REWORK KIT HINGE |
| | M | | METRIC PART |
