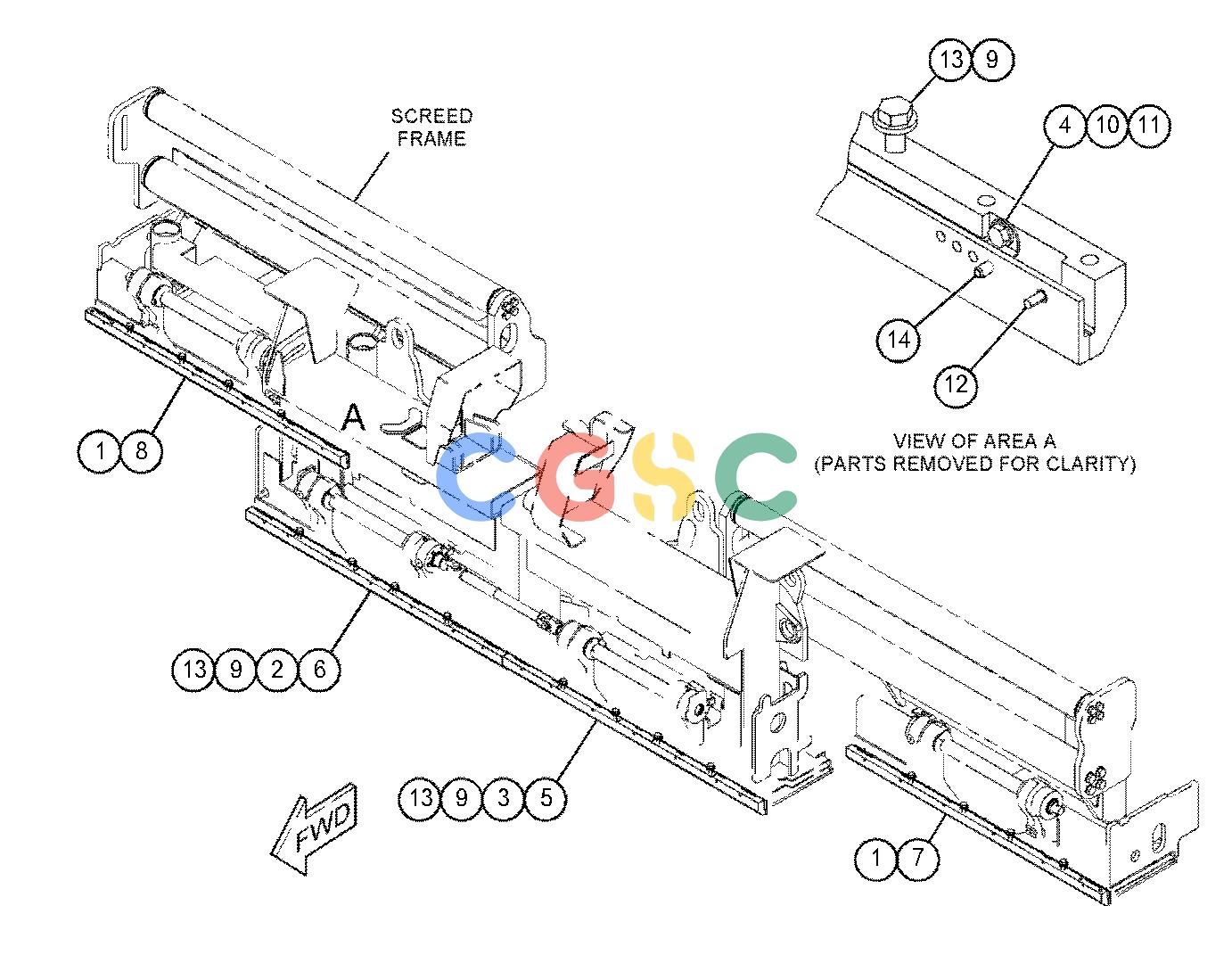

卡特零件查询（SE50） 390-4843: BAR GP-TAMPER
广数供应链运营团队, 18 02月, 2025，浏览：
229 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 393-0063 | [2] | PLATE-WEAR | |
| 2. | 510-8256C | [1] | PLATE-WEAR | |
| 3. | 510-8257C | [1] | PLATE-WEAR | |
| 4. | 476-8641 | [26] | CLAMP | |
| 5. | 510-8254C | [1] | BAR-TAMPER | |
| 6. | 510-8255C | [1] | BAR-TAMPER | |
| 7. | 479-1839 | [1] | BAR-TAMPER | |
| 8. | 479-1840 | [1] | BAR-TAMPER | |
| 9. | 7X-0515 | [16] | WASHER-HARD(17X35X5-MM THK) | |
| 10. | 8T-4121 | [26] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4137M | [26] | BOLT(M10X1.5X20-MM) | |
| 12. | 8T-4200CM | [20] | BOLT(M8X1.25X16-MM) | |
| 13. | 8T-4193M | [16] | BOLT(M16X2X50-MM) | |
| 14. | 8T-5089 | [16] | PIN-SPRING | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
