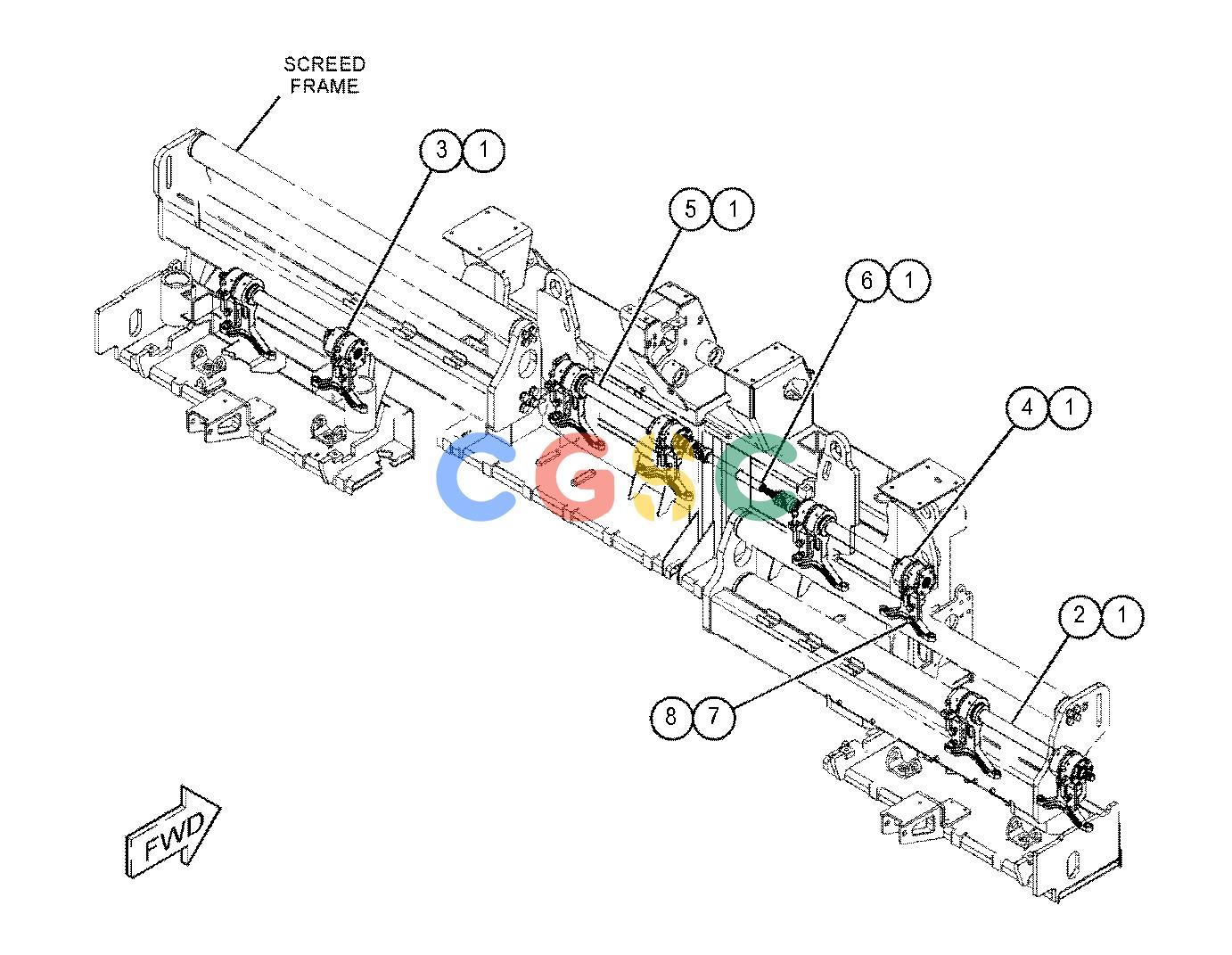

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 394-7239 | [8] | ADJUSTER | |
| 2. | 471-7056Y | [1] | TAMPER GP-SCREED(EXTENSION, RH) | |
| 3. | 471-7057Y | [1] | TAMPER GP-SCREED(EXTENSION, LH) | |
| 4. | 471-7058Y | [1] | TAMPER GP-SCREED(MAIN, RH) | |
| 5. | 471-7059Y | [1] | TAMPER GP-SCREED(MAIN, LH) | |
| 6. | 474-5725 | [1] | SHAFT | |
| 7. | 7X-0515 | [16] | WASHER-HARD(17X35X5-MM THK) | |
| 8. | 8T-4140M | [16] | BOLT(M16X2X60-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
