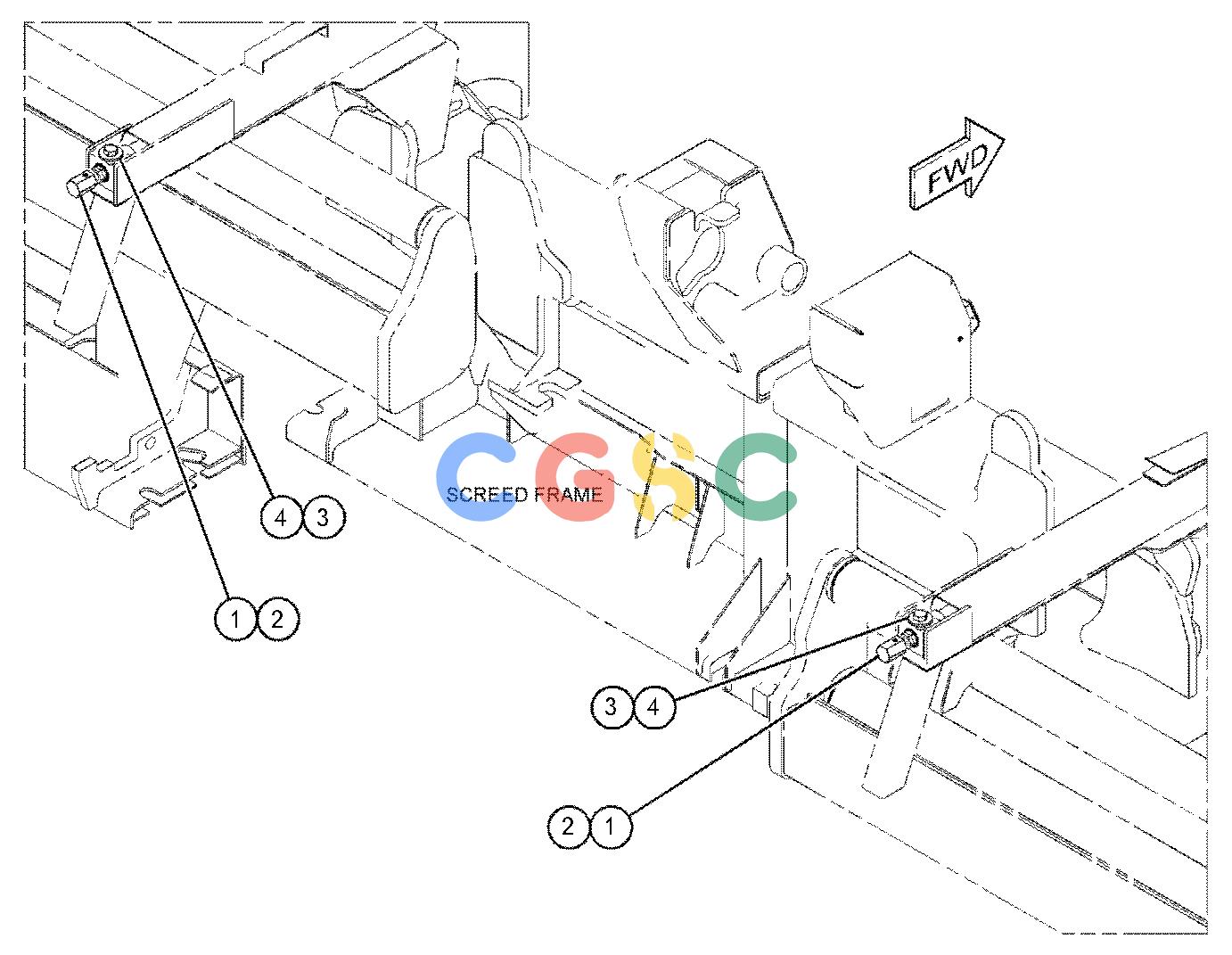

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 135-8177 | [2] | LOCKOUT | |
| 2. | 249-0924 | [2] | HANDLE | |
| 3. | 277-3184 | [2] | FILM-INSTRUCTION(MAT THICKNESS, CW TO INCREASE) | |
| 4. | 279-6480 | [2] | ROD | |
| 5. | 456-3076 | [2] | HANDLE AS | |
| 6. | 1J-8136 | [2] | PIN-SPRING | |
| 7. | 204-3389 | [2] | BOLT-SPECIAL | |
| 8. | 208-7492M | [2] | NUT(M20X2.5-THD) | |
| 9. | 6V-7743M | [2] | LOCKNUT(M6X1-THD) | |
| 10. | 8T-4971M | [2] | BOLT(M6X1X30-MM) | |
| M | METRIC PART | |||
