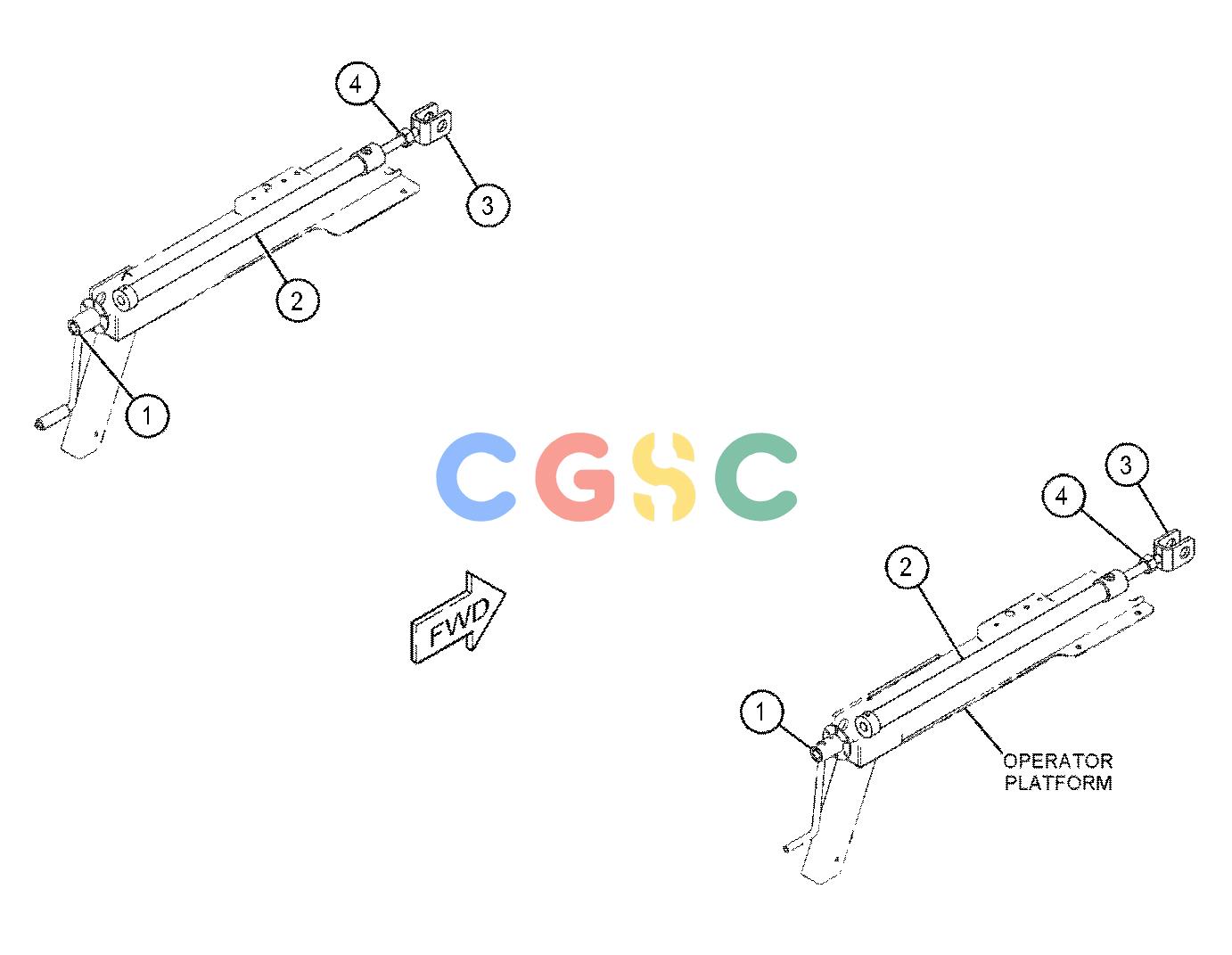

卡特零件查询（SE50） 398-3159: CONTROL GP-THICKNESS
广数供应链运营团队, 18 02月, 2025，浏览：
1017 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8488 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 3P-8680 | [4] | CUP-BEARING | |
| 3. | 279-6482 | [4] | SPACER(38X21X20-MM THK) | |
| 4. | 333-1704 | [2] | SHAFT | |
| 5. | 394-3893 | [2] | BLOCK-BEARING | |
| 6. | 431-1472 | [2] | PLATE | |
| 7. | 431-1963 | [2] | POINTER | |
| 8. | 466-7521 | [2] | TUBE AS | |
| 9. | 448-0602 | [4] | PAD | |
| 10. | 448-0603 | [2] | PIN | |
| 11. | 448-5516 | [2] | ROD AS | |
| 12. | 1J-8136 | [2] | PIN-SPRING | |
| 13. | 3P-8681 | [4] | CONE-BEARING | |
| 15. | 6V-7676M | [2] | NUT(M24X3-THD) | |
| 16. | 7X-7729 | [6] | WASHER(11X25X3-MM THK) | |
| 17. | 8T-4136M | [6] | BOLT(M10X1.5X25-MM) | |
| 18. | 8T-5460M | [4] | BOLT(M20X2.5X40-MM) | |
| 19. | 9M-1975 | [2] | RING-RETAINING | |
| 20. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| | M | | METRIC PART |
