卡特零件查询（SE50） 390-4768: SLOPER GP-POWER
广数供应链运营团队, 18 02月, 2025，浏览：
422 次

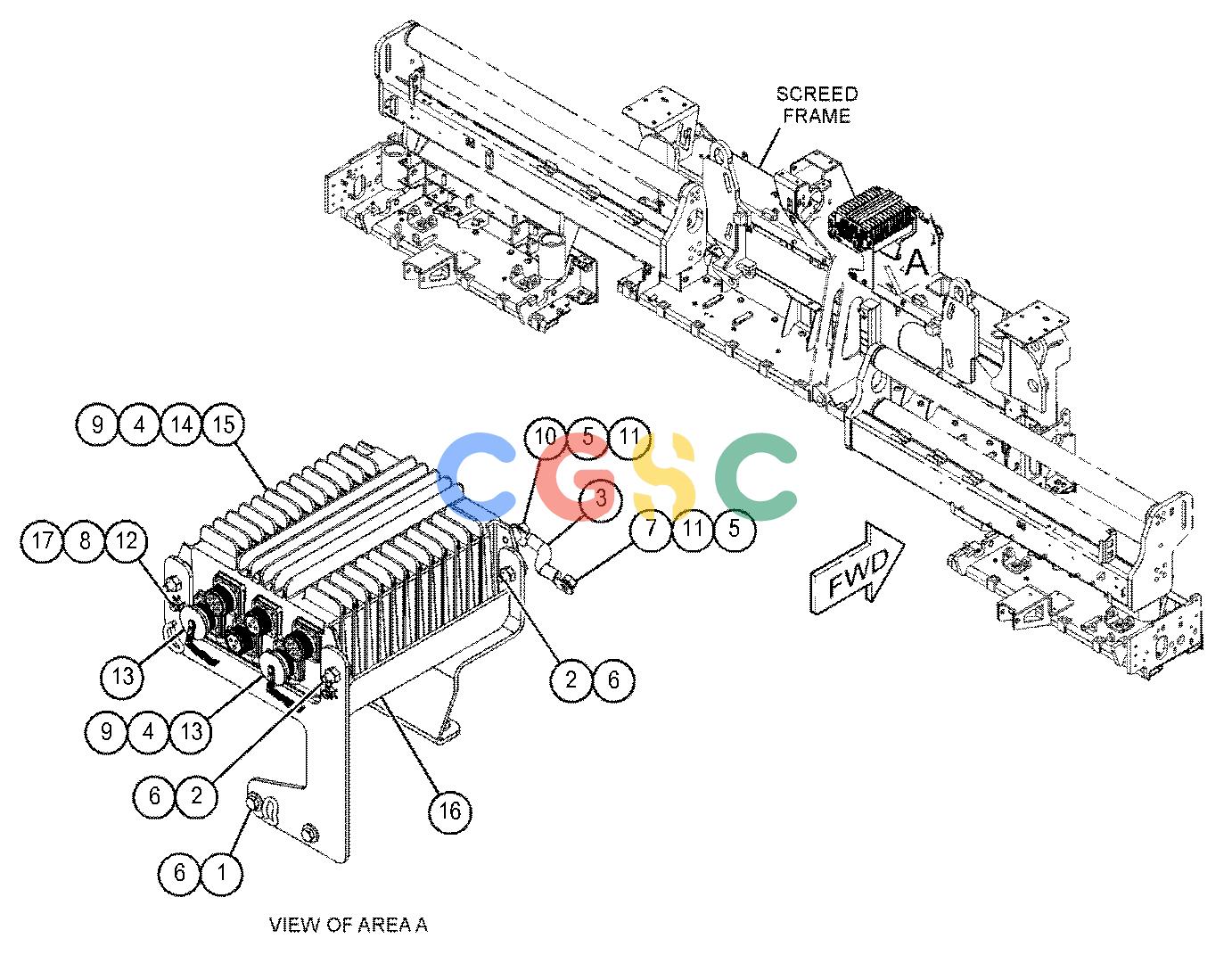

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9B-0143 | [2] | LOCKWASHER | |
| 2. | 394-5234 | [2] | JACK GP-HEIGHT ADJUSTER | |
| 3. | 398-7433 | [1] | SUPPORT AS(RH) | |
| 4. | 398-7434 | [1] | SUPPORT AS(LH) | |
| | | | (EACH SUPPORT AS INCLUDES) |
| | 355-8941M | [4] | NUT-WELD(M16X2-THD) | |
| 5. | 399-5120 | [1] | BOX(RH) | |
| 6. | 399-5121 | [1] | BOX(LH) | |
| 7. | 416-7942 | [2] | CLEVIS | |
| 8. | 416-7944 | [2] | PIN AS-PIVOT | |
| 9. | 416-7947 | [2] | PIVOT | |
| 10. | 457-8959 | [4] | BUSHING | |
| 11. | 457-8960 | [4] | BUSHING | |
| 12. | 421-3184 | [4] | RING-RETAINING | |
| 13. | 421-4006 | [4] | RING-RETAINING | |
| 14. | 423-0907 | [4] | SPACER(21.5X38.1X29-MM THK) | |
| 15. | 425-3516 | [2] | PIN | |
| 16. | 425-9252 | [2] | COUPLING AS | |
| 17. | 425-9253 | [2] | COUPLING AS | |
| | | | (EACH COUPLING AS INCLUDES) |
| | 5J-3182 | [1] | SETSCREW-HEX SOCKET | |
| 18. | 425-9254 | [2] | SPIDER | |
| 19. | 444-8037 | [2] | STOP | |
| 20. | 1D-6306 | [2] | NUT(1-8-THD) | |
| 21. | 5P-5813 | [4] | LOCKNUT-BEARING(2.75X18-THD) | |
| 22. | 5P-8837 | [2] | LOCK PIN | |
| 23. | 7X-0510 | [4] | WASHER-HARD(15.5X29X3-MM THK) | |
| 24. | 7X-2555M | [2] | BOLT(M16X2X80-MM) | |
| 25. | 7X-2581M | [4] | BOLT(M30X3.5X100-MM) | |
| 26. | 8C-6854M | [4] | BOLT(M14X2X50-MM) | |
| 27. | 8C-8722M | [4] | NUT(M30X3.5-THD) | |
| 28. | 8T-0389M | [2] | LOCKNUT(M10X1.5-THD) | |
| 29. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 30. | 8T-4132M | [2] | NUT(M16X2-THD) | |
| 31. | 8T-4193M | [8] | BOLT(M16X2X50-MM) | |
| 32. | 8T-5005M | [2] | BOLT(M10X1.5X70-MM) | |
| 33. | 8T-6430M | [4] | BOLT(M20X2.5X50-MM) | |
| 34. | 9X-8257 | [8] | WASHER(17.5X30X3.5-MM THK) | |
| 35. | 9X-8258 | [4] | WASHER(33X56X6-MM THK) | |
| | M | | METRIC PART |
