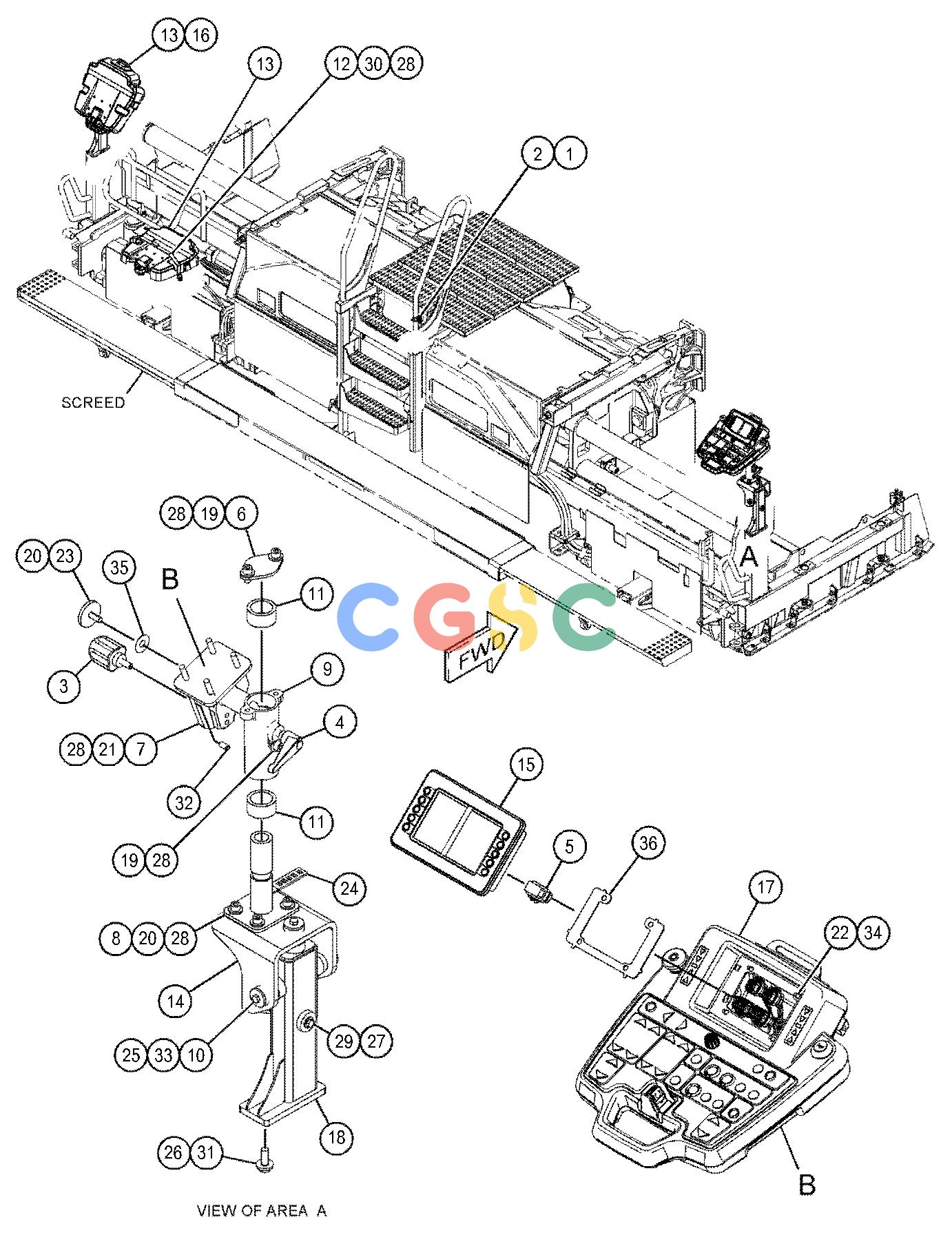

卡特零件查询（SE50） 474-7995: CONTROL & MTG GP-SCREED
广数供应链运营团队, 18 02月, 2025，浏览：
353 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-8500 | [2] | KEY | |
| 2. | 7K-1181 | [1] | STRAP-CABLE | |
| 3. | 211-4942 | [2] | KNOB AS | |
| | | | (EACH INCLUDES) |
| | 8T-0277 | [1] | PIN-SPRING | |
| 4. | 320-2845 | [2] | LEVER | |
| 5. | 351-8647 | [2] | PLUG AS-CONNECTOR(12-PIN) | |
| | | | (EACH INCLUDES) |
| | 8T-8737 | [12] | PLUG-SEAL | |
| | 241-8834 | [1] | PLUG AS-CONNECTOR(12-PIN) | |
| | 455-0709 | [1] | SEAL-CONNECTOR | |
| 6. | 393-1230 | [2] | PLATE | |
| 7. | 393-1231 | [2] | TILT AS(CONTROL) | |
| 8. | 395-0582 | [2] | SUPPORT AS | |
| 9. | 398-5181 | [2] | SUPPORT | |
| 10. | 417-2463 | [8] | MOUNT AS | |
| 11. | 420-3062 | [4] | BUSHING | |
| 12. | 425-5918 | [1] | STRAP | |
| 13. | 425-5919 | [2] | COVER GP-ACCESS | |
| | | | (EACH INCLUDES) |
| | 6V-1634 | [9] | RIVET-POP | |
| | 9X-2038 | [2] | WASHER(7X19X2-MM THK) | |
| | 226-0294J | [1] | LOCK AS | |
| | 226-0338 | [1] | CAM | |
| 14. | 439-4407 | [2] | MOUNT AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| 15. | 459-2234 | [2] | MONITOR GP-OPERATOR | |
| 16. | 491-0879Y | [1] | CONTROL GP-SCREED(LH) | |
| 17. | 491-0880Y | [1] | CONTROL GP-SCREED(RH) | |
| 18. | 474-7994 | [2] | SUPPORT AS | |
| 19. | 101-7401M | [6] | BOLT-SOCKET HEAD(M10X1.5X20-MM) | |
| 20. | 101-7404M | [10] | BOLT-SOCKET HEAD(M10X1.5X30-MM) | |
| 21. | 105-3477M | [8] | BOLT-SOCKET HEAD(M10X1.5X45-MM) | |
| 22. | 105-3486M | [8] | BOLT-SOCKET HEAD(M6X1X50-MM) | |
| 23. | 115-6433 | [2] | WASHER(11X50X6-MM THK) | |
| 24. | 352-3970 | [2] | CLIP(LADDER) | |
| 25. | 384-1628 | [8] | WASHER-HARD(8.8X35X4-MM THK) | |
| 26. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 27. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 28. | 7X-7729 | [24] | WASHER(11X25X3-MM THK) | |
| 29. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 30. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 31. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| 32. | 8T-5089 | [4] | PIN-SPRING | |
| 33. | 8T-6912M | [8] | BOLT(M8X1.25X50-MM) | |
| 34. | 9X-8256 | [8] | WASHER(6.6X12X2-MM THK) | |
| 35. | 388-6987B | [2] | SHIM(0.4-MM THK) | |
| 36. | 541-6518 | [2] | PLATE | |
| | B | | USE AS REQUIRED |
| | J | | REQUIRES CORPORATE KEY |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
