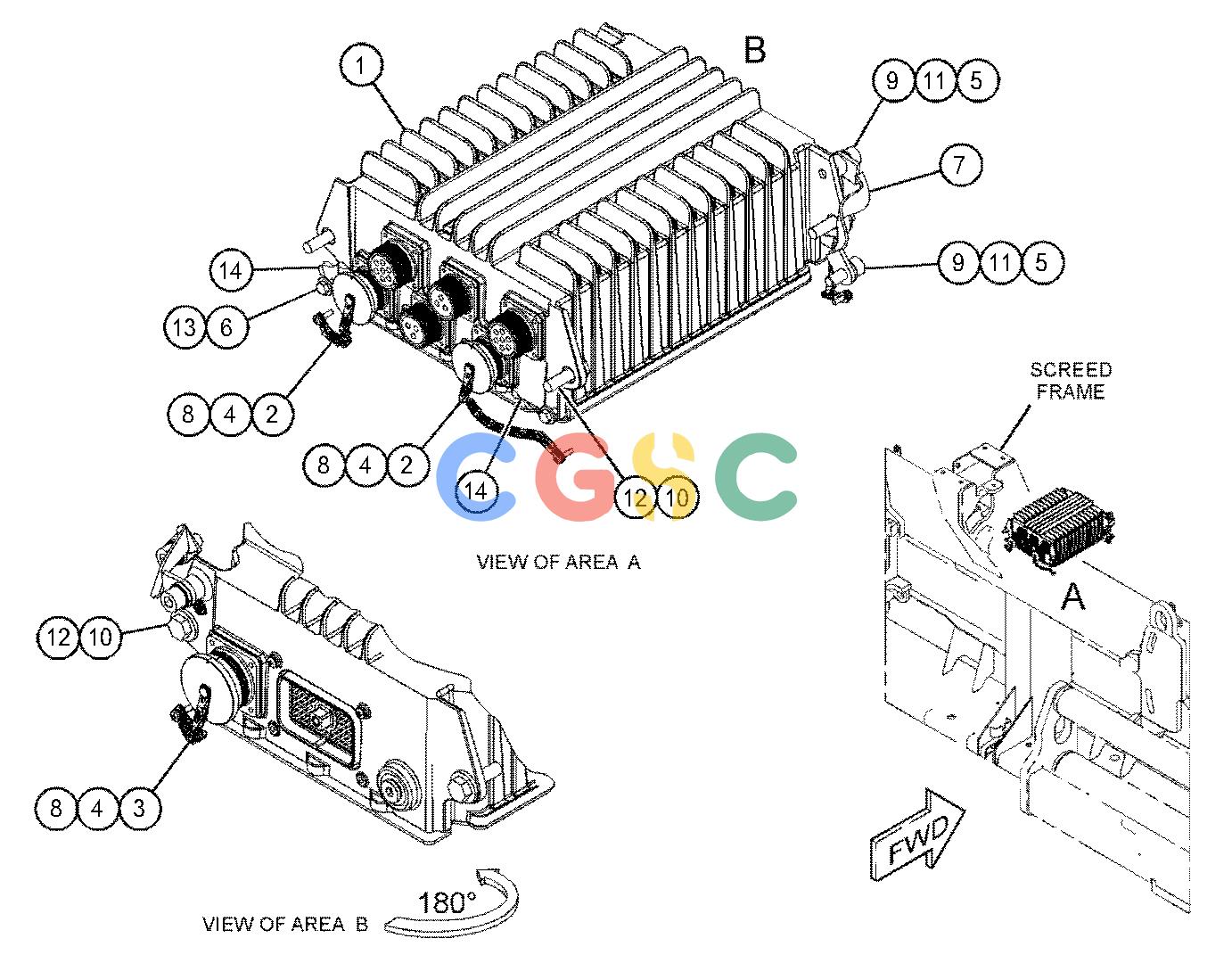

卡特零件查询（SE50） 446-5919: HEATER GP-GATE
广数供应链运营团队, 18 02月, 2025，浏览：
723 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7V-5628 | [2] | PLATE(TOP) | |
| 2. | 156-9338 | [2] | NUT-RING | |
| 3. | 417-2500 | [2] | BRACKET | |
| 4. | 559-5553 | [2] | HEATER AS-SCREED(675-VOLT, 884-WATT) | |
| 5. | 506-4293 | [1] | COVER(RH) | |
| 6. | 450-6191Y | [2] | HARNESS AS-WIRING(FOLDING) | |
| 7. | 469-1708 | [2] | HOLD-DOWN AS | |
| | | | (EACH INCLUDES) |
| | 3E-4353 | [3] | WASHER-HARD(11X25X3-MM THK) | |
| 8. | 453-2447 | [1] | COVER(RH) | |
| 9. | 453-2448 | [1] | COVER(LH) | |
| 10. | 560-0639 | [2] | COVER | |
| 11. | 453-2450 | [4] | COVER | |
| 12. | 097-7827 | [2] | SPACER(13.5X20X18-MM THK) | |
| 13. | 099-3649M | [2] | BOLT(M8X1.25X40-MM) | |
| 14. | 204-2281 | [2] | STRAP-CABLE | |
| 15. | 327-0325 | [4] | STRAP-CABLE | |
| 16. | 344-5675M | [12] | NUT(M10X1.5-THD) | |
| 17. | 381-2621 | [2] | MOUNTING-CABLE TIE | |
| 18. | 397-9301 | [2] | WASHER-HARD(11.5X20X15-MM THK) | |
| 19. | 4P-7233 | [2] | GROMMET | |
| 20. | 5P-4116 | [12] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 21. | 5P-7462 | [4] | CLIP(SLOT) | |
| 22. | 5P-7463 | [4] | CLIP(TAB) | |
| 23. | 6V-0683 | [4] | GROMMET | |
| 24. | 7R-7908 | [4] | CLAMP | |
| 25. | 8C-8451M | [4] | BOLT(M6X1X40-MM) | |
| 26. | 8C-8560 | [4] | SCREW-LOCK(4-40X0.5-IN) | |
| 27. | 8T-1887 | [2] | CLIP(SLOT) | |
| 28. | 8T-1888 | [2] | CLIP(TAB) | |
| 29. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 30. | 8T-4136M | [16] | BOLT(M10X1.5X25-MM) | |
| 31. | 8T-4139M | [2] | BOLT(M12X1.75X30-MM) | |
| 32. | 8T-4186M | [12] | BOLT(M10X1.5X40-MM) | |
| 33. | 8T-4194M | [2] | BOLT(M12X1.75X50-MM) | |
| 34. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 35. | 8T-4908M | [10] | BOLT(M8X1.25X25-MM) | |
| 36. | 9B-1117 | [4] | LOCKWASHER | |
| 37. | 5P-1275BJ | | LOCKWIRE | |
| 38. | 7K-1181 | [8] | STRAP-CABLE | |
| 39. | 7P-1695 | [4] | WASHER(10.5X19X3-MM THK) | |
| 40. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 41. | 124-7346 | [4] | LOCKWASHER | |
| 43. | 467-5977 | [2] | WIRE AS-GROUND | |
| | | | (EACH INCLUDES) |
| | 2L-8079 | [2] | TERMINAL-RING(14-GA TO 16-GA, 3/8-IN SCREW) | |
| 44. | 506-4294 | [1] | COVER(LH) | |
| | B | | USE AS REQUIRED |
| | J | | ORDER BY THE DECIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
