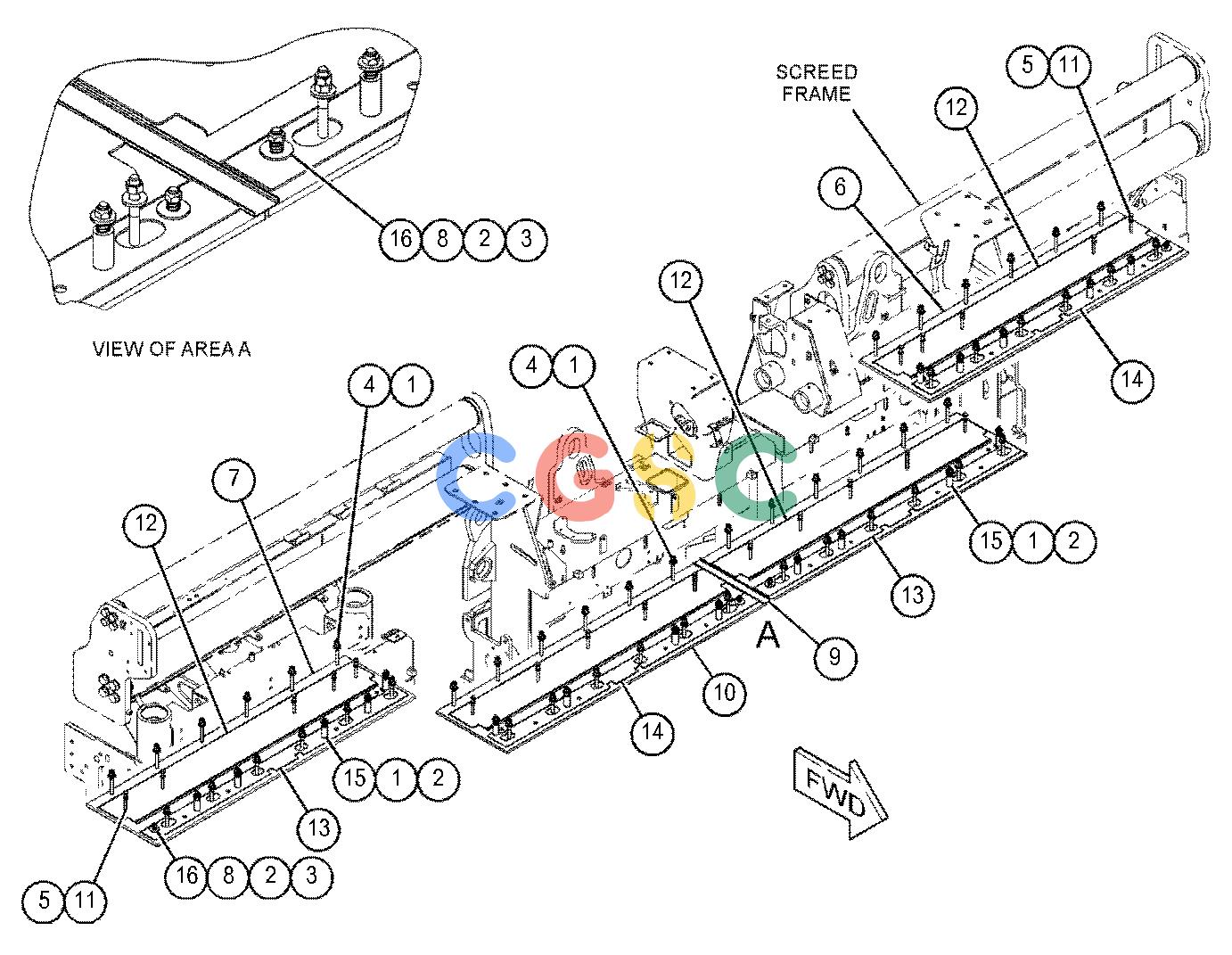

卡特零件查询（SE50） 472-4655: PLATE & HEATER GP-SCREED
广数供应链运营团队, 18 02月, 2025，浏览：
375 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-1076 | [66] | WASHER-HARD(13.5X30X4-MM THK) | |
| 2. | 6V-7687M | [22] | LOCKNUT(M12X1.75-THD) | |
| 3. | 039-8557 | [4] | WASHER(13X26X6-MM THK) | |
| 4. | 329-3356M | [96] | NUT(M12X1.75-THD) | |
| 5. | 344-5675M | [20] | NUT(M10X1.5-THD) | |
| 6. | 393-0409 | [1] | PLATE GP-SCREED(EXTENDER, LH) | |
| 7. | 393-0410 | [1] | PLATE GP-SCREED(EXTENDER, RH) | |
| | | | (EACH PLATE GP INCLUDES) |
| | 350-7866M | [1] | STUD(M12X1.75X58-MM) | |
| | 419-4908M | [6] | STUD(M12X1.75X135-MM) | |
| | 448-9445M | [11] | STUD(M12X1.75X115-MM) | |
| 8. | 468-7390 | [22] | SPRING | |
| 9. | 517-2138 | [1] | PLATE-SEAL | |
| 10. | 518-5143C | [1] | PLATE GP-SCREED(MAIN) | |
| | 510-8260 | [1] | PLATE AS-SCREED(MAIN, RH) | |
| | 510-8261 | [1] | PLATE AS-SCREED(MAIN, LH) | |
| | | | (EACH PLATE AS INCLUDES) |
| | 350-7866M | [1] | STUD(M12X1.75X58-MM) | |
| | 419-4908M | [6] | STUD(M12X1.75X135-MM) | |
| | 448-9445M | [10] | STUD(M12X1.75X115-MM) | |
| 11. | 272-2351M | [20] | BOLT(M10X1.5X80-MM) | |
| 12. | 553-0223 | [4] | PLATE AS-CLAMP | |
| | | | (EACH INCLUDES) |
| | 9X-8268 | [9] | WASHER(17.5X30X3.5-MM THK) | |
| 13. | 553-0224C | [2] | PLATE-CLAMP | |
| 14. | 553-0229C | [2] | PLATE-CLAMP | |
| 15. | 553-1180 | [18] | TUBE | |
| 16. | 8T-4821 | [4] | WASHER(13.5X40X3-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
