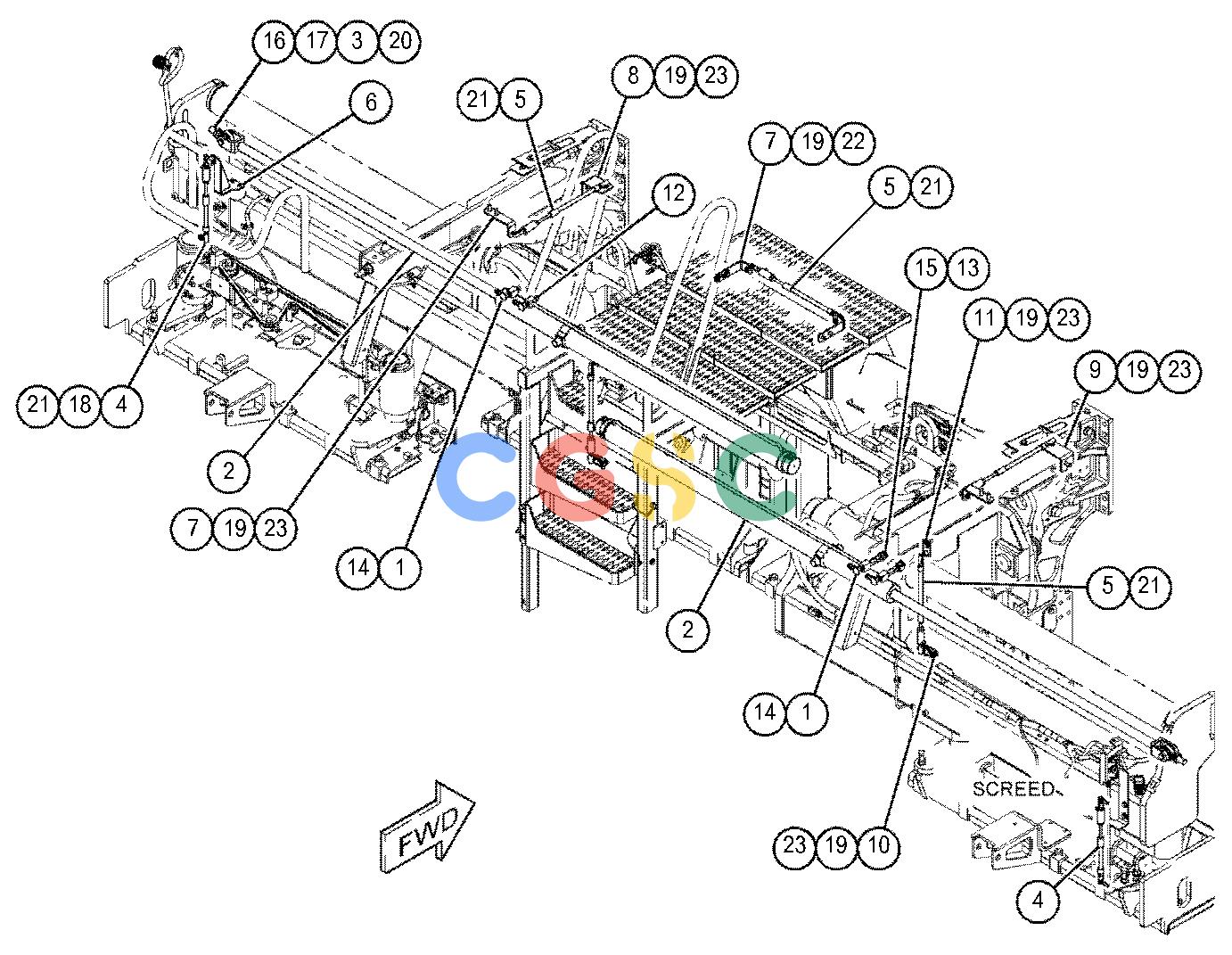

卡特零件查询（SE50） 457-7730: CYL & MTG GP-SCREED EXTENSION
广数供应链运营团队, 18 02月, 2025，浏览：
1027 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [4] | CAP-DUST | |
| 2. | 415-2889J | [2] | CYLINDER GP-HYDRAULIC | |
| | | | (EACH INCLUDES) |
| | 6L-7138 | [4] | SCREW(8-32X0.31-IN) | |
| 3. | 416-4827 | [2] | PIN-CLEVIS | |
| 4. | 450-0989 | [2] | SENSOR GP-POSITION(REAR) | |
| 5. | 450-0990 | [5] | SENSOR GP-POSITION(FRONT) | |
| 6. | 457-8956 | [1] | BRACKET AS | |
| | 5G-6973M | [1] | LUG(M10X1.5-THD) | |
| 7. | 459-3913 | [4] | BRACKET AS | |
| 8. | 459-4826 | [1] | BRACKET AS | |
| 9. | 459-4827 | [1] | BRACKET AS | |
| 10. | 459-4828 | [2] | BRACKET AS | |
| | | | (EACH BRACKET AS INCLUDES) |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 11. | 463-1083 | [2] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 9R-2613M | [1] | BOSS-WELD(M10X1.5X25-MM) | |
| 12. | 148-8336 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8636 | [1] | CONNECTOR | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 13. | 148-8367 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-9850 | [1] | ELBOW | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 14. | 164-5567 | [4] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 15. | 164-9869 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 9X-2297 | | CONNECTOR | |
| 16. | 253-3746 | [2] | ROD END | |
| 17. | 287-2499M | [2] | NUT(M24X2-THD) | |
| 18. | 344-5675M | [1] | NUT(M10X1.5-THD) | |
| 19. | 5P-1076 | [16] | WASHER-HARD(13.5X30X4-MM THK) | |
| 20. | 6K-8162 | [2] | RING-RETAINING | |
| 21. | 8T-4121 | [10] | WASHER-HARD(11X21X2.5-MM THK) | |
| 22. | 8T-4179M | [4] | BOLT(M12X1.75X20-MM) | |
| 23. | 8T-4956M | [12] | BOLT(M12X1.75X35-MM) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 450-4472J | [1] | KIT-SEAL | |
| | | | (INCLUDES WIPER SEAL,U CUP-SEAL, O-RING SEALS, BACKUP RING, PISTON SEAL & WEAR RINGS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
