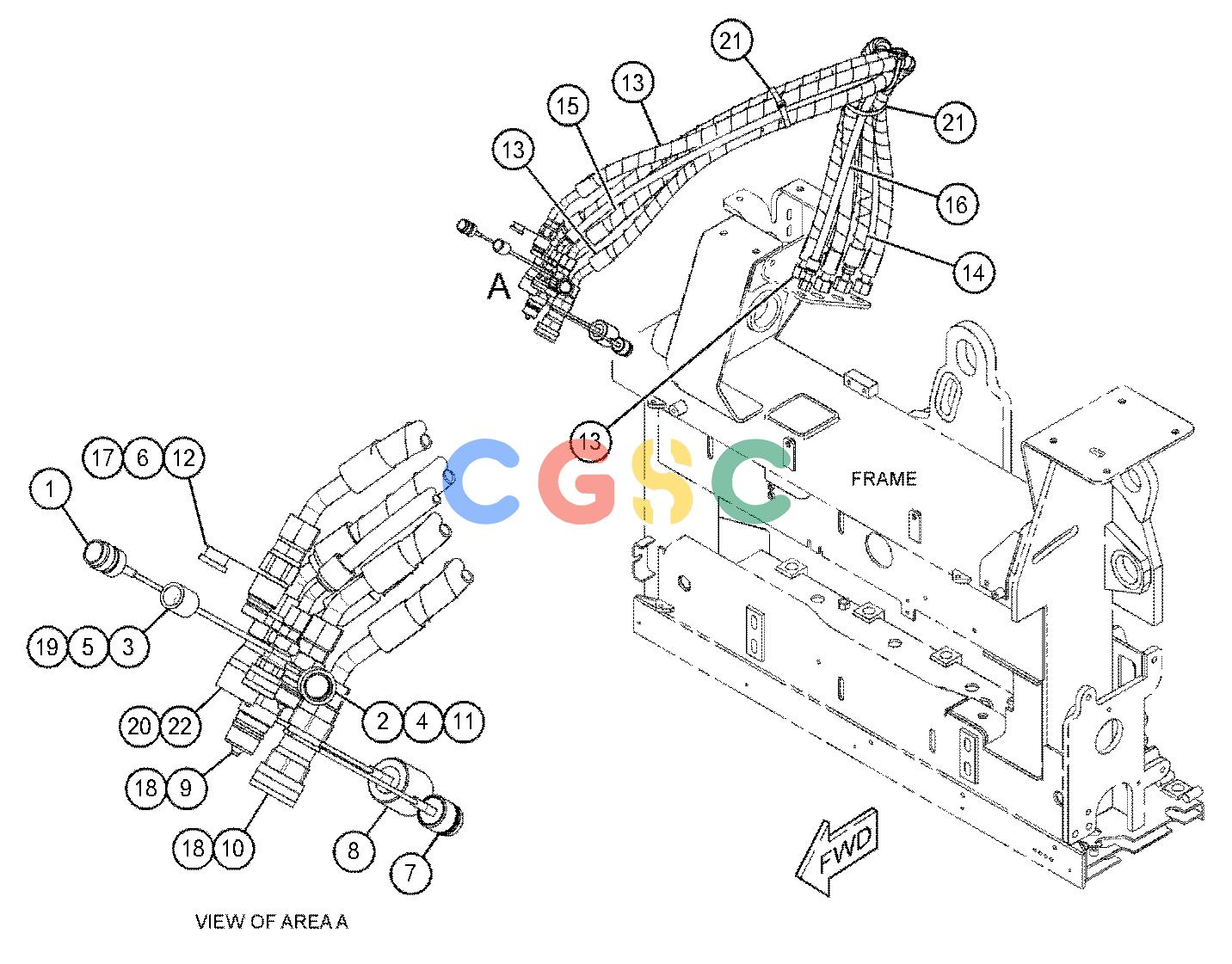

卡特零件查询（SE50） 390-4799: LINES GP-HYDRAULIC
广数供应链运营团队, 18 02月, 2025，浏览：
138 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5R-5718 | [1] | PLUG-DUST | |
| 2. | 5R-5719 | [1] | CAP-DUST | |
| 3. | 5R-6301 | [1] | PLUG-DUST | |
| 4. | 5R-6305 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| 5. | 5R-6307 | [1] | COUPLER AS-QUICK DISCONNECT(FEMALE) | |
| | 1H-8171 | [1] | SEAL-O-RING | |
| | 5R-6859 | [1] | RETAINER | |
| 6. | 142-8948 | [1] | FITTING AS(QUICK DISCONNECT, MALE) | |
| 7. | 165-5694 | [1] | PLUG-DUST | |
| 8. | 165-5695 | [1] | CAP-DUST | |
| 9. | 173-7638J | [1] | FITTING AS | |
| 10. | 173-7639J | [1] | COUPLING GP | |
| 11. | 175-0447 | [1] | VALVE AS-CHECK | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 12. | 187-5174 | [1] | CAP-DUST | |
| 13. | 450-0303I | [3] | HOSE AS | |
| 14. | 450-0304I | [1] | HOSE AS | |
| 15. | 450-0305I | [1] | HOSE AS | |
| 16. | 466-9775I | [1] | HOSE AS | |
| 17. | 148-8327 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 18. | 148-8339 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8716 | [1] | CONNECTOR(STRAIGHT) | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 19. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 20. | 148-8341 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8713 | [1] | CONNECTOR | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 21. | 204-2281 | [3] | STRAP-CABLE | |
| 22. | 5R-6304 | [1] | COUPLER AS-QUICK DISCONNECT(FEMALE) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 191-6944J | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS) |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
