卡特零件查询（SE50） 390-4943: ARM GP-DROP
广数供应链运营团队, 18 02月, 2025，浏览：
965 次

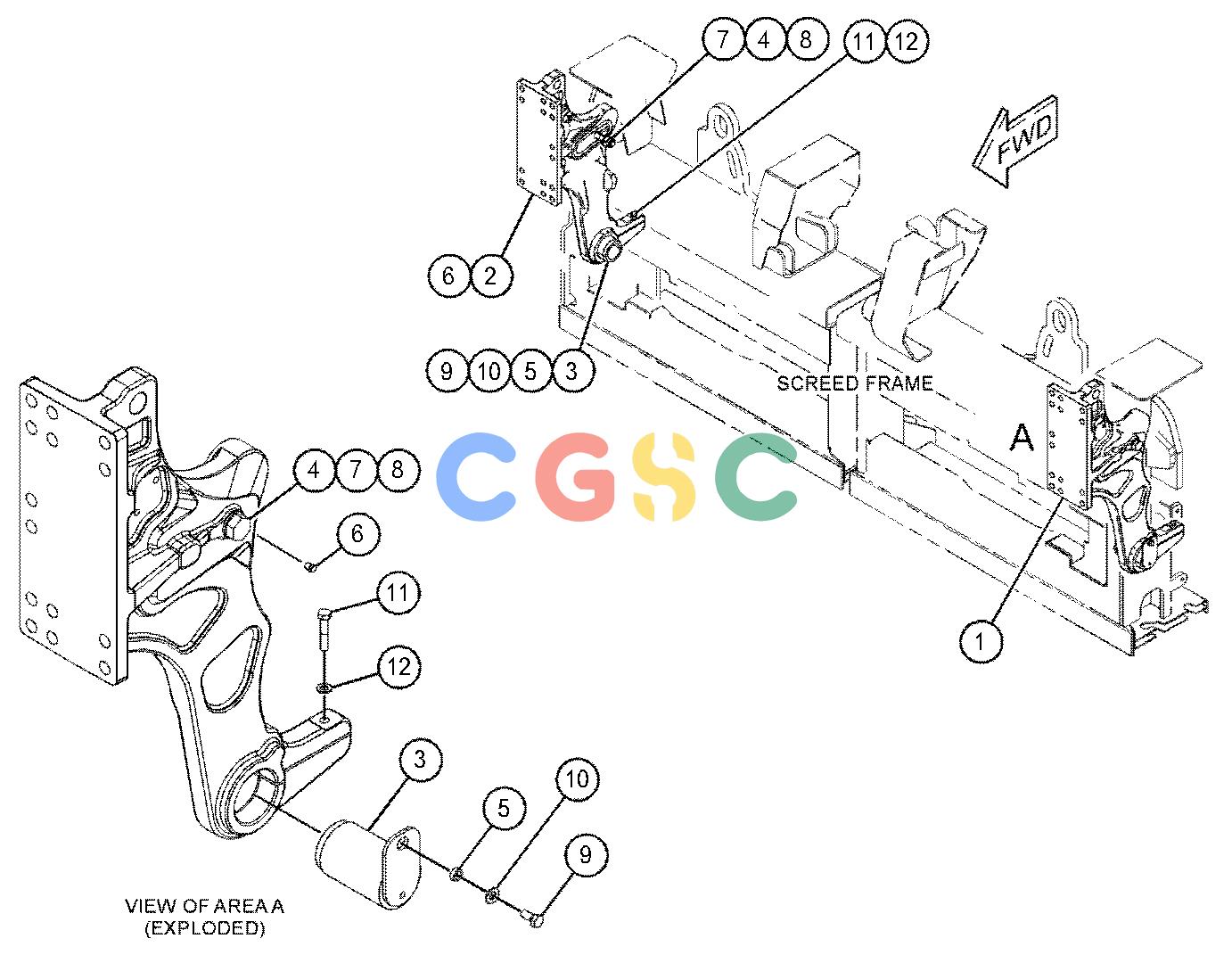

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 398-1264 | [1] | ARM-DROP(LH) | |
| 2. | 398-1265 | [1] | ARM-DROP(RH) | |
| 3. | 457-9219 | [2] | PIN AS | |
| 4. | 116-2434M | [2] | BOLT(M24X3X170-MM) | |
| 5. | 227-7474 | [2] | SPACER(13X20X7-MM THK) | |
| 6. | 5M-6214 | [2] | PLUG(1/8-27 PTF) | |
| 7. | 6V-7676M | [2] | NUT(M24X3-THD) | |
| 8. | 8T-4167 | [4] | WASHER-HARD(26X44X4-MM THK) | |
| 9. | 8T-4192M | [2] | BOLT(M12X1.75X25-MM) | |
| 10. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 11. | 8T-4910M | [2] | BOLT(M12X1.75X60-MM) | |
| 12. | 8T-5360 | [2] | WASHER(12X22.5X2.5-MM THK) | |
| | M | | METRIC PART |
