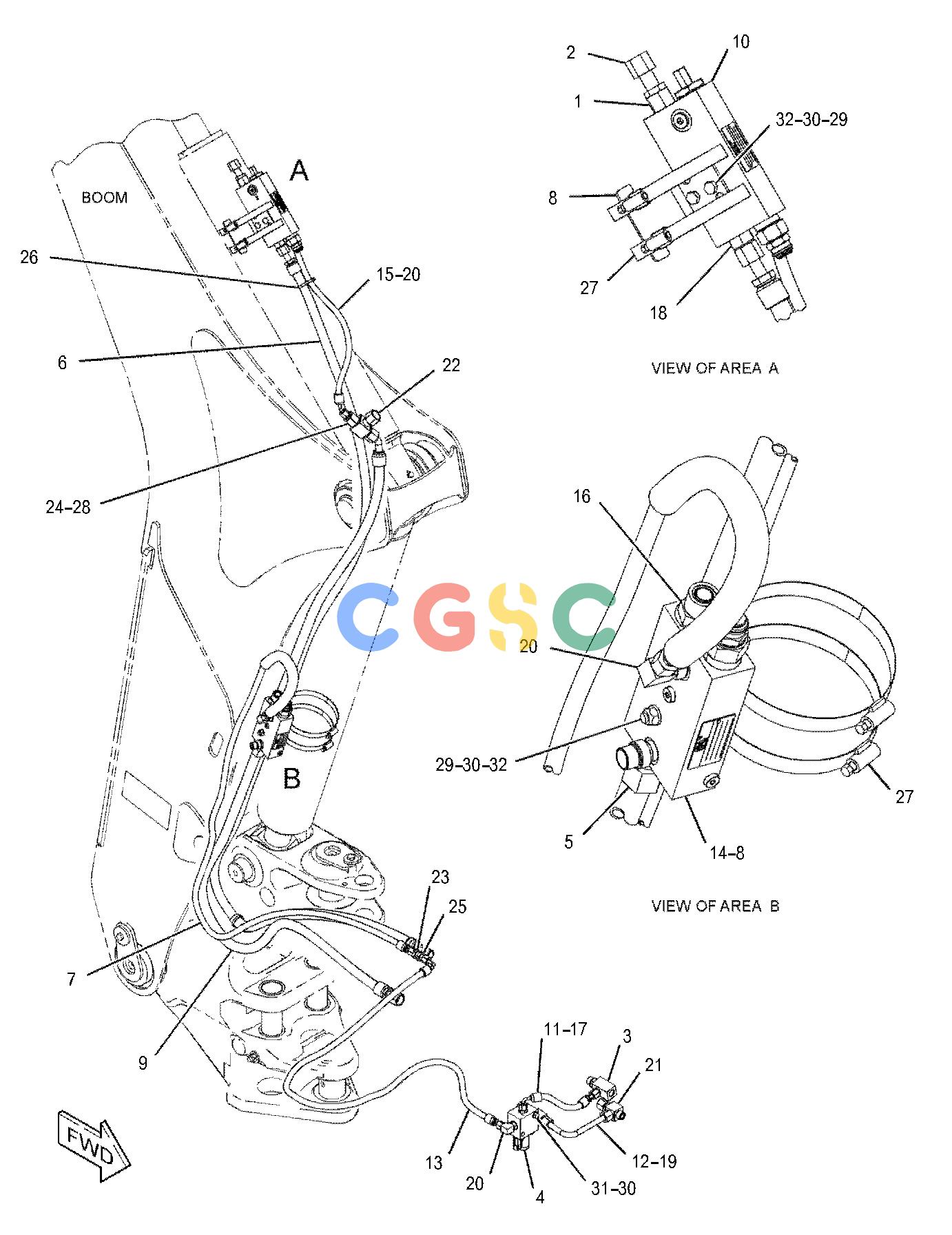

卡特零件查询（434F2） 422-3547: LINES GP-LOAD CONTROL VALVE
广数供应链运营团队, 18 02月, 2025，浏览：
814 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 161-9916 | [1] | ADAPTER AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-7420 | [1] | ADAPTER | |
| 2. | 250-1440 | [1] | ADAPTER AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 7X-3164 | [1] | ADAPTER-SWIVEL | |
| 3. | 268-1600 | [1] | TEE AS | |
| | 033-6028 | [1] | SEAL-O-RING | |
| | 228-7089 | [1] | SEAL-O-RING | |
| | 268-1599 | [1] | TEE AS | |
| 4. | 274-8048Y | [1] | VALVE & MTG GP-SOLENOID(DIFFERENTIAL LOCK) | |
| 5. | 302-1413 | [1] | ADAPTER AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 7X-3165 | [1] | ADAPTER | |
| 6. | 329-4508I | [1] | HOSE AS | |
| 7. | 339-2886I | [1] | HOSE AS | |
| 8. | 339-4287 | [2] | BRACKET | |
| 9. | 343-4301I | [1] | HOSE AS | |
| 10. | 421-5432 | [1] | VALVE GP-LOAD CONTROL(STICK) | |
| 11. | 422-4323I | [1] | HOSE AS | |
| 12. | 422-4377 | [1] | TUBE AS | |
| 13. | 422-6422I | [1] | HOSE AS | |
| 14. | 437-2839 | [1] | VALVE GP-LOAD CONTROL(BOOM) | |
| 15. | 439-9924I | [1] | HOSE AS | |
| 16. | 148-8315 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8642 | [1] | CONNECTOR | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 17. | 148-8325 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8641 | [1] | CONNECTOR | |
| 18. | 148-8345 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8638 | [1] | CONNECTOR | |
| 19. | 148-8365 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-6876 | [1] | ELBOW | |
| 20. | 148-8368 | [3] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8627 | [1] | ELBOW | |
| 21. | 148-8444 | [1] | TEE AS-SWIVEL | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9837 | [1] | TEE-SWIVEL | |
| 22. | 150-4031 | [1] | TEE AS | |
| | 6V-9845 | [1] | TEE-SWIVEL | |
| | 7J-9108 | [2] | SEAL-O-RING | |
| 23. | 150-4052 | [1] | UNION AS | |
| | 4J-5477 | [2] | SEAL-O-RING | |
| | 6V-8993 | [1] | UNION | |
| 24. | 215-3191 | [1] | REDUCER AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8937 | [1] | REDUCER | |
| 25. | 2P-1279 | [1] | LOCKNUT(9/16-18-THD) | |
| 26. | 3S-2093 | [1] | STRAP-CABLE | |
| 27. | 5P-0599 | [4] | CLAMP-BAND | |
| 28. | 9X-6581 | [1] | NUT-O-RING SEAL(1-14-THD) | |
| 29. | 6V-9189M | [3] | LOCKNUT(M8X1.25-THD) | |
| 30. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 31. | 8T-6869M | [1] | BOLT(M8X1.25X60-MM) | |
| 32. | 8T-7329M | [3] | BOLT(M8X1.25X55-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
